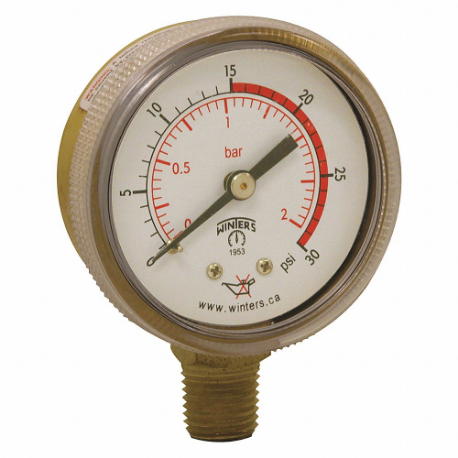

WINTERS INSTRUMENTS PWL2720 Welding Regulator Pressure Gauge, Non-Sparking, Brass, 0 to 30 psi, 2 Inch Dial, Bottom
Item: CV3TLEModel: PWL2720Cross Ref: 491D43
7 In Stock
Ships within 2 days via
10.00% off
€19.12 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | ±3-2-3% |
| Accuracy Grade | ASME B40.100 Grade B |
| Accuracy Scale | Mid Scale |
| Adjustable Pointer | No |
| Ambient Operating Temperature Range | -40°F to +150°F |
| Ambient Temp. Range | -40°F to +150°F |
| Application | Beverage Dispensing Regulators, Down Stream Side Of Regulator, High Pressure Side Of Cylinder Gases, Other Pressurized Tanks, Welding Tank Regulators Or Manifolds |
| Bezel Material | Polished Brass |
| Bezel Mounting Type | Threaded |
| Blowout Safety Back | No |
| Burst Pressure | 4000 psi |
| Calibration Certificate Included | No |
| Case Color | Gold |
| Case Depth | 1.14" |
| Case Dia. | 2 1/4" |
| Case Diameter | 2.25" |
| Case Finish | Polished |
| Case Material | Brass |
| Cleaned For Oxygen Service | No |
| Compatible Process Media | Bronze |
| Connection Location | Bottom |
| Dial Color | White |
| Dial Face Material | Aluminum |
| Features | Non Sparking Materials |
| For Use With | Media Compatible With Bronze |
| Freeze Resistant Movement | No |
| Gauge Case Color | Gold |
| Gauge Case Material | Brass |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/4" |
| Gauge Nominal Dial Size | 2" |
| Gauge Primary Range Units | Psi |
| Gauge Socket Material | Brass |
| Hazardous Location Rating | Not Rated |
| Includes Mounting Hardware | No |
| Ip Rating, Nema Rating | IP52 |
| Ip/nema Rating | NEMA IP52 |
| Lens Material | Polycarbonate |
| Liquid Filled | No |
| Manufacturer Warranty Length | 5 yrs. |
| Mfr. Series | PWL |
| Mounting Hardware Included | No |
| Mounting Type | Stem Mount |
| Movement Material | Brass |
| Nominal Dial Size | 2" |
| Non-sparking | Yes |
| Over-pressure Limit | 25% |
| Panel-mountable | No |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure Gauge Type | Welding Regulator Gauge |
| Pressure Range Type | Pressure |
| Primary Pressure Range | 0 psi to 30 psi |
| Primary Scale Minor Graduations | 1, 10 |
| Primary Scale Numeric Increments | 5, 50 |
| Primary Scale Units | Psi |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Process Temperature Range | -40°F to +150°F |
| Range | 0 psi to 30 psi |
| Removable Bezel | Yes |
| Scale Type | Dual |
| Secondary Pressure Range | 0 kPa to 200 kPa |
| Secondary Pressure Scale Color | Red |
| Secondary Scale Units | Kpa |
| Sensor Material | Phosphor Bronze |
| Sensor Type | Bourdon Tube |
| Series | PWL Series |
| Socket Material | Brass |
| Wetted Parts Material | Brass, Phosphor Bronze |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 2.9 |
| Ship length (cm) | 5.72 |
| Ship width (cm) | 5.72 |
| Country of Origin | CN |
Product Variants
| Product | Model | Secondary Pressure Range | Primary Scale Minor Graduations | Primary Scale Numeric Increments | Range | Primary Pressure Range | Pressure Gauge Type | Pressure Range Type | Nominal Dial Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PWL2723 | 0 kPa to 1100 kPa | 10, 100 | 20, 200 | 0 psi to 160 psi | 0 to 160 | Welding Regulator Gauge | Pressure | 2" | €21.25 | |
 |

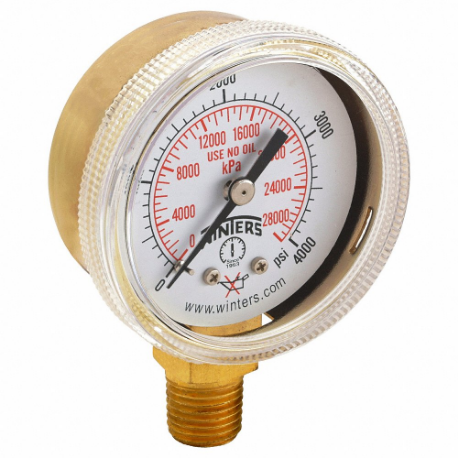

PWL2732 | 0 kPa to 28000 kPa | 500, 1000 | 1000, 5000 | 0 psi to 4000 psi | 0 psi to 4000 psi | Welding Regulator Gauge | Pressure | 2" | €21.25 | |
|
PWL2721 | 0 kPa to 410 kPa | 5, 50 | 10, 100 | 0 psi to 60 psi | 0 psi to 60 psi | Welding Regulator Gauge | Pressure | 2" | €21.25 | |
 |

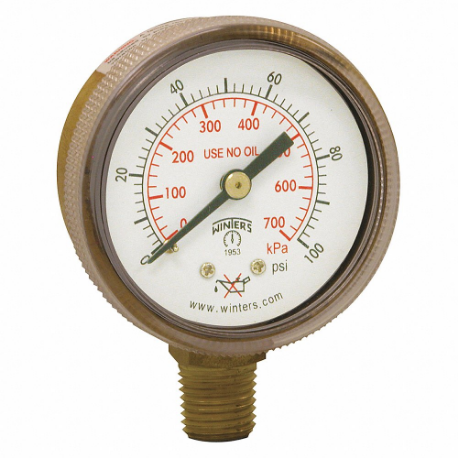

PWL2722 | 0 kPa to 690 kPa | 10, 50 | 20, 100 | 0 psi to 100 psi | 0 psi to 100 psi | Welding Regulator Gauge | Pressure | 2" | €21.25 | |
 |

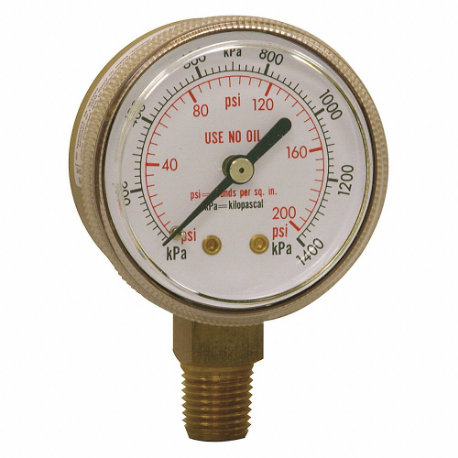

PWL2724 | 0 kPa to 1380 kPa | 10, 100 | 50, 200 | 0 psi to 200 psi | 0 psi to 200 psi | Welding Regulator Gauge | Pressure | 2" | €21.25 | |
 |

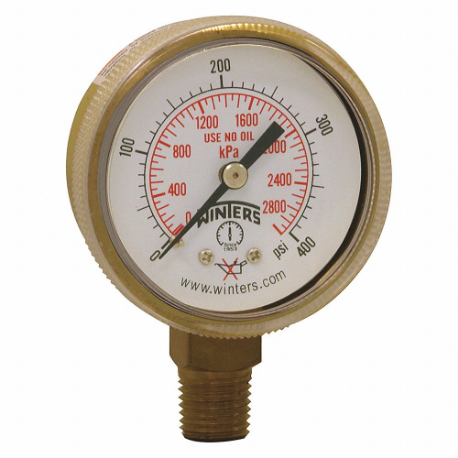

PWL2726 | 0 kPa to 2800 kPa | 50, 100 | 100, 500 | 0 psi to 400 psi | 0 psi to 400 psi | Welding Regulator Gauge | Pressure | 2" | €21.25 | |
|
PWL2727 | 0 kPa to 4140 kPa | 50, 500 | 100, 1000 | 0 psi to 600 psi | 0 psi to 600 psi | Welding Regulator Gauge | Pressure | 2" | €21.25 |
