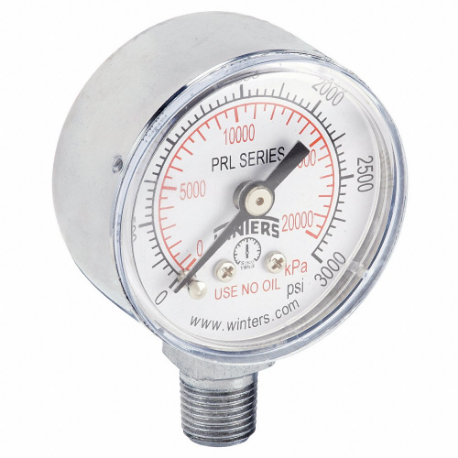

WINTERS INSTRUMENTS PRL038 High-Pressure Compressor Gauge, 0 To 3000 PSI, 1 1/2 Inch Dial, 1/8 Inch Npt Male, Prl
Item: CV3RMFModel: PRL038Cross Ref: 491F33
7 In Stock
Ships within 2 days via
10.00% off
€49.08 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Gauge |
| Accuracy | -2.5% to +2.5% |
| Accuracy Grade | Not Graded |
| Accuracy Scale | Full Scale |
| Adjustable Pointer | No |
| Ambient Operating Temperature Range | -40°F to +150°F |
| Ambient Temp. Range | -40°F to +150°F |
| Application | Actuators, Regulators And Respirators, Valves |
| Blowout Safety Back | No |
| Calibration Certificate Included | No |
| Case Color | Metallic |
| Case Construction | Welded Joint |
| Case Depth | 1" |
| Case Dia. | 1.653" |
| Case Grade | Grade 304 |
| Case Material | Stainless Steel |
| Cleaned For Oxygen Service | No |
| Compatible Process Media | 316L Stainless Steel |
| Connection Location | Center Back |
| Dial Color | White |
| Dial Face Material | Aluminum |
| Features | Small Diameter |
| For Use With | Media Compatible With 316L Stainless Steel |
| Freeze Resistant Movement | No |
| Gauge Case Material | Stainless Steel |
| Gauge Case Material Grade | Grade 304 |
| Gauge Connection Location | Center Back |
| Gauge Connection Size | 1/8" |
| Gauge Nominal Dial Size | 1 1/2" |
| Gauge Primary Range Units | Psi |
| Gauge Special Options | Heavy Duty |
| Hazardous Location Rating | Not Rated |
| Includes Mounting Hardware | No |
| Ip Rating, Nema Rating | IP52 |
| Ip/nema Rating | NEMA IP52 |
| Lens Material | Acrylic |
| Liquid Filled | No |
| Manufacturer Warranty Length | 5 yrs. |
| Material Grade | Grade 316L |
| Mfr. Series | PRL |
| Mounting Hardware Included | No |
| Mounting Type | Stem Mount |
| Movement Material | Stainless Steel |
| Movement Material Grade | Grade 304 |
| Nominal Dial Size | 1 1/2" |
| Non-sparking | No |
| Over-pressure Limit | 25% |
| Panel-mountable | No |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure Gauge Type | High Pressure Compressor Gauge |
| Pressure Range Type | Pressure |
| Primary Pressure Scale Color | Black |
| Primary Range | 0 to 3000 |
| Primary Scale Minor Graduations | 100, 1000 |
| Primary Scale Numeric Increments | 500, 4000 |
| Primary Scale Units | Psi |
| Primary Units | psi |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/8" |
| Process Connection Type | NPT |
| Process Temperature Range | -40°F to +150°F |
| Range | 0 psi to 3000 psi |
| Scale Type | Dual |
| Secondary Pressure Scale Color | Red |
| Secondary Scale Units | Kpa |
| Sensor Grade | Grade 316L |
| Sensor Material | Stainless Steel |
| Sensor Type | Bourdon Tube |
| Series | PRL Series |
| Socket Grade | Grade 316 |
| Socket Material | Stainless Steel |
| Wetted Materials | Stainless Steel |
| Wetted Parts Grade | Grade 316L |
| Wetted Parts Material | Stainless Steel |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 4.2 |
| Ship width (cm) | 4.2 |
| Country of Origin | CN |
