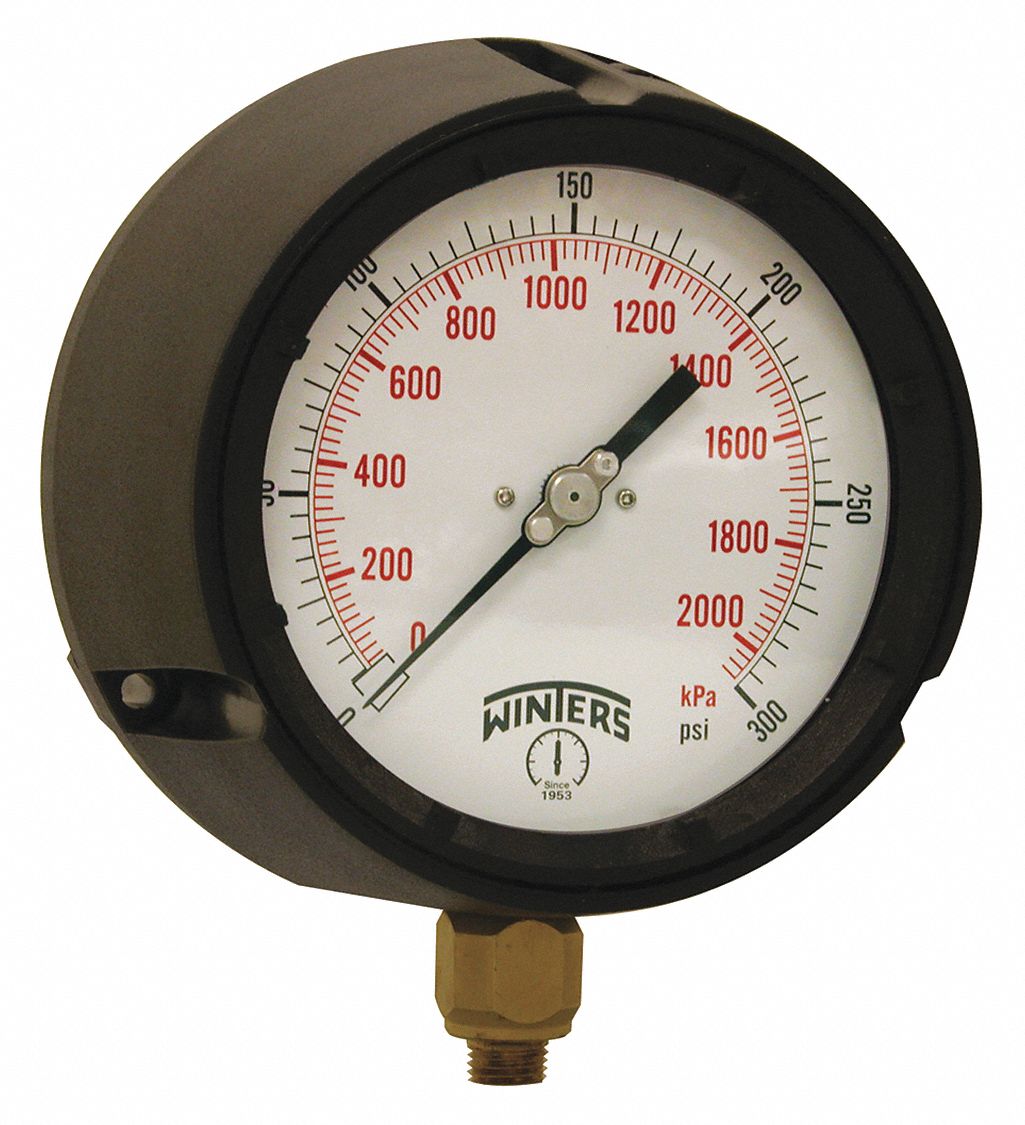

WINTERS INSTRUMENTS PPC5087-G-SG. Pressure Gauge, 0 To 300 Psi Range, 1/4 MNPT, +/-0.5% Gauge Accuracy
Item: CH6RFBModel: PPC5087-G-SG.Cross Ref: 491D21
7 In Stock
Ships within 2 days via
5.00% off
€331.87 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | -0.5% to +0.5% |
| Accuracy Scale | Full Scale |
| Bezel Material | Phenolic |
| Blowout Safety Back | Yes |
| Bolt Circle Dia. | 5.39" |
| Calibration Certificate Included | No |
| Case Color | Black |
| Case Depth | 3 2/5" |
| Case Dia. | 5.835" |
| Cleaned For Oxygen Service | No |
| Connection Location | Bottom |
| Dial Face Material | Aluminum |
| Features | Pressure Relief Back, Solid Front |
| Field Fillable | No |
| For Use With | Brass, Industrial Applications, Media Compatible With Copper Alloy |
| Freeze Resistant Movement | No |
| Gauge Case Color | Black |
| Gauge Case Liquid | Glycerin |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/4" |
| Gauge Filled With | Glycerin |
| Gauge Nominal Dial Size | 4 1/2" |
| Gauge Primary Range Units | Psi |
| Gauge Socket Material | Brass |
| Gauge Special Options | Heavy Duty |
| Hazardous Location Rating | Not Rated |
| Included Vent Plug | No |
| Lens Material | Safety Glass |
| Liquid Filled | Yes |
| Liquid-filled Case | Yes |
| Mounting Hardware Included | No |
| Nominal Dial Size | 4 1/2" |
| Non Sparking | No |
| Operating Temp. | -4°F to +150°F |
| Panel-mountable | No |
| Pointer Characteristics | Micrometer Adjustable |
| Pointer Material | Aluminum |
| Pressure Type | Pressure |
| Primary Scale Units | PSI |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Range | 0 psi to 300 psi |
| Removable Bezel | No |
| Scale Type | Dual |
| Secondary Scale Units | Kpa |
| Sensor Material | Phosphor Bronze |
| Sensor Type | Bourdon Tube |
Shipping Info:
| Ship weight (kg) | 1.66 |
| Ship height (cm) | 8.64 |
| Ship length (cm) | 14.82 |
| Ship width (cm) | 14.82 |
| Country of Origin | CN |
Product Variants
| Product | Model | Lens Material | Case Color | Case Material | Sensor Material | Socket Material | Nominal Dial Size | Process Connection Size | Process Connection Location | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PCT322LF | Acrylic | Silver | Metal | Bronze | Brass | - | - | - | €55.71 | |
 |
PCT323LF | Acrylic | Silver | Metal | Bronze | Brass | - | - | - | €55.71 | |
 |
PCT324LF | Acrylic | Silver | Metal | Bronze | Brass | - | - | - | €55.71 | |
 |
PCT325LF | Acrylic | Silver | Metal | Bronze | Brass | - | - | - | €55.71 | |
 |
PCT326LF | Acrylic | Silver | Metal | Bronze | Brass | - | - | - | €55.71 | |
 |
PETM213LF | Acrylic | Black | Steel | Phosphor Bronze | Lead Free Brass | 2 1/2" | 3/4" | Top | €41.92 | |
|
PETM217LF | Acrylic | Black | Steel | Phosphor Bronze | Lead Free Brass | 2 1/2" | 3/4" | Top | €41.92 |
