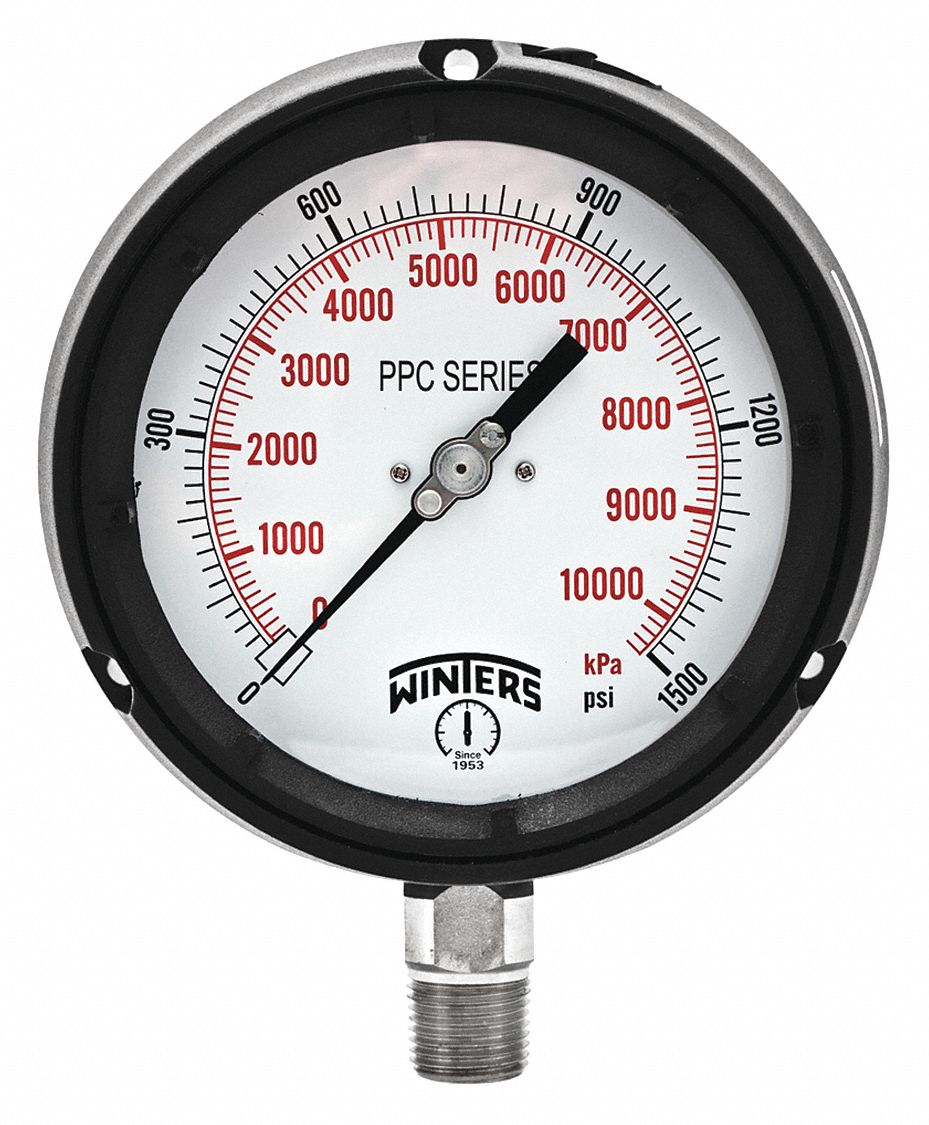

WINTERS INSTRUMENTS PPC5071G-SG45 Pressure Gauge, 0 To 1500 Psi Range, 1/2 MNPT, +/-0.5% Gauge Accuracy
Item: CH6REVModel: PPC5071G-SG45Cross Ref: 491D35
7 In Stock
Ships within 2 days via
10.00% off
€314.39 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | +/-0.5% |
| Accuracy Grade | ASME B40.100 Grade 2A |
| Accuracy Scale | Full Scale |
| Ambient Operating Temperature Range | -4°F to +150°F |
| Application | Chemical Industries, Highly Corrosive, Oil And Gas Industry, Power Industries, Process Industries |
| Bezel Gasket Material | Silicone |
| Bezel Material | Phenolic |
| Blowout Safety Back | Yes |
| Bolt Circle Diameter | 5.39" |
| Case Color | Black |
| Case Construction | Solid Wall |
| Case Depth | 3.4" |
| Case Diameter | 5.835" |
| Case Material | Phenolic |
| Cleaned For Oxygen Service | No |
| Compatible Process Media | Chemicals, Highly Corrosive Media, Petroleum Products |
| Dial Color | White |
| Dial Face Color | White |
| Dial Face Material | Aluminum |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade 2A Process |
| Gauge Case Liquid | Glycerin |
| Gauge Case Material | Phenolic |
| Gauge Wetted Parts | Stainless Steel |
| Hazardous Location Rating | Not Rated |
| Includes Calibration Certificate | No |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| Ip/nema Rating | Nema Ip65 |
| Lens Material | Safety Glass |
| Lens Material - Gauge | Safety Glass |
| Liquid-filled Case | Yes |
| Manufacturer Warranty Length | 5 yrs. |
| Material Grade | Grade 316L |
| Mounting Type | Stem Mount |
| Movement Material | Stainless Steel |
| Movement Material Grade | Grade 304 |
| Movement Type | Rotary |
| Nominal Dial Size | 4 1/2" |
| Non-sparking | No |
| Operating Temp. Range | -4°F to +150°F |
| Over-pressure Limit | 25% |
| Panel Mount Characteristics | 3 0.240 In Dia Holes On 5.390 In Dia Bolt Circle |
| Panel-mountable | No |
| Pointer Characteristics | Micrometer Adjustable |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure Gauge Type | Process Pressure Gauge |
| Pressure Range | 0 psi to 1500 psi |
| Pressure Range Type | Pressure |
| Primary Pressure Range | 0 psi to 1500 psi |
| Primary Scale Minor Graduations | 100, 500 |
| Primary Scale Numeric Increments | 300, 1000 |
| Primary Scale Units | Psi |
| Process Connection | 1/2" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/2" |
| Process Connection Type | NPT |
| Process Temperature Range | -40°F to +250°F |
| Removable Bezel | No |
| Scale Type | Dual |
| Secondary Pressure Range | 0 to 10000 |
| Secondary Scale Units | Kpa |
| Sensor Material | 316L Stainless Steel |
| Sensor Type | Bourdon Tube |
| Series | PPC Series |
| Socket Material | 316L Stainless Steel |
| Vibration Resistance | Liquid Filled |
| Warranty | 5 yrs. |
| Wetted Parts Material | Stainless Steel |
Shipping Info:
| Ship weight (kg) | 1.69 |
| Ship height (cm) | 8.64 |
| Ship length (cm) | 14.82 |
| Ship width (cm) | 14.82 |
| Country of Origin | CN |
Product Variants
| Product | Model | Nominal Dial Size | Process Connection Location | Panel-mountable | Pressure Range | Mounting Type | Pointer Color | Vibration Resistance | Lens Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PCT322LF | - | - | - | - | - | - | - | Acrylic | €55.71 | |
 |
PCT323LF | - | - | - | - | - | - | - | Acrylic | €55.71 | |
 |
PCT324LF | - | - | - | - | - | - | - | Acrylic | €55.71 | |
 |
PCT325LF | - | - | - | - | - | - | - | Acrylic | €55.71 | |
 |
PCT326LF | - | - | - | - | - | - | - | Acrylic | €55.71 | |
 |
PETM213LF | 2 1/2" | Top | - | 0 psi to 160 psi | - | - | - | Acrylic | €41.92 | |
|
PETM217LF | 2 1/2" | Top | - | 0 psi to 300 psi | - | - | - | Acrylic | €41.92 |
