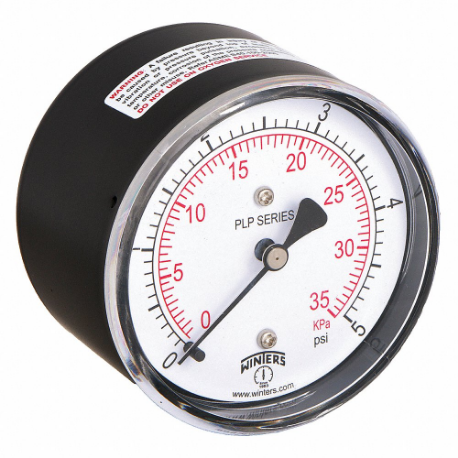

WINTERS INSTRUMENTS PLP344 Low Pressure Gauge, Natural Gas & Other Gases, 0 To 5 PSI, 2 1/2 Inch Dial

Item: CV3RZPModel: PLP344Cross Ref: 48WL81

7 In Stock

Ships within 2 days via

~~€85.84~~

10.00% off

€77.26 /unit

Add To Cart

Request a Quote

Payment

Product Specifications:

Item	Pressure Gauge
Accuracy	±3-2-3%
Accuracy Grade	ASME B40.100 Grade B
Accuracy Scale	Mid Scale
Adjustable Pointer	No
Ambient Operating Temperature Range	-40°F to +150°F, -40°C to +65°C
Ambient Temp. Range	-40°F to +150°F
Application	Air Compressors, Air Filters, Regulators and Respirators, Vacuum Applications
Basic Gauge Case Material	Steel
Basic Gauge Sensor Material	Bronze
Basic Gauge Socket Material	Brass
Bezel Mounting Type	No Bezel
Calibration Certificate Included	No
Case Color	Black
Case Depth	1.9"
Case Dia.	2 5/8"
Case Diameter	2.625"
Case Finish	Painted
Case Material	Steel
Cleaned For Oxygen Service	No
Compatible Process Media	Gas
Connection Location	Center Back
Dial Color	White
Dial Face Material	Aluminum
Dry Dampening Feature	None
Field Fillable	No
For Use With	Air Compressors, Air Filters, Gas Burners, Respirators, Suction Regulators, Vacuum Ovens, Vacuum Pumps
Freeze Resistant Movement	No
Gauge Accuracy Grade	Grade B Commercial
Gauge Application	For Natural Gas and Other Gases
Gauge Case Color	Black
Gauge Case Liquid	None
Gauge Case Material	Steel
Gauge Connection Location	Center Back
Gauge Connection Size	1/4"
Gauge Nominal Dial Size	2 1/2"
Gauge Primary Range Units	Psi
Gauge Socket Material	Brass
Gauge Wetted Parts	Brass, Bronze
Hazardous Location Rating	Not Rated
Includes Mounting Hardware	No
Includes Vent Plug	No
Ip Rating, Nema Rating	IP52
Ip/nema Rating	NEMA IP52
Lens Material	Polycarbonate
Lens Material - Gauge	Plastic
Liquid Filled	No
Liquid-filled Case	No
Manufacturer Warranty Length	5 yrs.
Mfr. Series	PLP
Mounting Hardware Included	No
Mounting Type	Stem Mount
Nominal Dial Size	2 1/2"
Over-pressure Limit	30%
Panel-mountable	No
Pointer Characteristics	Aluminum, Anodized Black
Pointer Color	Black
Pointer Material	Aluminum
Pressure And Vacuum Gauge Type	Pressure Gauge
Pressure Gauge Type	Low Pressure Gauge
Pressure Range	0 psi to 5 psi
Pressure Range Type	Vacuum
Primary Pressure Range	0 psi to 5 psi
Primary Scale Units	Psi
Process Connection	1/4" NPT Male
Process Connection Gender	Male
Process Connection Location	Center Back
Process Connection Size	1/4"
Process Connection Type	NPT
Process Temperature Range	-40°F to +150°F
Removable Bezel	No
Scale Type	Dual
Sensor Material	Phosphor Bronze
Sensor Type	Diaphragm
Series	PLP Series
Socket Material	Brass
Vibration Resistance	None
Wetted Parts Material	Brass, Phosphor Bronze

Shipping Info:

Ship weight (kg)	0.2
Ship height (cm)	4.83
Ship length (cm)	6.67
Ship width (cm)	6.67
Country of Origin	TW

Product Variants

Model	Pressure Range Type	Pressure Range	Process Connection Location	Primary Scale Units	Connection Location	Primary Pressure Range	Range	Secondary Pressure Range	Price
PLP306	Pressure	0 psi to 10 psi	Bottom	Psi	Bottom	0 psi to 10 psi	-	-	€87.38
PLP345	Vacuum	0 psi to 10 psi	Center Back	Psi	Center Back	0 psi to 10 psi	-	-	€85.84
PLP304	Pressure	0 in. wc to 100 in. wc	Bottom	In Wc	Bottom	0 psi to 100 psi	0 in. wc to 100 in. wc	0 kPa to 58 kPa	€81.04
PLP343	Vacuum	0 in. wc to 100 in. wc	Center Back	In Wc	Center Back	0 psi to 100 psi	0 in. wc to 100 in. wc	0 kPa to 58 kPa	€85.84
PLP340	Vacuum	0 in. wc to 15 in. wc	Center Back	In Wc	Center Back	0 psi to 15 psi	0 in. wc to 15 in. wc	0 kPa to 9 kPa	€85.84
PLP346	Vacuum	0 in. wc to 200 in. wc	Center Back	In Wc	Center Back	0 psi to 200 psi	0 in. wc to 200 in. wc	0 kPa to 116 kPa	€85.00
PLP301	Pressure	0 in. wc to 32 in. wc	Bottom	In Wc	Bottom	0 to 32	0 in. wc to 32 in. wc	-	€87.38
