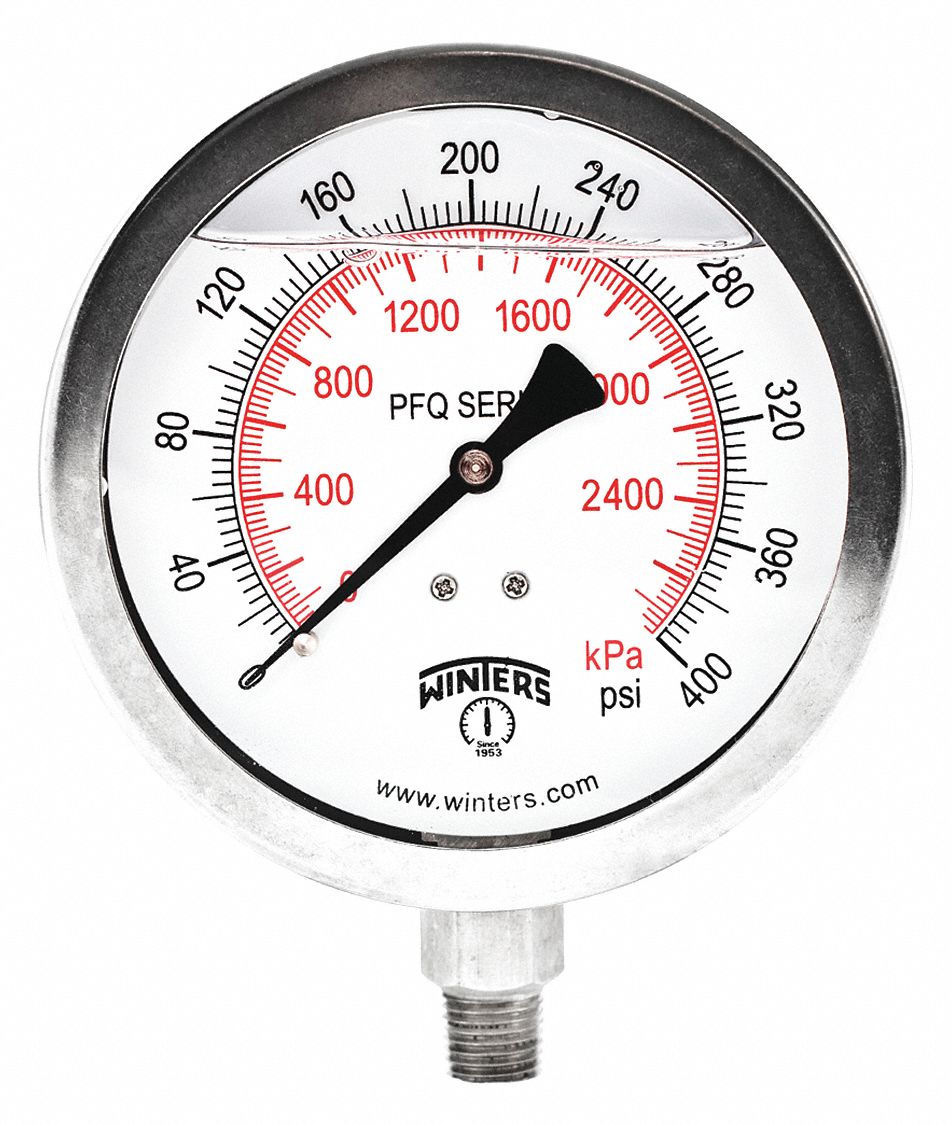

WINTERS INSTRUMENTS PFQ775-DRY Pressure Gauge, 0 To 400 Psi Range, 1/4 Inch MNPT, +/-1.5% Gauge Accuracy
Item: CH6RDDModel: PFQ775-DRYCross Ref: 491F43
7 In Stock
Ships within 2 days via
5.00% off
€85.99 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | -1.5% to +1.5% |
| Accuracy Scale | Full Scale |
| Ambient Operating Temp. | -40°F to +200°F |
| Application | Compressors, Hydraulics, Machinery, Motors, Pneumatics, Pumps |
| Bezel Gasket Material | Silicone |
| Bezel Material | 304 Stainless Steel |
| Bezel Mounting Type | Crimped |
| Blowout Safety Back | No |
| Calibration Certificate Included | No |
| Case Color | Metallic |
| Case Construction | Welded Joint |
| Case Depth | 1.449" |
| Case Dia. | 3.917" |
| Case Material | Stainless Steel |
| Cleaned For Oxygen Service | No |
| Compatible Process Media | Air, Water |
| Connection Location | Bottom |
| Dial Color | White |
| Dial Face Material | Aluminum |
| Dry Dampening Feature | Not Available |
| Features | Ring Terminal |
| Field Fillable | Yes |
| For Use With | Media Compatible With 316L Stainless Steel |
| Freeze Resistant Movement | No |
| Gauge Application | Corrosion Resistant Case |
| Gauge Case Liquid | None |
| Gauge Case Material | Stainless Steel |
| Gauge Case Material Grade | Grade 304 |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/4" |
| Gauge Nominal Dial Size | 4" |
| Gauge Primary Range Units | Psi |
| Gauge Special Options | Heavy Duty |
| Gauge Wetted Parts | Stainless Steel |
| Hazardous Location Rating | Not Rated |
| Included Mounting Hardware | No |
| Included Vent Plug | Yes |
| Ip/nema Rating | Nema Ip65 |
| Lens Material | Polycarbonate |
| Lens Material Gauge | Plastic |
| Liquid Filled | No |
| Liquid-filled Case | No |
| Material Grade | Grade 316L |
| Mounting Hardware Included | No |
| Mounting Type | Stem Mount |
| Movement Material | Stainless Steel |
| Nominal Dial Size | 4" |
| Non Sparking | No |
| Operating Temp. | -40°F to +200°F |
| Over Pressure Limit | 25% |
| Panel-mountable | No |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure | 0 psi to 400 psi |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Range (secondary) | 0 psi to 400 psi |
| Pressure Type | Pressure |
| Primary Pressure | 0 psi to 400 psi |
| Primary Scale Units | PSI |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Process Temp. | -40°F to +200°F |
| Range | 0 psi to 400 psi |
| Removable Bezel | Yes |
| Scale Type | Dual |
| Secondary Scale Units | Kpa |
| Sensor Material | 316L Stainless Steel |
| Sensor Type | Bourdon Tube |
| Series | PFQ Series |
| Socket Material | 316 Stainless Steel |
| Vibration Resistance | Field Fillable |
| Wetted Parts Material | Stainless Steel |
Shipping Info:
| Ship weight (kg) | 0.34 |
| Ship height (cm) | 3.68 |
| Ship length (cm) | 9.95 |
| Ship width (cm) | 9.95 |
| Country of Origin | CN |
Product Variants
| Product | Model | Lens Material | Case Color | Case Material | Sensor Material | Socket Material | Nominal Dial Size | Process Connection Size | Process Connection Location | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PCT322LF | Acrylic | Silver | Metal | Bronze | Brass | - | - | - | €55.71 | |
 |
PCT323LF | Acrylic | Silver | Metal | Bronze | Brass | - | - | - | €55.71 | |
 |
PCT324LF | Acrylic | Silver | Metal | Bronze | Brass | - | - | - | €55.71 | |
 |
PCT325LF | Acrylic | Silver | Metal | Bronze | Brass | - | - | - | €55.71 | |
 |
PCT326LF | Acrylic | Silver | Metal | Bronze | Brass | - | - | - | €55.71 | |
 |
PETM213LF | Acrylic | Black | Steel | Phosphor Bronze | Lead Free Brass | 2 1/2" | 3/4" | Top | €41.92 | |
|
PETM217LF | Acrylic | Black | Steel | Phosphor Bronze | Lead Free Brass | 2 1/2" | 3/4" | Top | €41.92 |
