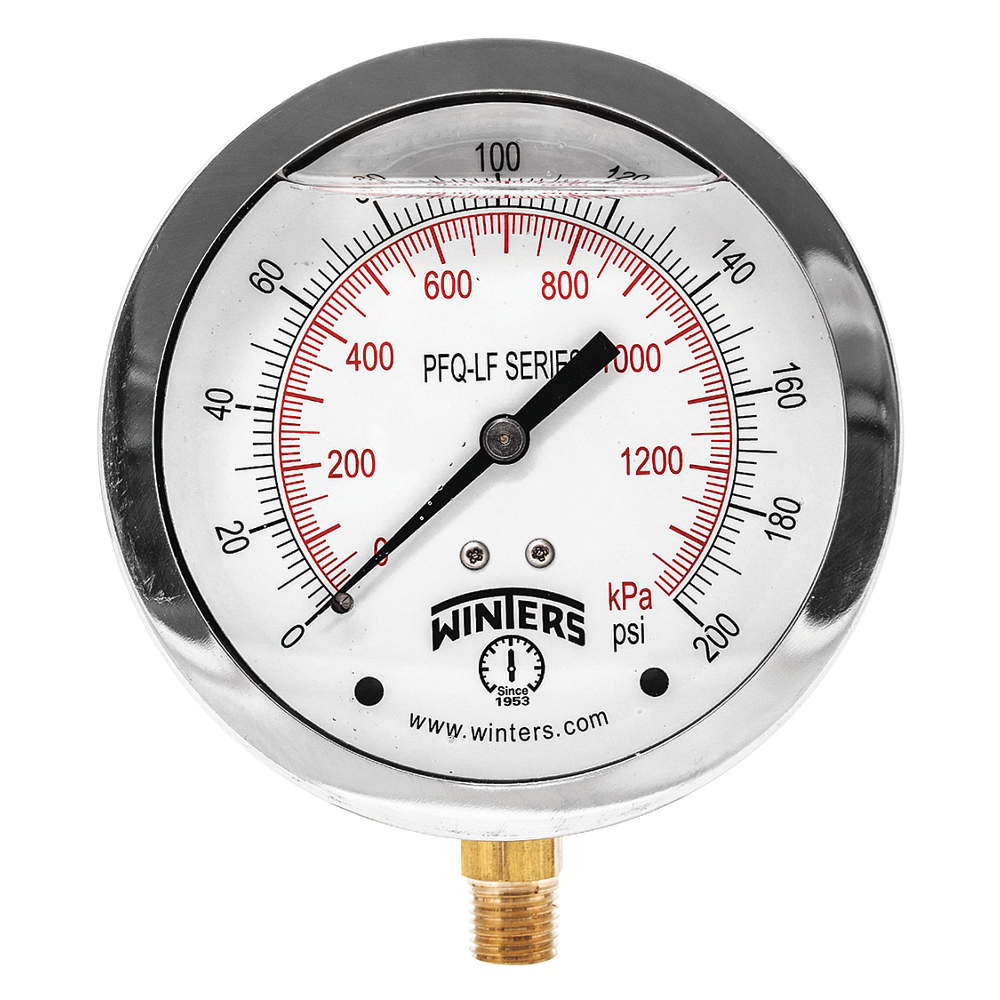

WINTERS INSTRUMENTS PFQ713LF Gauge Pressure 4 inch 0 to 200 psi
Item: AH7HJDModel: PFQ713LFCross Ref: 36TW13
7 In Stock
Ships within 2 days via
5.00% off
€96.22 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | -1.5% to +1.5% |
| Accuracy Scale | Full Scale |
| Ambient Operating Temp. | -4°F to +150°F |
| Application | Compressors, Hydraulics, Machinery, Motors, Pneumatics, Pumps |
| Basic Gauge Case Material | Stainless Steel |
| Basic Gauge Sensor Material | Bronze |
| Basic Gauge Socket Material | Brass |
| Bezel Gasket Material | Silicone |
| Bezel Material | 304 Stainless Steel |
| Bezel Mounting Type | Crimped |
| Blowout Safety Back | No |
| Calibration Certificate | No |
| Calibration Certificate Included | No |
| Case Color | Metallic |
| Case Construction | Welded Joint |
| Case Depth | 1.173" |
| Case Dia. | 3.917" |
| Case Material | Stainless Steel |
| Cleaned For Oxygen Service | No |
| Connection Location | Bottom |
| Connection Size | 1/4" |
| Dial Color | White |
| Dial Face Material | Aluminum |
| Dry Dampening Feature | Not Available |
| Field Fillable | No |
| Filled With | Glycerin |
| For Use With | Ideal For Plumbing, Heating, Air Conditioning, Pumps, Compressors, Pneumatic Equipment |
| Freeze Resistant Movement | No |
| Gauge Case Liquid | Glycerin |
| Gauge Case Material | Stainless Steel |
| Gauge Case Material Grade | Grade 304 |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/4" |
| Gauge Filled With | Glycerin |
| Gauge Nominal Dial Size | 4" |
| Gauge Panel Mountable | No |
| Gauge Primary Range Units | Psi |
| Gauge Socket Material | Brass |
| Gauge Special Options | Restricted Orifice |
| Gauge Type | Restricted Orifice |
| Gauge Wetted Parts | Brass, Bronze |
| Hazardous Location Rating | Not Rated |
| Included Mounting Hardware | No |
| Included Vent Plug | Yes |
| Ip/nema Rating | Nema Ip65 |
| Lens Material | Plastic |
| Lens Material Gauge | Plastic |
| Liquid Filled | Yes |
| Liquid-filled Case | Yes |
| Mounting Hardware Included | No |
| Mounting Type | Stem Mount |
| Movement Material | Lead Free Brass |
| Nominal Dial Size | 4" |
| Non Sparking | No |
| Nsf Certified | Yes |
| Operating Temp. | -4°F to +150°F |
| Over Pressure Limit | 25% |
| Panel-mountable | No |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure | 0 psi to 200 psi |
| Pressure And Vacuum Gauge Type | Pressure Gauge |
| Pressure Gauge Type | Lead Free Pressure Gauge |
| Pressure Type | Pressure |
| Primary Application | Lead Free |
| Primary Pressure | 0 psi to 200 psi |
| Primary Scale Units | PSI |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Process Temp. | -4°F to +150°F |
| Removable Bezel | Yes |
| Required Gauge Adapter | No |
| Scale Type | Dual |
| Secondary Pressure Range | 0 to 1400 |
| Secondary Scale Units | Kpa |
| Sensor Material | Bronze |
| Sensor Material | Phosphor Bronze |
| Sensor Type | Bourdon Tube |
| Series | PFQ-LF Series |
| Socket Material | Lead Free Brass |
| Vibration Resistance | Liquid Filled |
| Wetted Material | Brass, Bronze |
| Wetted Parts Material | Lead Free Brass, Phosphor Bronze |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 2.98 |
| Ship length (cm) | 9.95 |
| Ship width (cm) | 9.95 |
| Country of Origin | CN |
Product Details:
- Gauge Accuracy : +/-1.50%
- Pressure and Vacuum Gauge Type : Pressure Gauge
- Gauge Panel Mountable : No
- Liquid Filled : Yes
- Required Gauge Adapter : No
- Characteristics: Pulsation Resistant, Restricted Orifice, Crimp-On Bezel, CRN Registered
Product Variants
| Product | Model | Pressure | Nominal Dial Size | Primary Pressure | Case Dia. | Case Depth | Gauge Nominal Dial Size | Secondary Pressure Range | Movement Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PFQ803LF | 0 psi to 60 psi | 2 1/2" | 0 psi to 60 psi | 60 mm | 0.97 mm | 2 1/2" | 0 to 410 | Stainless Steel | €52.84 | |
 |
PFQ804LF | 0 psi to 100 psi | 2 1/2" | 0 psi to 100 psi | 60 mm | 0.97 mm | 2 1/2" | 0 to 690 | Stainless Steel | €52.84 | |
 |
PFQ805LF | 0 psi to 160 psi | 2 1/2" | 0 to 160 | 60 mm | 0.97 mm | 2 1/2" | 0 to 1100 | Stainless Steel | €52.84 | |
 |
PFQ806LF | 0 psi to 200 psi | 2 1/2" | 0 psi to 200 psi | 60 mm | 0.97 mm | 2 1/2" | 0 to 1400 | Stainless Steel | €52.84 | |
 |
PFQ807LF | 0 psi to 300 psi | 2 1/2" | 0 psi to 300 psi | 60 mm | 0.97 mm | 2 1/2" | 0 to 2100 | Stainless Steel | €52.84 | |
 |
PFQ708LF | 0 psi to 15 psi | 4" | 0 psi to 15 psi | 3.917" | 1.173" | 4" | 0 psi to 100 psi | Lead Free Brass | €101.29 | |
 |
PFQ709LF | 0 psi to 30 psi | 4" | 0 psi to 30 psi | 3.917" | 1.173" | 4" | 0 psi to 200 psi | Lead Free Brass | €101.29 |
