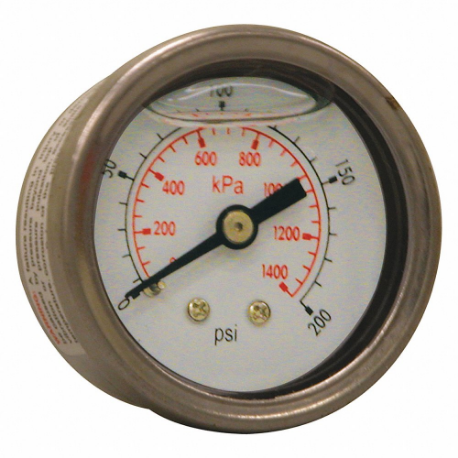

WINTERS INSTRUMENTS PFQ1226 Industrial Pressure Gauge, 0 To 200 Psi, 1 1/2 Inch Dial, 1/8 Inch Npt Male
Item: CV3RRKModel: PFQ1226Cross Ref: 491D77
7 In Stock
Ships within 2 days via
10.00% off
€48.34 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | -2.5% to +2.5% |
| Accuracy Scale | Full Scale |
| Ambient Operating Temperature Range | -4°F to +150°F |
| Ambient Temp. Range | -4°F to +150°F |
| Application | Compressors, Hydraulics, Machinery, Motors, Pneumatics, Pumps |
| Bezel Gasket Material | Silicone |
| Bezel Material | Stainless Steel |
| Bezel Material Grade | Grade 304 |
| Bezel Mounting Type | Crimped |
| Blowout Safety Back | No |
| Calibration Certificate Included | No |
| Case Color | Metallic |
| Case Construction | Welded Joint |
| Case Depth | 0.992" |
| Case Dia. | 1 4/5" |
| Case Diameter | 1.8" |
| Case Grade | Grade 304 |
| Case Material | Stainless Steel |
| Cleaned For Oxygen Service | No |
| Compatible Process Media | Air, Water |
| Connection Location | Center Back |
| Dial Color | White |
| Dial Face Material | Aluminum |
| Dry Dampening Feature | None |
| Features | Ring Terminal |
| Field Fillable | No |
| For Use With | Media Compatible With 316L Stainless Steel |
| Freeze Resistant Movement | No |
| Gauge Application | Corrosion Resistant Case |
| Gauge Case Liquid | Glycerin |
| Gauge Case Material | Stainless Steel |
| Gauge Case Material Grade | Grade 304 |
| Gauge Connection Location | Center Back |
| Gauge Connection Size | 1/8" |
| Gauge Filled With | Glycerin |
| Gauge Nominal Dial Size | 1 1/2" |
| Gauge Primary Range Units | Psi |
| Gauge Special Options | Heavy Duty |
| Gauge Wetted Parts | Stainless Steel |
| Hazardous Location Rating | Not Rated |
| Includes Mounting Hardware | No |
| Includes Vent Plug | Yes |
| Ip Rating, Nema Rating | IP65 |
| Ip/nema Rating | Nema Ip65 |
| Lens Material | Polycarbonate |
| Lens Material - Gauge | Plastic |
| Liquid Filled | Yes |
| Liquid-filled Case | Yes |
| Manufacturer Warranty Length | 5 yrs. |
| Material Grade | Grade 316L |
| Mfr. Series | PFQ |
| Mounting Hardware Included | No |
| Mounting Type | Stem Mount |
| Movement Material | Stainless Steel |
| Nominal Dial Size | 1 1/2" |
| Non-sparking | No |
| Over-pressure Limit | 25% |
| Panel-mountable | No |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Range | 0 psi to 200 psi |
| Pressure Range (secondary) | 0 psi to 200 psi |
| Pressure Range Type | Pressure |
| Primary Pressure Range | 0 psi to 200 psi |
| Primary Scale Units | Psi |
| Process Connection | 1/8" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Center Back |
| Process Connection Size | 1/8" |
| Process Connection Type | NPT |
| Process Temperature Range | -4°F to +150°F |
| Range | 0 psi to 200 psi |
| Removable Bezel | Yes |
| Scale Type | Dual |
| Secondary Pressure Range | 0 kPa to 1400 kPa |
| Secondary Scale Units | Kpa |
| Sensor Grade | Grade 316L |
| Sensor Material | Stainless Steel |
| Sensor Type | Bourdon Tube |
| Series | PFQ Series |
| Socket Grade | Grade 316 |
| Socket Material | Stainless Steel |
| Vibration Resistance | Liquid Filled |
| Wetted Materials | Stainless Steel |
| Wetted Parts Grade | Grade 316L |
| Wetted Parts Material | Stainless Steel |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.52 |
| Ship length (cm) | 4.57 |
| Ship width (cm) | 4.57 |
| Country of Origin | CN |
Product Variants
| Product | Model | Pressure Gauge Type | Pressure Range Type | Process Connection Location | Nominal Dial Size | Vibration Resistance | Pressure Range | Case Color | Socket Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PFQ1262 | Industrial Pressure Gauge | Compound | Center Back | 4" | Liquid Filled | 30 psi to 0 psi to 30 psi | Metallic | Stainless Steel | €102.90 | |
 |
PFQ1262-DRY | Industrial Pressure Gauge | Compound | Center Back | 4" | Field Fillable | - | Metallic | Stainless Steel | €105.40 | |
 |
PFQ149-DRY | Industrial Pressure Gauge | Compound | Bottom | 2 1/2" | Field Fillable | 30 psi to 0 psi to 30 psi | Metallic | Stainless Steel | €52.38 | |
 |
PFQ2201 | Industrial Pressure Gauge | Pressure | Center Back | 2" | Liquid Filled | 0 psi to 1000 psi | Metallic | Stainless Steel | €45.05 | |
 |
PFQ1552 | Industrial Pressure Gauge | Pressure | Center Back | 4" | Liquid Filled | 0 psi to 1000 psi | Metallic | Stainless Steel | €94.52 | |
 |
PFQ1211 | Industrial Pressure Gauge | Pressure | Bottom | 1 1/2" | Liquid Filled | 0 psi to 2000 psi | Metallic | Stainless Steel | €38.81 | |
|
PFQ1554 | Industrial Pressure Gauge | Pressure | Center Back | 4" | Liquid Filled | 0 psi to 2000 psi | Metallic | Stainless Steel | €103.46 |
