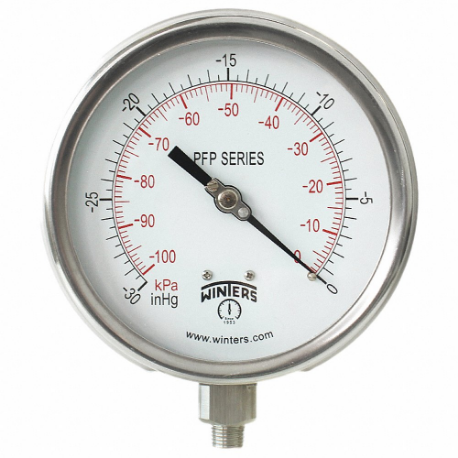

WINTERS INSTRUMENTS PFP700-DRY-45BF Panel-Mount Vacuum Gauge, Back Flange, 30 to 0 Inch Height, 4 1/2 Inch Dial
Item: CV3TQYModel: PFP700-DRY-45BFCross Ref: 491C09
7 In Stock
Ships within 2 days via
5.00% off
€234.10 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Vacuum Gauge |
| Accuracy | ±1.0% |
| Accuracy Grade | ASME B40.100 Grade 1A |
| Accuracy Scale | Full Scale |
| Ambient Operating Temp. | -40°F to +200°F |
| Application | Compressors, Hydraulics, Oil And Gas Industry, Outdoor, Process Conditions, Process Industries, Pumps, Severe Ambient Conditions, Vibration Measurement |
| Bezel Gasket Material | Buna N |
| Bezel Material | Stainless Steel |
| Bezel Material Grade | Grade 304 |
| Bezel Mounting Type | Bayonet |
| Blowout Safety Back | Yes |
| Calibration Certificate Included | No |
| Case Color | Stainless Steel |
| Case Construction | Welded Joint |
| Case Depth | 2.15" |
| Case Grade | Grade 304 |
| Case Material | Stainless Steel |
| Compatible Process Media | Oil |
| Dial Color | White |
| Dial Face Material | Aluminum |
| Dial Size | 4 1/2" |
| Dry Dampening Feature | Not Available |
| Field Fillable | Yes |
| Flange Dia. | 4 1/2" |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade 1A Industrial |
| Gauge Case Liquid | None |
| Gauge Case Material | Stainless Steel |
| Gauge Case Material Grade | Grade 304 |
| Gauge Mounting Type | Back Flange |
| Gauge Wetted Parts | Stainless Steel |
| Hazardous Location Rating | Not Rated |
| Included | Restrictor Screw |
| Included Mounting Hardware | No |
| Included Vent Plug | Yes |
| Ip Rating, Nema Rating | IP66, NEMA 4X |
| Lens Material | Polycarbonate |
| Lens Material Gauge | Plastic |
| Liquid-filled Case | No |
| Mfr. Series | PFP Series |
| Mounting Hardware Included | Yes |
| Mounting Type | Back Flange |
| Movement Material | Stainless Steel |
| Movement Material Grade | Grade 304 |
| Nominal Dial Size | 4 1/2" |
| Non Sparking | No |
| Over Pressure Limit | 25% |
| Panel Mount Characteristics | 3 0.197" Dia Holes On 5.40" Dia Bolt Circle |
| Panel-mountable | Yes |
| Pointer Characteristics | Micrometer Adjustable |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure | 0 in. hg to 30 in. hg |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Type | Vacuum |
| Primary Pressure | -30 psi to 0 psi |
| Primary Scale Minor Graduations | 1, 5 |
| Primary Scale Numeric Increments | 5, 10 |
| Primary Scale Units | in. hg |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Process Temp. | -40°F to +200°F |
| Removable Bezel | Yes |
| Scale Type | Dual |
| Secondary Pressure Range | -101 psi to 0 psi |
| Secondary Scale Units | Kpa |
| Sensor Grade | Grade 316L |
| Sensor Material | 316L Stainless Steel |
| Sensor Type | Bourdon Tube |
| Socket Material | 316L Stainless Steel |
| Vibration Resistance | Field Fillable |
| Wetted Parts Material | Stainless Steel |
Shipping Info:
| Ship weight (kg) | 0.79 |
| Ship height (cm) | 5.46 |
| Ship length (cm) | 12.09 |
| Ship width (cm) | 12.09 |
| Country of Origin | CN |
Product Variants
| Product | Model | Dial Size | Process Connection Location | Nominal Dial Size | Wetted Parts Material | Mounting Type | Compatible Process Media | Mounting Hardware Included | Case Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

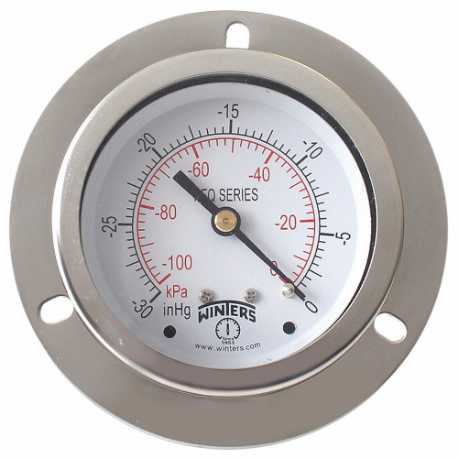

PFQ900-DRY-25FF | 2 1/2" | Center Back | 2 1/2" | Brass OT58 | Front Flange | Air, Water | No | 2.445" | €34.88 |
