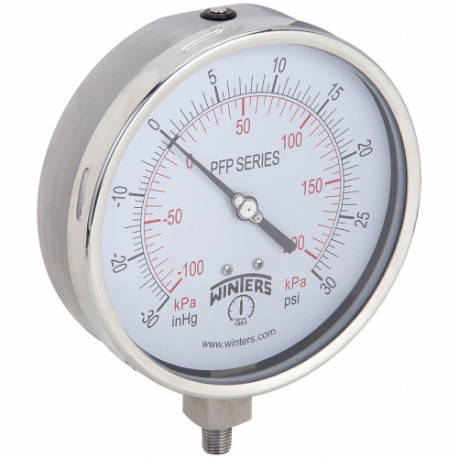

WINTERS INSTRUMENTS PFP1052-DRY Industrial Compound Gauge, 30 To 0 To 30 Inch Hg/Psi, 6 Inch Dial, 1/4 Inch Npt Male, Pfp
Item: CV3TFXModel: PFP1052-DRYCross Ref: 491C32
7 In Stock
Ships within 2 days via
5.00% off
€276.69 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compound Gauge |
| Accuracy | -1% to +1% |
| Accuracy Grade | Grade 1A |
| Accuracy Scale | Full Scale |
| Ambient Temp. | -40°F to +250°F |
| Application | Compressors, Hydraulics, Oil And Gas Industry, Outdoor, Process Conditions, Process Industries, Pumps, Severe Ambient Conditions, Vibration Measurement |
| Bezel Gasket Material | Buna N |
| Bezel Material | Stainless Steel |
| Bezel Material Grade | Grade 304 |
| Bezel Mounting Type | Bayonet |
| Blowout Safety Back | Yes |
| Calibration Certificate Included | No |
| Case Color | Stainless Steel |
| Case Construction | Welded Joint |
| Case Depth | 1.858" |
| Case Dia. | 6.338" |
| Case Grade | Grade 304 |
| Cleaned For Oxygen Service | No |
| Compatible Process Media | Oil |
| Dial Color | White |
| Dial Face Material | Aluminum |
| Dry Dampening Feature | None |
| Field Fillable | Yes |
| Gauge Case Liquid | None |
| Gauge Wetted Parts | Stainless Steel |
| Included | Restrictor Screw |
| Included Mounting Hardware | No |
| Included Vent Plug | No |
| Ip Rating, Nema Rating | IP66, NEMA 4X |
| Liquid-filled Case | No |
| Mfr. Series | PFP Series |
| Mounting Type | Stem Mount |
| Movement Material | Stainless Steel |
| Movement Material Grade | Grade 304 |
| Nominal Dial Size | 6" |
| Non Sparking | No |
| Over Pressure Limit | 25% |
| Panel-mountable | No |
| Pointer Characteristics | Micrometer Adjustable |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure | 30 psi to 0 psi to 30 psi |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Type | Compound |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Process Temp. | -40°F to +250°F |
| Removable Bezel | Yes |
| Scale Type | Dual |
| Secondary Pressure Range | 0 kPa to 210 kPa |
| Secondary Scale Units | Kpa |
| Sensor Grade | Grade 316L |
| Sensor Material | Stainless Steel |
| Socket Grade | Grade 316L |
| Socket Material | Stainless Steel |
| Vibration Resistance | Field Fillable |
| Wetted Material | Stainless Steel |
| Wetted Parts Grade | Grade 316L |
Shipping Info:
| Ship weight (kg) | 0.98 |
| Ship height (cm) | 4.72 |
| Ship length (cm) | 16.1 |
| Ship width (cm) | 16.1 |
| Country of Origin | CN |
Product Variants
| Product | Model | Socket Material | Sensor Material | Nominal Dial Size | Process Connection Size | Case Color | Pressure Type | Gauge Case Liquid | Accuracy Grade | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PFP1054-DRY | Stainless Steel | Stainless Steel | 6" | 1/4" | Stainless Steel | Compound | None | ASME B40.100 Grade 1A | €291.25 | |
 |
PFP1079-DRY | Stainless Steel | Stainless Steel | 6" | 1/4" | Stainless Steel | Compound | None | ASME B40.100 Grade 1A | €291.25 | |
 |
PFP1021WBY | Brass | Phosphor Bronze | 4" | 1/4" | Gray | Compound | Glycerin | ASME B40.100 Grade 1A | €278.59 | |
 |
PFP1021WBYG | Brass | Phosphor Bronze | 4" | 1/4" | Gray | Compound | Glycerin | ASME B40.100 Grade 1A | €278.59 | |
|
PFP1037WBY | Stainless Steel | Stainless Steel | 4" | 1/4" | Gray | Compound | Glycerin | ASME B40.100 Grade 1A | €414.06 | |
|
PFP1037WBYG | Stainless Steel | Stainless Steel | 4" | 1/4" | Gray | Compound | Glycerin | ASME B40.100 Grade 1A | €414.06 | |
|
PFP1052WBYG | Stainless Steel | Stainless Steel | 6" | 1/4" | - | Compound | Glycerin | ASME B40.100 Grade 1A | €704.54 |
