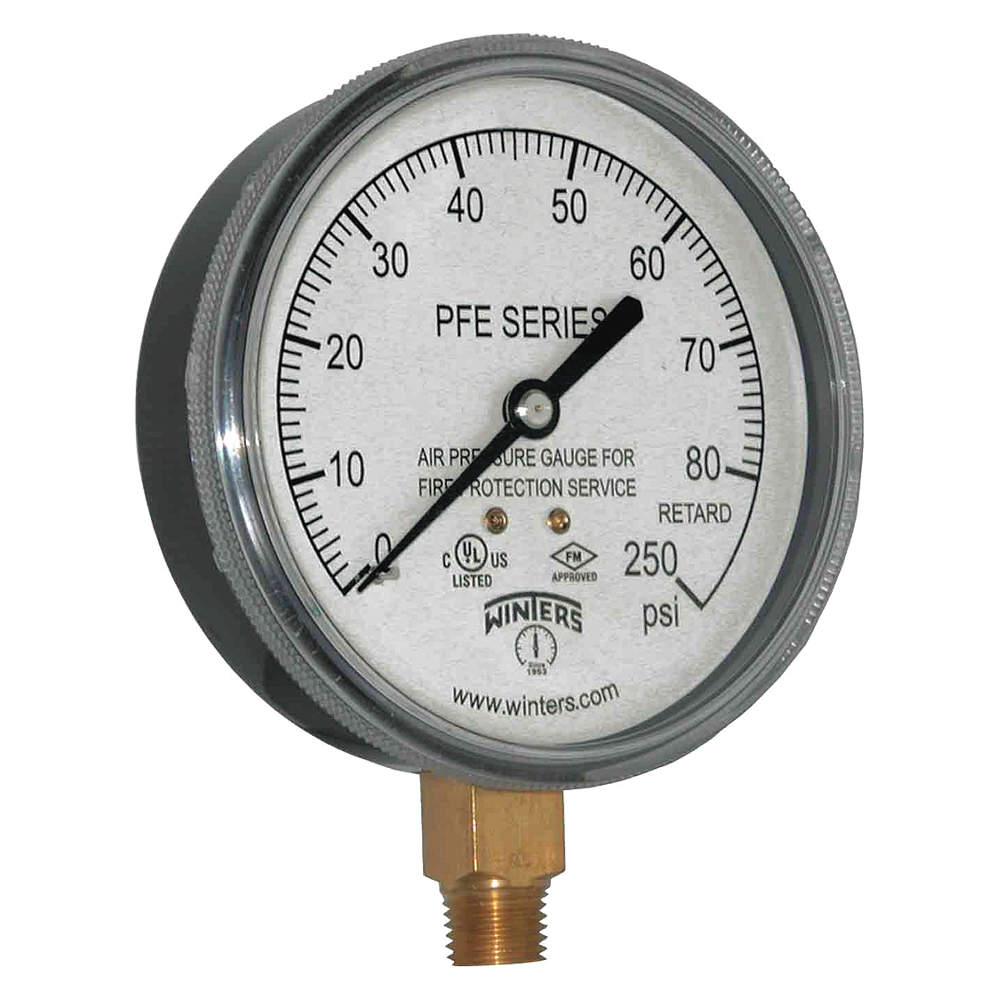

WINTERS INSTRUMENTS PFE3932R1 Pressure Gauge Sprinkler for Air Media
Item: AH8KRLModel: PFE3932R1Cross Ref: 38VL10
7 In Stock
Ships within 2 days via
10.00% off
€36.36 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | +/-3-2-3% |
| Accuracy Grade | ASME B40.100 Grade B |
| Accuracy Scale | Mid Scale |
| Ambient Operating Temperature Range | -40°F to +150°F, -40°C to +65°C |
| Application | Fire Fighting Equipment, Fire Sprinkler Systems |
| Basic Gauge Case Material | Plastic |
| Basic Gauge Sensor Material | Bronze |
| Basic Gauge Socket Material | Brass |
| Bezel Mounting Type | No Bezel |
| Calibration Certificate | No |
| Calibration Certificate Included | No |
| Case Color | Black |
| Case Construction | Plastic |
| Case Depth | 1.228" |
| Case Dia. | 3.681" |
| Color | Black |
| Compatible Liquids And Gases | Air |
| Dial Color | White |
| Dial Face Material | Aluminum |
| Dial Size | 3 1/2" |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade B Commercial |
| Gauge Case Color | Black |
| Gauge Case Material | Plastic |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/4" |
| Gauge Nominal Dial Size | 3 1/2" |
| Gauge Panel Mountable | No |
| Gauge Primary Range Units | Psi |
| Gauge Socket Material | Brass |
| Gauge Wetted Parts | Brass, Bronze |
| Hazardous Location Rating | Not Rated |
| Includes | Installation Date Sticker In Unit Box |
| Ip/nema Rating | NEMA IP52 |
| Lens Material | Polycarbonate |
| Lens Material - Gauge | Plastic |
| Liquid Filled | No |
| Manufacturer Warranty Length | 5 yrs. |
| Mounting Type | Stem Mount |
| Movement Material | Brass |
| Nominal Dial Size | 3 1/2" |
| Operating Temp. Range | -40°F to +150°F |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure And Vacuum Gauge Type | Pressure Gauge |
| Pressure Gauge Type | Fire Sprinkler System Gauge |
| Pressure Range | 0 psi to 80 psi |
| Pressure Range Type | Pressure |
| Pressure Scale | Psi |
| Primary Pressure Range | 0 psi to 80 psi |
| Primary Scale Units | Psi |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Process Temperature Range | -40°F to +150°F |
| Range | 0 psi to 80 psi |
| Reads Head Pressure | No |
| Removable Bezel | No |
| Scale Type | Single |
| Sensor Material | Bronze |
| Sensor Material | Phosphor Bronze |
| Sensor Type | Bourdon Tube |
| Series | PFE Series |
| Socket Material | Brass |
| Wetted Materials | Brass, Bronze |
| Wetted Parts Material | Brass, Phosphor Bronze |
Shipping Info:
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 3.12 |
| Ship length (cm) | 9.35 |
| Ship width (cm) | 9.35 |
| Country of Origin | CN |
Product Details:
- Gauge Accuracy : +/-3.00%
- Pressure and Vacuum Gauge Type : Pressure Gauge
- Gauge Panel Mountable : No
- Liquid Filled : No
- Characteristics: Suitable for Air Media, Corrosion Resistant Case, UL and FM Approved, CRN Registered, Working Pressure is max. 75% of Full Scale Value
Product Variants
| Product | Model | Pressure Range | Range | Primary Pressure Range | Pressure Range Type | Process Connection Location | Nominal Dial Size | Pressure Gauge Type | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

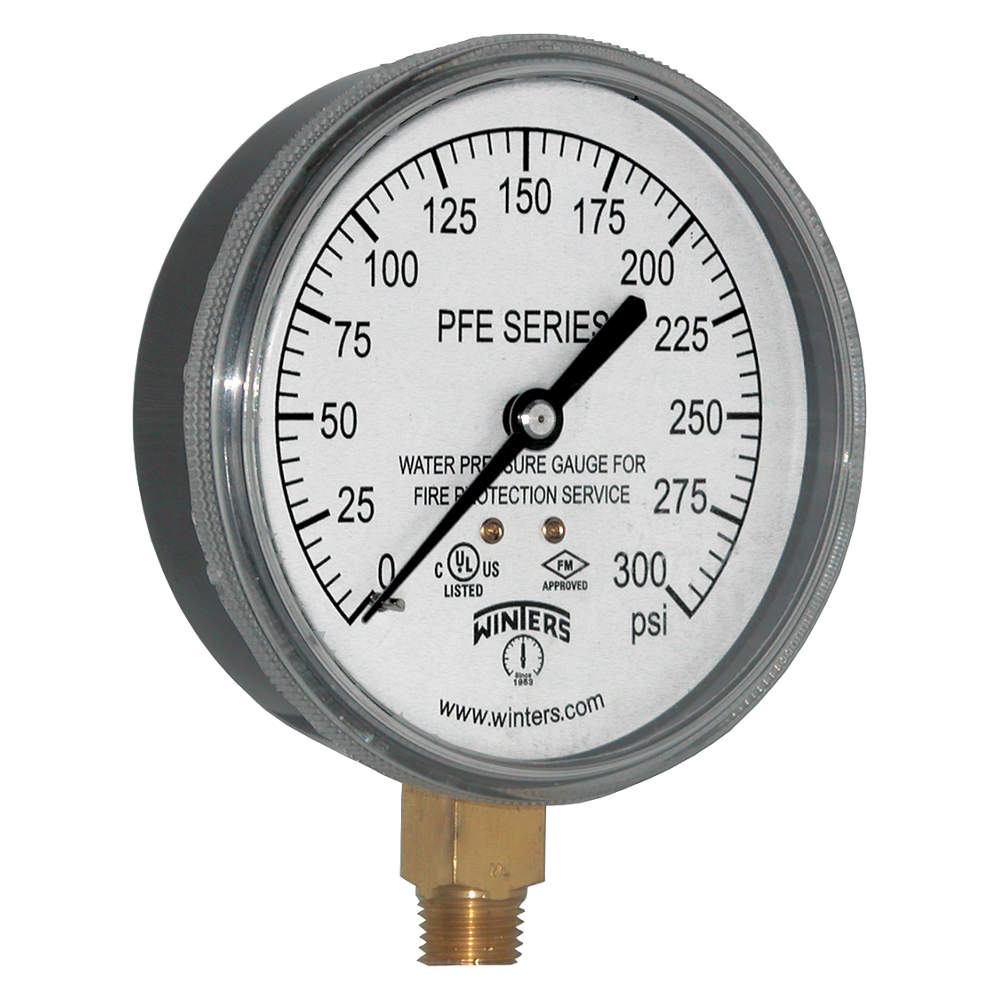

PFE3933R1 | 0 psi to 300 psi | 0 psi to 300 psi | 0 psi to 300 psi | Pressure | Bottom | 3 1/2" | Fire Sprinkler System Gauge | Stem Mount | €37.39 | |
 |

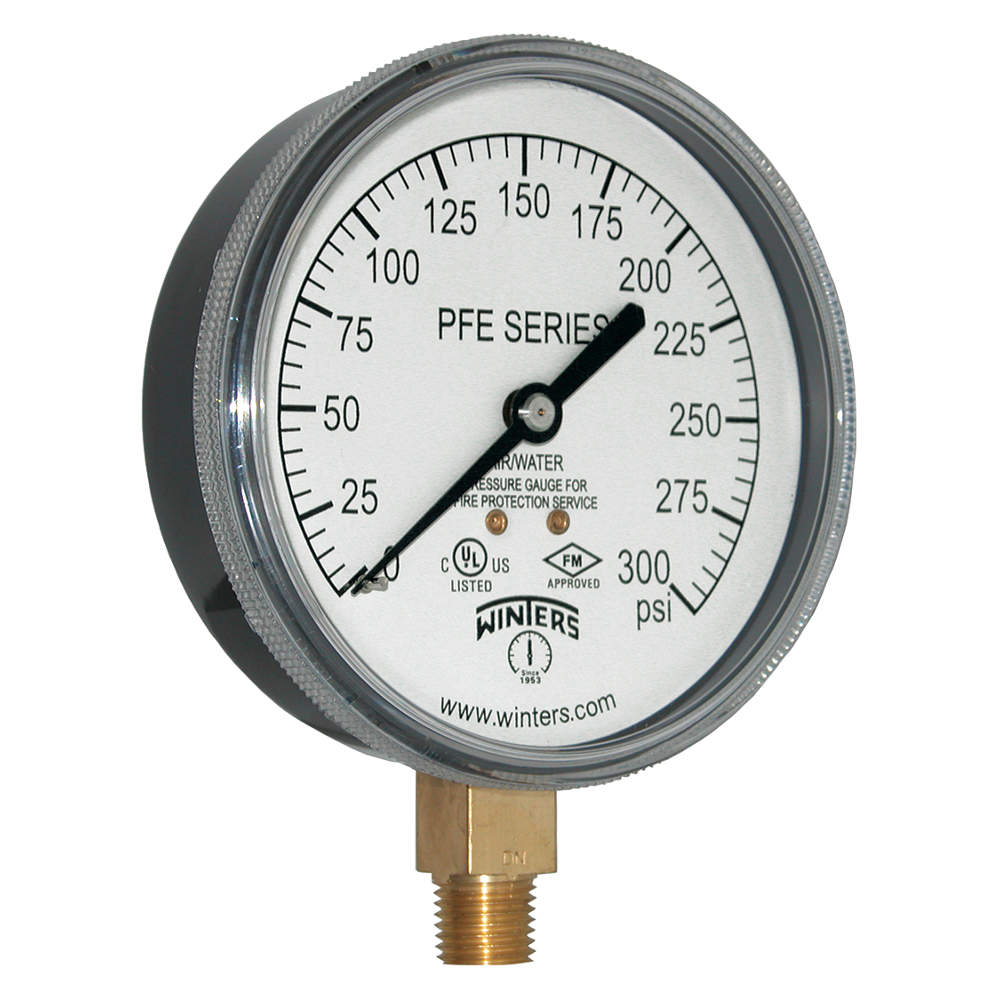

PFE3935R1 | - | 0 psi to 300 psi | - | Pressure | Bottom | 3 1/2" | - | - | €36.90 |
