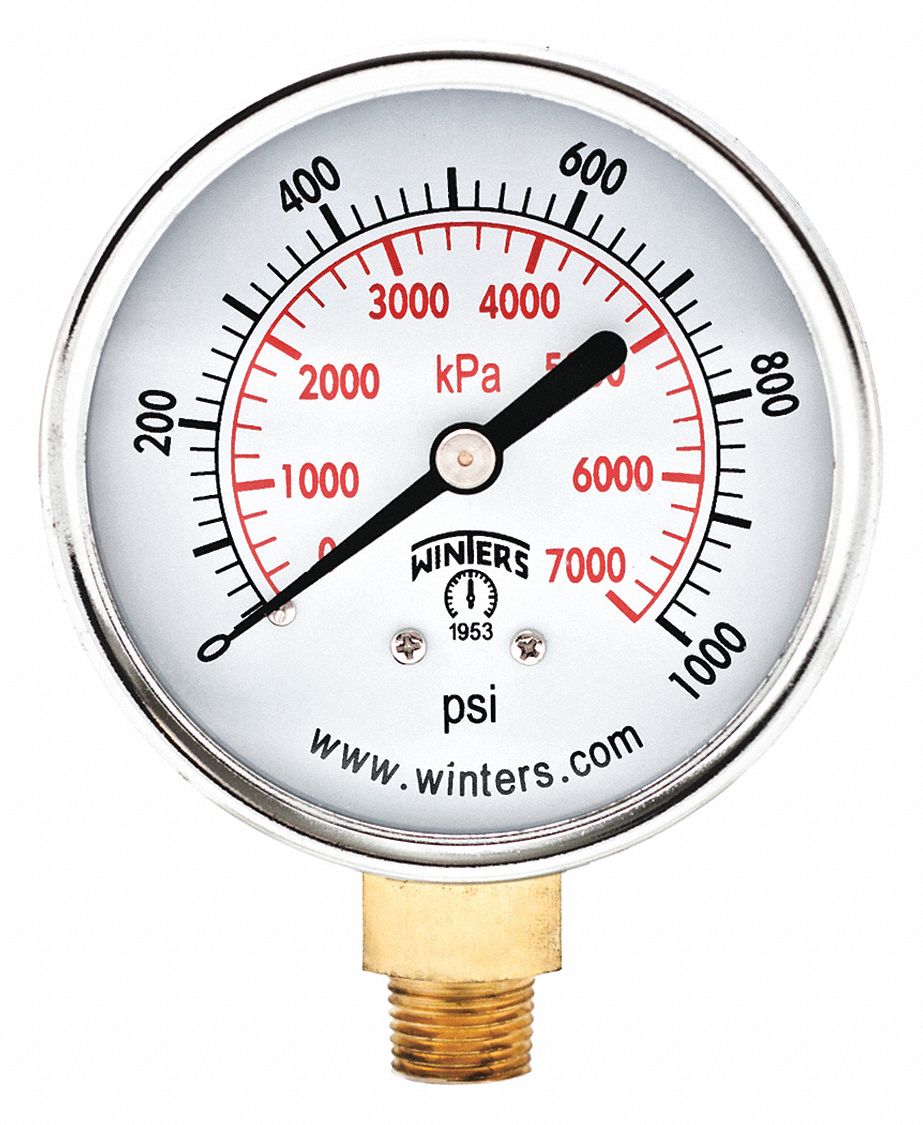

WINTERS INSTRUMENTS PEM290 Pressure Gauge, 0 To 1000 Psi Range, 1/4 Inch MNPT, +/-3-2-3% Gauge Accuracy
Item: CH6RCXModel: PEM290Cross Ref: 491F18
7 In Stock
Ships within 2 days via
10.00% off
€15.33 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | +/-3-2-3% |
| Accuracy Grade | ASME B40.100 Grade B |
| Accuracy Scale | Mid Scale |
| Ambient Operating Temperature Range | -40°F to +150°F, -40°C to +65°C |
| Application | Air Compressors,Hvac/R,Hydraulics,Oem Applications,Plumbing,Pneumatics,Water Pressure Testing |
| Bezel Material | Steel |
| Blowout Safety Back | No |
| Calibration Certificate Included | No |
| Case Color | Black |
| Case Construction | Welded Joint |
| Case Depth | 1.102" |
| Case Dia. | 2.488" |
| Case Finish | Painted |
| Case Material | Steel |
| Cleaned For Oxygen Service | No |
| Compatible Process Media | Non Clogging, Non Corroding |
| Connection Location | Bottom |
| Dial Color | White |
| Dial Face Material | Aluminum |
| Field Fillable | No |
| For Use With | Media Compatible With Bronze |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade B Commercial |
| Gauge Application | General Purpose Case |
| Gauge Case Color | Black |
| Gauge Case Material | Steel |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/4" |
| Gauge Nominal Dial Size | 2 1/2" |
| Gauge Primary Range Units | Psi |
| Gauge Socket Material | Brass |
| Gauge Wetted Parts | Brass, Bronze |
| Hazardous Location Rating | Not Rated |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| Ip/nema Rating | NEMA IP52 |
| Lens Material | Acrylic |
| Lens Material - Gauge | Plastic |
| Liquid Filled | No |
| Liquid-filled Case | No |
| Manufacturer Warranty Length | 5 yrs. |
| Mounting Hardware Included | No |
| Mounting Type | Stem Mount |
| Movement Material | Brass |
| Nominal Dial Size | 2 1/2" |
| Non-sparking | No |
| Operating Temp. Range | -40°F to +150°F |
| Over-pressure Limit | 25% |
| Panel-mountable | No |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure Gauge Type | Commercial Pressure Gauge |
| Pressure Range | 0 psi to 1000 psi |
| Pressure Range Type | Pressure |
| Primary Pressure Range | 0 psi to 1000 psi |
| Primary Scale Units | Psi |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Process Temperature Range | -40°F to +150°F |
| Range | 0 psi to 1000 psi |
| Removable Bezel | No |
| Scale Type | Dual |
| Secondary Pressure Range | 0 to 7000 |
| Secondary Range | 0 kPa to 7000 kPa |
| Secondary Scale Units | Kpa |
| Sensor Material | Phosphor Bronze |
| Sensor Type | Bourdon Tube |
| Series | PEM Series |
| Socket Material | Brass |
| Warranty | 5 yrs. |
| Wetted Parts Material | Brass, Phosphor Bronze |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 2.8 |
| Ship length (cm) | 6.32 |
| Ship width (cm) | 6.32 |
| Country of Origin | CN |
Product Variants
| Product | Model | Nominal Dial Size | Process Connection Location | Panel-mountable | Pressure Range | Mounting Type | Pointer Color | Vibration Resistance | Lens Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PCT322LF | - | - | - | - | - | - | - | Acrylic | €55.71 | |
 |
PCT323LF | - | - | - | - | - | - | - | Acrylic | €55.71 | |
 |
PCT324LF | - | - | - | - | - | - | - | Acrylic | €55.71 | |
 |
PCT325LF | - | - | - | - | - | - | - | Acrylic | €55.71 | |
 |
PCT326LF | - | - | - | - | - | - | - | Acrylic | €55.71 | |
 |
PETM213LF | 2 1/2" | Top | - | 0 psi to 160 psi | - | - | - | Acrylic | €41.92 | |
|
PETM217LF | 2 1/2" | Top | - | 0 psi to 300 psi | - | - | - | Acrylic | €41.92 |
