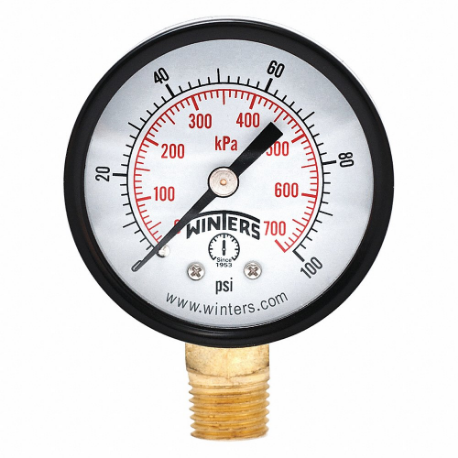

WINTERS INSTRUMENTS PEM202 Commercial Pressure Gauge, 0 To 100 PSI, 2 Inch Dial, 1/4 Inch Npt Male, Brass/Bronze

Item: CV3RMJModel: PEM202Cross Ref: 491D47

7 In Stock

Ships within 2 days via

~~€16.59~~

10.00% off

€14.93 /unit

Add To Cart

Request a Quote

Payment

Product Specifications:

Item	Pressure Gauge
Accuracy	±3-2-3%
Accuracy Grade	ASME B40.100 Grade B
Accuracy Scale	Mid Scale
Ambient Operating Temperature Range	-40°F to +150°F, -40°C to +65°C
Ambient Temp. Range	-40°F to +150°F
Bezel Material	Steel
Blowout Safety Back	No
Calibration Certificate Included	No
Case Color	Black
Case Construction	Welded Joint
Case Depth	1.161"
Case Dia.	2.19"
Case Finish	Painted
Case Material	Steel
Cleaned For Oxygen Service	No
Compatible Process Media	Non-Clogging, Non-Corroding
Connection Location	Bottom
Dial Color	White
Dial Face Material	Aluminum
Dry Dampening Feature	None
Field Fillable	No
For Use With	Media Compatible With Bronze
Freeze Resistant Movement	No
Gauge Accuracy Grade	Grade B Commercial
Gauge Application	General Purpose Case
Gauge Case Color	Black
Gauge Case Liquid	None
Gauge Case Material	Steel
Gauge Connection Location	Bottom
Gauge Connection Size	1/4"
Gauge Nominal Dial Size	2"
Gauge Primary Range Units	Psi
Gauge Socket Material	Brass
Gauge Wetted Parts	Brass, Bronze
Hazardous Location Rating	Not Rated
Includes Mounting Hardware	No
Includes Vent Plug	No
Ip Rating, Nema Rating	IP52
Ip/nema Rating	NEMA IP52
Lens Material	Acrylic
Lens Material - Gauge	Plastic
Liquid Filled	No
Liquid-filled Case	No
Manufacturer Warranty Length	5 yrs.
Mfr. Series	PEM
Mounting Hardware Included	No
Mounting Type	Stem Mount
Movement Material	Brass
Nominal Dial Size	2"
Non-sparking	No
Over-pressure Limit	25%
Panel-mountable	No
Pointer Color	Black
Pointer Material	Aluminum
Pressure Gauge Type	Commercial Pressure Gauge
Pressure Range	0 psi to 100 psi
Pressure Range Type	Pressure
Primary Pressure Range	0 psi to 100 psi
Primary Scale Units	Psi
Process Connection	1/4" NPT Male
Process Connection Gender	Male
Process Connection Location	Bottom
Process Connection Size	1/4"
Process Connection Type	NPT
Process Temperature Range	-40°F to +150°F
Range	0 psi to 100 psi
Removable Bezel	No
Scale Type	Dual
Secondary Pressure Range	0 kPa to 690 kPa
Secondary Scale Units	Kpa
Sensor Material	Phosphor Bronze
Sensor Type	Bourdon Tube
Series	PEM Series
Socket Material	Brass
Vibration Resistance	None
Wetted Parts Material	Brass, Phosphor Bronze

Shipping Info:

Ship weight (kg)	0.11
Ship height (cm)	2.95
Ship length (cm)	5.56
Ship width (cm)	5.56
Country of Origin	CN

Product Variants

Model	Pressure Range	Process Connection Location	Nominal Dial Size	Dial Color	Case Dia.	Secondary Scale Units	Secondary Pressure Range	Primary Pressure Range	Price

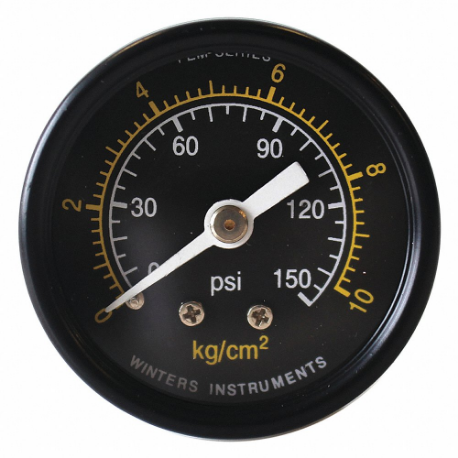

PEM1421-CD	0 psi to 150 psi	Center Back	1 1/2"	Black	1.66"	Kg/Sq. Cm	0 to 0.0703	0 psi to 150 psi	€10.16

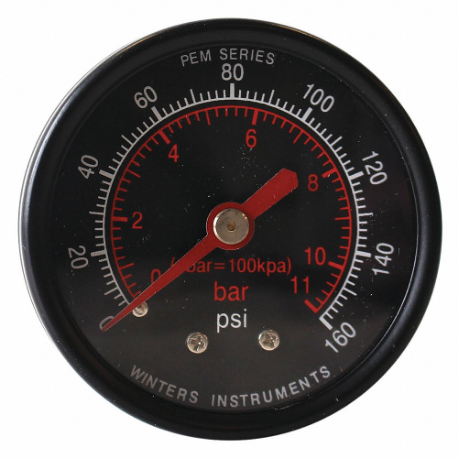

PEM1408-CD	0 psi to 160 psi	Center Back	2"	Black	2.07"	Kpa	0 kPa to 1100 kPa	0 to 160	€13.00

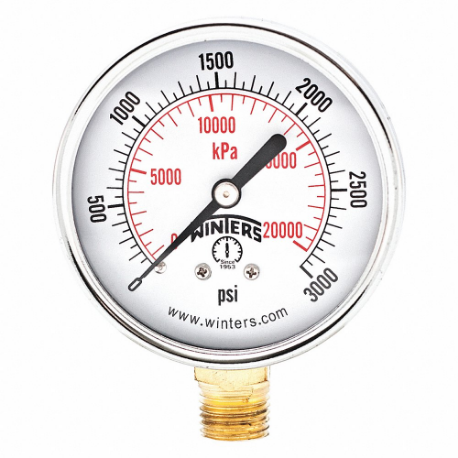

PEM291	0 psi to 3000 psi	Bottom	2 1/2"	White	2.488"	Kpa	0 kPa to 20000 kPa	0 psi to 3000 psi	€16.46
PEM1414	0 psi to 400 psi	Center Back	2"	White	2.07"	Kpa	0 kPa to 2800 kPa	0 psi to 400 psi	€17.61

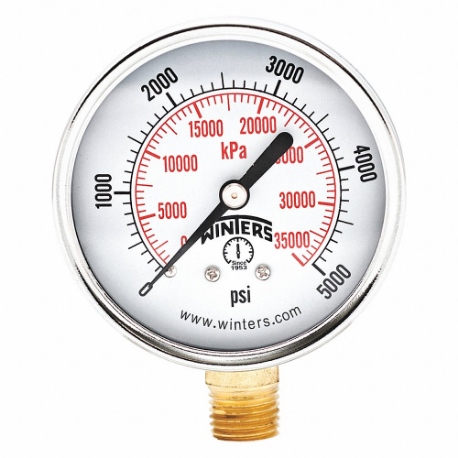

PEM292	0 psi to 5000 psi	Bottom	2 1/2"	White	2.488"	Kpa	0 kPa to 35000 kPa	0 psi to 5000 psi	€16.46
PEM3413	0 psi to 600 psi	Center Back	2 1/2"	White	2 1/2"	Kpa	0 kPa to 4140 kPa	0 psi to 600 psi	€18.31
PEM1412	0 psi to 600 psi	Center Back	2"	White	2.07"	Kpa	0 kPa to 4140 kPa	0 psi to 600 psi	€12.86
