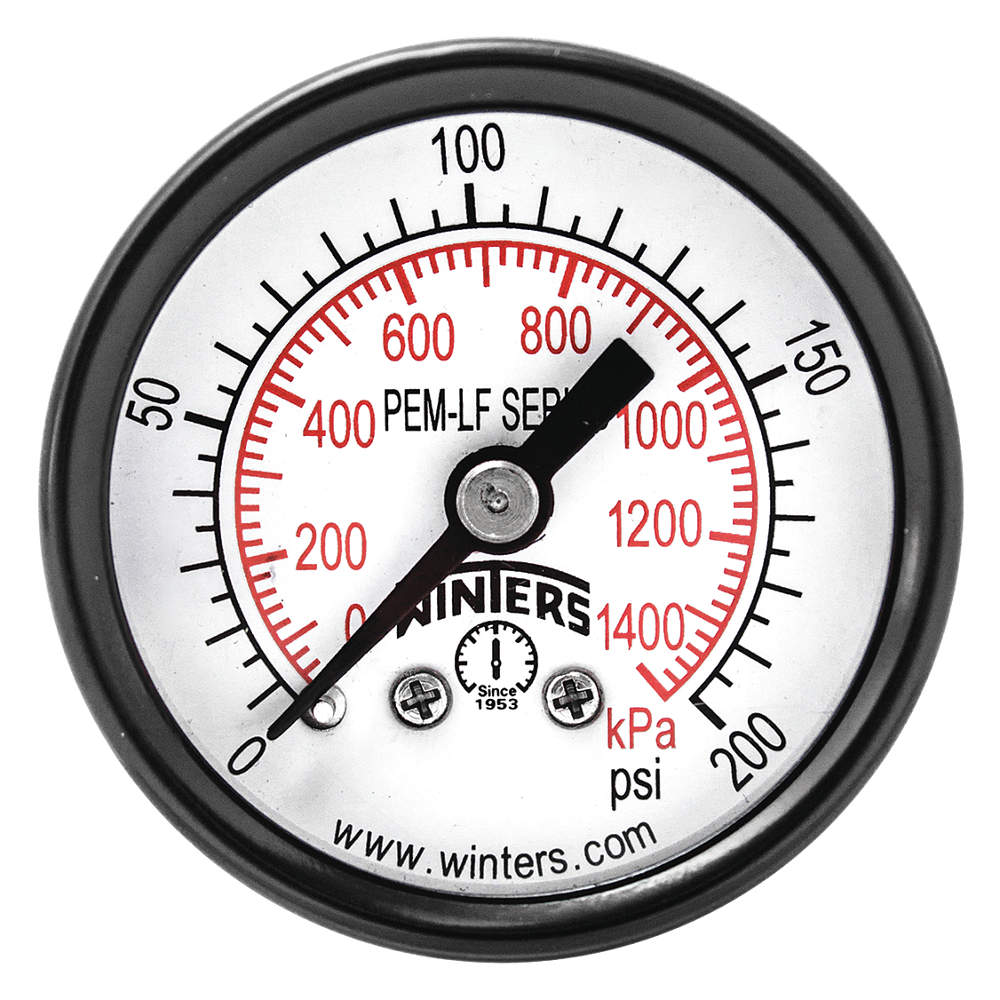

WINTERS INSTRUMENTS PEM1422LF Gauge Pressure 1-1/2 Inch 0 to 200 psi
Item: AH7HGPModel: PEM1422LFCross Ref: 36TV76
7 In Stock
Ships within 2 days via
10.00% off
€16.28 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Basic Gauge Case Material | Steel |
| Basic Gauge Sensor Material | Bronze |
| Basic Gauge Socket Material | Brass |
| Calibration Certificate | No |
| Calibration Certificate Included | No |
| Case Color | Black |
| Case Material | Metal |
| Characteristics | Friction Bezel Ring |
| Color | Black |
| Connection Location | Center Back |
| Dial Size | 1 1/2" |
| For Use With | Air Compressors, Air Conditioning, Heating, Plumbing, Pneumatic, Water Tanks |
| Gauge Accuracy Grade | Not Graded |
| Gauge Case Color | Black |
| Gauge Case Material | Steel |
| Gauge Connection Location | Center Back |
| Gauge Connection Size | 1/8" |
| Gauge Nominal Dial Size | 1 1/2" |
| Gauge Panel Mountable | No |
| Gauge Primary Range Units | Psi |
| Gauge Socket Material | Brass |
| Lens Material | Polycarbonate |
| Liquid Filled | No |
| Nsf Certified | Yes |
| Operating Temp. Range | -40°F to +150°F |
| Pressure And Vacuum Gauge Type | Pressure Gauge |
| Primary Application | Lead Free |
| Required Gauge Adapter | No |
| Sensor Material | Bronze |
| Socket Material | Brass |
| Wetted Materials | Brass, Bronze |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 3.85 |
| Ship width (cm) | 3.81 |
| Country of Origin | CN |
Product Details:
- Gauge Accuracy : +/-3-2-3%
- Pressure and Vacuum Gauge Type : Pressure Gauge
- Gauge Panel Mountable : No
- Liquid Filled : No
- Required Gauge Adapter : No
- Characteristics: Friction Bezel Ring
Product Variants
| Product | Model | Nominal Dial Size | Process Connection Location | Panel-mountable | Pressure Range | Mounting Type | Pointer Color | Vibration Resistance | Lens Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PCT322LF | - | - | - | - | - | - | - | Acrylic | €55.71 | |
 |
PCT323LF | - | - | - | - | - | - | - | Acrylic | €55.71 | |
 |
PCT324LF | - | - | - | - | - | - | - | Acrylic | €55.71 | |
 |
PCT325LF | - | - | - | - | - | - | - | Acrylic | €55.71 | |
 |
PCT326LF | - | - | - | - | - | - | - | Acrylic | €55.71 | |
 |
PETM213LF | 2 1/2" | Top | - | 0 psi to 160 psi | - | - | - | Acrylic | €41.92 | |
|
PETM217LF | 2 1/2" | Top | - | 0 psi to 300 psi | - | - | - | Acrylic | €41.92 |
