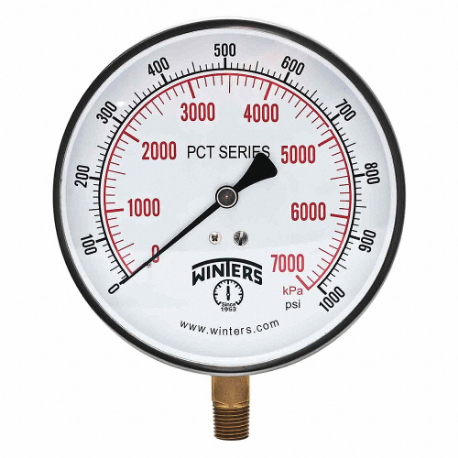

WINTERS INSTRUMENTS PCT293 Industrial Pressure Gauge, 0 to 1000 PSI, 4 1/2 Inch Size Dial, 1/4 Inch Size NPT Male
Item: CR4BRWModel: PCT293Cross Ref: 491C50
7 In Stock
Ships within 2 days via
10.00% off
€46.56 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | -1% to +1% |
| Accuracy Grade | ASME B40.100 Grade 1A |
| Accuracy Scale | Full Scale |
| Ambient Operating Temperature Range | -40°F to +200°F |
| Application | Commercial |
| Bezel Material | Stainless Steel |
| Bezel Material Grade | Grade 304 |
| Blowout Safety Back | No |
| Calibration Certificate Included | No |
| Case Color | Metallic |
| Case Construction | Welded Joint |
| Case Depth | 1.18" |
| Case Dia. | 4 23/25" |
| Case Diameter | 4.92" |
| Case Grade | Grade 304 |
| Case Material | Stainless Steel |
| Cleaned For Oxygen Service | No |
| Compatible Process Media | Air, Steam, Water |
| Dial Color | White |
| Dial Face Material | Aluminum |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade 1A - Industrial |
| Gauge Case Material | Stainless Steel |
| Gauge Case Material Grade | Grade 304 |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/4" |
| Gauge Nominal Dial Size | 4 1/2" |
| Gauge Primary Range Units | Psi |
| Gauge Wetted Parts | Brass, Bronze |
| Hazardous Location Rating | Not Rated |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| Ip Rating, Nema Rating | IP52 |
| Ip/nema Rating | NEMA IP52 |
| Lens Material | Acrylic |
| Lens Material - Gauge | Plastic |
| Liquid Filled | No |
| Liquid-filled Case | No |
| Manufacturer Warranty Length | 5 yrs. |
| Mfr. Series | PCT |
| Mounting Hardware Included | No |
| Movement Material | Brass |
| Nominal Dial Size | 4 1/2" |
| Non-sparking | No |
| Over-pressure Limit | 25% |
| Panel-mountable | No |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pointer Style | Black |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Range | 0 psi to 1000 psi |
| Pressure Range Type | Pressure |
| Primary Pressure Range | 0 psi to 1000 psi |
| Primary Scale Units | Psi |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Process Temperature Range | -40°F to +200°F |
| Removable Bezel | No |
| Scale Type | Dual |
| Secondary Pressure Range | 0 kPa to 7000 kPa |
| Secondary Scale Units | Kpa |
| Sensor Material | Phosphor Bronze |
| Sensor Type | Bourdon Tube |
| Series | PCT Series |
| Socket Material | Brass |
| Wetted Materials | Brass, Phosphor Bronze |
| Wetted Parts Material | Brass, Phosphor Bronze |
Shipping Info:
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 3 |
| Ship length (cm) | 12.5 |
| Ship width (cm) | 12.5 |
| Country of Origin | CN |
Product Variants
| Product | Model | Case Material | Accuracy | Lens Material | Gauge Accuracy Grade | Pressure Range Type | Nominal Dial Size | Bezel Material | Primary Scale Units | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
P3S6017-MAXI45 | Aluminum | -0.5% to +0.5% | Glass | Grade 2A - Process | Pressure | 4 1/2" | Stainless Steel | Psi | €217.31 | |
|
P3S6017 | Aluminum | -0.5% to +0.5% | Glass | Grade 2A - Process | Pressure | 4 1/2" | Stainless Steel | Psi | €118.07 | |
 |
P1S491 | Aluminum | -1% to +1% | Glass | Grade 1A - Industrial | Pressure | 4 1/2" | Brass | Psi | €78.10 | |
 |
P3S6011-MAXI45 | Aluminum | -0.5% to +0.5% | Glass | Grade 2A - Process | Pressure | 4 1/2" | Stainless Steel | Psi | €217.83 | |
 |
P3S6011 | Aluminum | -0.5% to +0.5% | Glass | Grade 2A - Process | Pressure | 4 1/2" | Stainless Steel | Psi | €118.07 | |
|
P3S6086 | Aluminum | -0.5% to +0.5% | Glass | Grade 2A - Process | Pressure | 6" | Stainless Steel | Psi | €175.36 | |
 |
P1S419 | Aluminum | -1% to +1% | Glass | Grade 1A - Industrial | Pressure | 4 1/2" | Brass | Psi | €78.10 |
