WINTERS INSTRUMENTS P3S6089 Industrial Pressure Gauge, 0 to 300 psi, 6 Inch Size Dial, 1/4 Inch Size NPT Male, Bottom
Item: CR3YWEModel: P3S6089Cross Ref: 491C06
7 In Stock
Ships within 2 days via
10.00% off
€157.83 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | -0.5% to +0.5% |
| Accuracy Grade | ASME B40.100 Grade 2A |
| Accuracy Scale | Full Scale |
| Ambient Operating Temperature Range | -40°F to +150°F, -40°C to +65°C |
| Application | Boilers |
| Bezel Material | Stainless Steel |
| Blowout Safety Back | No |
| Calibration Certificate Included | No |
| Case Color | Black |
| Case Construction | Welded Joint |
| Case Depth | 2" |
| Case Dia. | 6.342" |
| Case Finish | Polished |
| Case Material | Aluminum |
| Cleaned For Oxygen Service | No |
| Compatible Process Media | Air, Fresh Water, Oil, Steam |
| Dial Color | White |
| Dial Face Material | Aluminum |
| Field Fillable | No |
| For Use With | Air, Brass, Fresh Water, Industrial Applications, Media Compatible With Copper Alloy, Oil, Steam |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade 2A - Process |
| Gauge Case Material | Aluminum |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/4" |
| Gauge Nominal Dial Size | 6" |
| Gauge Primary Range Units | Psi |
| Gauge Wetted Parts | Brass, Bronze |
| Hazardous Location Rating | Not Rated |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| Ip Rating, Nema Rating | IP52 |
| Ip/nema Rating | NEMA IP52 |
| Lens Material | Glass |
| Lens Material - Gauge | Glass |
| Liquid Filled | No |
| Liquid-filled Case | No |
| Manufacturer Warranty Length | 5 yrs. |
| Mfr. Series | P3S 300 Series |
| Mounting Hardware Included | No |
| Mounting Type | Stem Mount |
| Movement Material | Brass |
| Nominal Dial Size | 6" |
| Non-sparking | No |
| Over-pressure Limit | 30% |
| Panel-mountable | No |
| Pointer Characteristics | Micrometer Adjustable |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pointer Style | Black |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Range | 0 psi to 300 psi |
| Pressure Range Type | Pressure |
| Primary Pressure Range | 0 psi to 300 psi |
| Primary Scale Units | Psi |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Process Temperature Range | -40°F to +150°F |
| Removable Bezel | No |
| Scale Type | Dual |
| Secondary Pressure Range | 0 psi to 2100 psi |
| Secondary Scale Units | Kpa |
| Sensor Material | Phosphor Bronze |
| Sensor Type | Bourdon Tube |
| Socket Material | Brass |
| Wetted Materials | Brass, Phosphor Bronze |
| Wetted Parts Material | Brass, Phosphor Bronze |
Shipping Info:
| Ship weight (kg) | 1.01 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 16.11 |
| Ship width (cm) | 16.11 |
| Country of Origin | CN |
Product Variants
| Product | Model | Case Material | Accuracy | Lens Material | Gauge Accuracy Grade | Pressure Range Type | Nominal Dial Size | Bezel Material | Primary Scale Units | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
P3S6017-MAXI45 | Aluminum | -0.5% to +0.5% | Glass | Grade 2A - Process | Pressure | 4 1/2" | Stainless Steel | Psi | €217.31 | |
|
P3S6017 | Aluminum | -0.5% to +0.5% | Glass | Grade 2A - Process | Pressure | 4 1/2" | Stainless Steel | Psi | €118.07 | |
 |
P1S491 | Aluminum | -1% to +1% | Glass | Grade 1A - Industrial | Pressure | 4 1/2" | Brass | Psi | €78.10 | |
 |

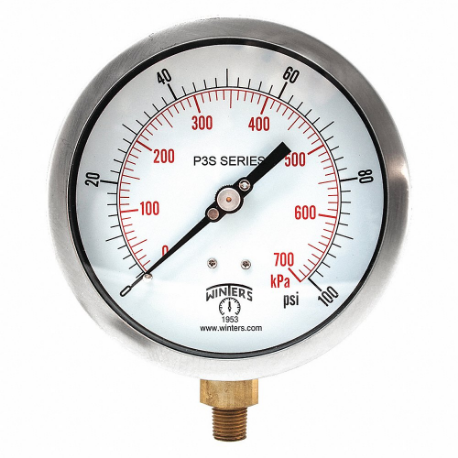

P3S6011-MAXI45 | Aluminum | -0.5% to +0.5% | Glass | Grade 2A - Process | Pressure | 4 1/2" | Stainless Steel | Psi | €217.83 | |
 |

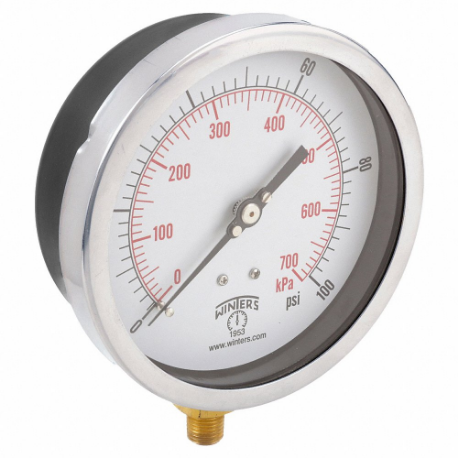

P3S6011 | Aluminum | -0.5% to +0.5% | Glass | Grade 2A - Process | Pressure | 4 1/2" | Stainless Steel | Psi | €118.07 | |
|
P3S6086 | Aluminum | -0.5% to +0.5% | Glass | Grade 2A - Process | Pressure | 6" | Stainless Steel | Psi | €175.36 | |
 |
P1S419 | Aluminum | -1% to +1% | Glass | Grade 1A - Industrial | Pressure | 4 1/2" | Brass | Psi | €78.10 |
