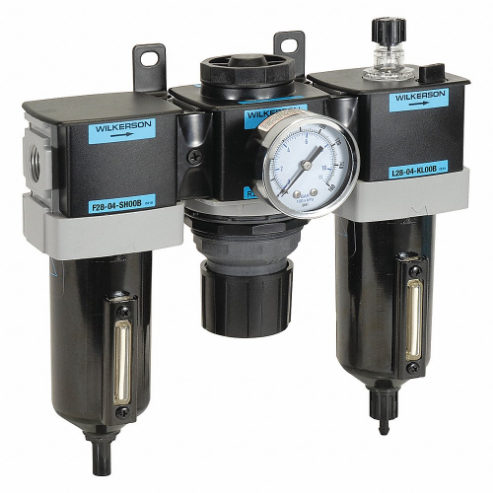

WILKERSON C28-03-FLG0B Filter/Regulator/Lubricator, 3/8 NPT, 90 Cfm Max. Flow
Item: CH6NPPModel: C28-03-FLG0BCross Ref: 55CP99
7 In Stock
Ships within 2 days via
5.00% off
€447.78 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Filter/Regulator/Lubricator |
| Adjustable Pressure | 0 psi to 125 psi |
| Adjustment | 0 psi to 125 psi |
| Adjustment Mechanism | Knob |
| Adjustment Mechanism Material | Acetal |
| Air Inlet Size | 3/8" |
| Air Inlet Type | NPT |
| Air Outlet Size | 3/8" |
| Air Outlet Type | NPT |
| Body Material | Aluminum |
| Bowl Material | Metal With Sight Gauge |
| Connection Size | 3/8" |
| Drain Included | Yes |
| Drain Type | Manual |
| Filter Bowl Capacity | 3 oz. |
| Filter Bowl Guard Material | Aluminum |
| Filter Bowl Material | Aluminum |
| Filter Element Material | Polyethylene |
| Filter Rating | 5 µm |
| For Fluid Type | Oil |
| For Max. Pipe Run | 100 ft. |
| For Substance Type | Air |
| Included | Modular T-Bracket/Joiner Assembly, Pressure Gauge, Sight Gauge |
| Iso Class | Class 3 |
| Lubricator Bowl Capacity | 3 oz. |
| Lubricator Bowl Guard Material | Aluminum |
| Lubricator Bowl Material | Aluminum |
| Lubricator Type | Micro Mist |
| Max. Flow Rate | 90 CFM |
| Max. Inlet Pressure | 250 psi |
| Max. Operating Pressure | 250 psi |
| Max. Temp. | 150°F |
| Min. Operating Temp. | -13°F |
| No. Of Air Inlets | 1 |
| No. Of Air Outlets | 1 |
| No. Of Pieces | 3 |
| Oil Capacity | 3 oz. |
| Overall Depth | 4 3/4" |
| Overall Height | 9 3/8" |
| Overall Width | 9 5/16" |
| Pipe Length | 100 ft. |
| Pressure Control Type | Relieving |
| Pressure Drop | 14.5 psig |
| Pressure Gauge Included | Yes |
| Pressure Gauge Port Size | 1/4" |
| Pressure Gauge Port Type | NPT |
| Seal Material | Nitrile |
| Series | C28 Series |
| Sight Dome Included | Yes |
| Sight Gauge Included | Yes |
Shipping Info:
| Ship weight (kg) | 2.48 |
| Ship height (cm) | 23.81 |
| Ship length (cm) | 12.07 |
| Ship width (cm) | 23.65 |
| Country of Origin | US |
Product Variants
| Product | Model | Overall Height | Max. Flow Rate | Max. Operating Pressure | Overall Width | Max. Temp. | Air Inlet Size | Filter Bowl Material | Air Outlet Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

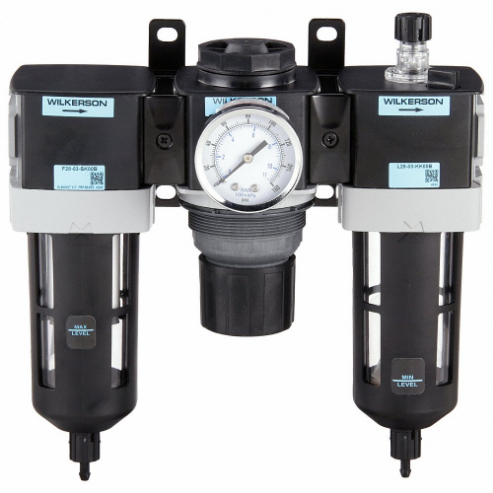

C28-03-FKG0B | 9 3/8" | 90 CFM | 150 psi | 9 5/16" | 125°F | 3/8" | Polycarbonate | 3/8" | €435.21 | |
 |

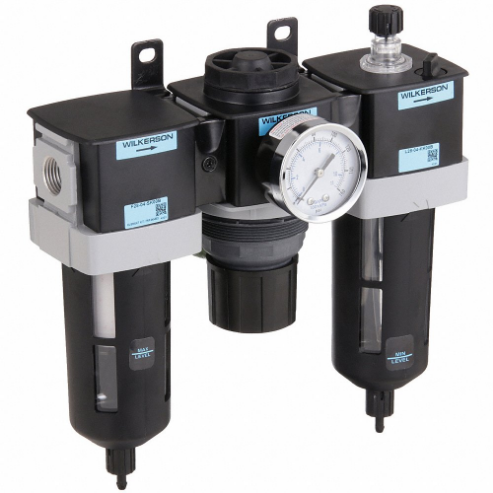

C28-04-FKG0B | 9 3/8" | 90 CFM | 150 psi | 9 5/16" | 125°F | 1/2" | Polycarbonate | 1/2" | €443.31 | |
|
C28-04-FLG0B | 9.31" | 90 CFM | - | 9.31" | 150°F | - | - | - | €477.32 | |
 |
C28-06-FKG0B | 9 3/8" | 110 CFM | 150 psi | - | 125°F | 3/4" | Polycarbonate | 3/4" | €452.47 | |
 |

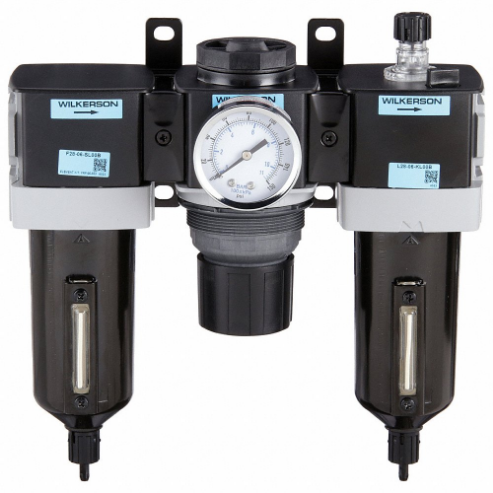

C28-06-FLG0B | 9 3/8" | 110 CFM | 250 psi | 9 5/16" | 150°F | 3/4" | Aluminum | 3/4" | €475.80 |
