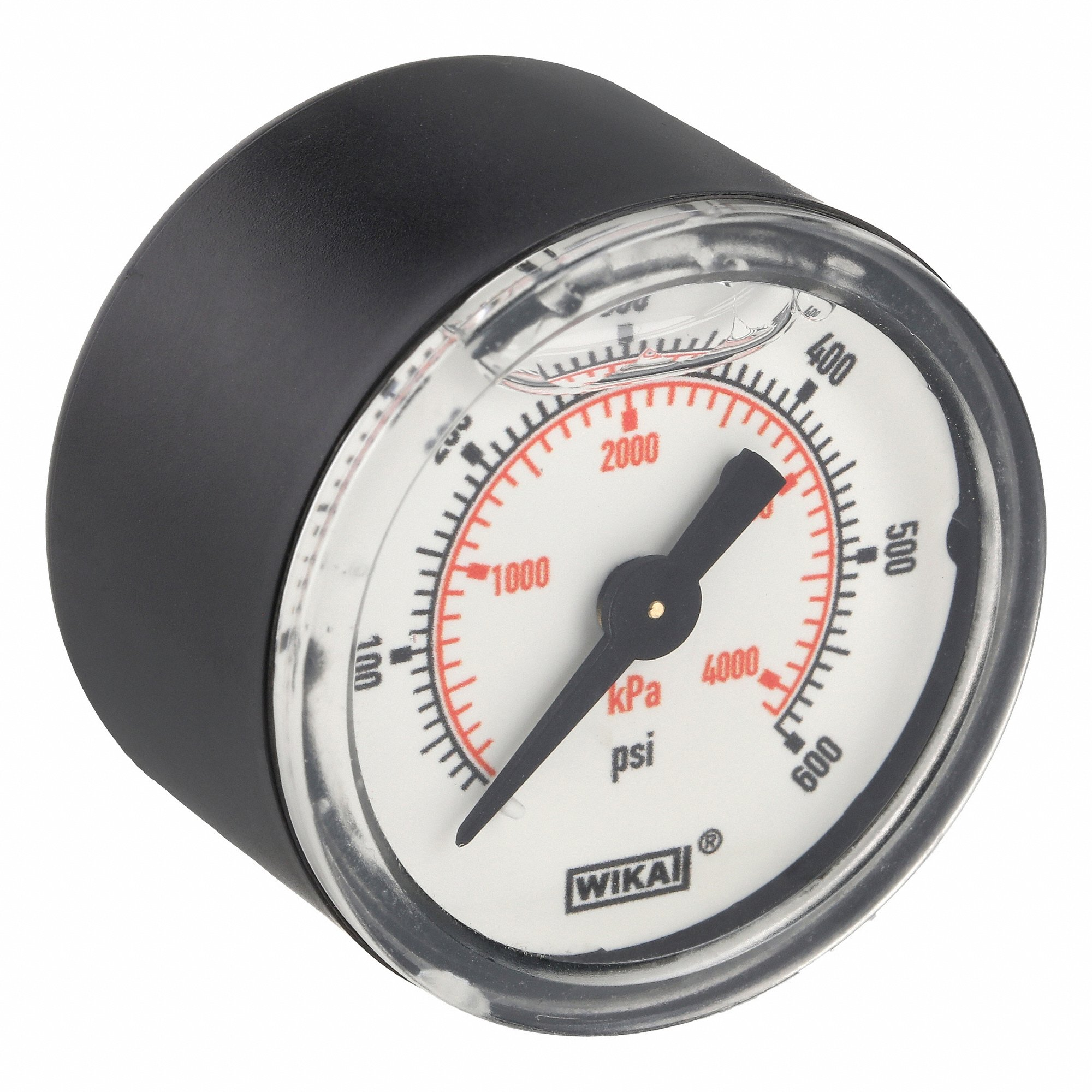

WIKA 113.13.15.600.B Commercial Pressure Gauge, 0 To 600 PSI, 1 1/2 Inch Dial, 1/8 Inch Npt Male
Item: CV3QHAModel: 113.13.15.600.BCross Ref: 400P79
7 In Stock
Ships within 2 days via
13.00% off
€39.19 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | ±3-2-3% |
| Accuracy Grade | ASME B40.100 Grade B |
| Accuracy Scale | Mid Scale |
| Ambient Operating Temp. | -4°F to +140°F |
| Application | Compressors, Hydraulics, Marine, Pumps |
| Blowout Safety Back | No |
| Case Color | Black |
| Case Construction | Welded Joint |
| Case Depth | 26.5 mm |
| Case Dia. | 41 mm |
| Case Material | Plastic |
| Cleaned For Oxygen Service | No |
| Compatible Process Media | Liquids And Gases |
| Dial Color | White |
| Dial Face Material | ABS |
| Dry Dampening Feature | Not Available |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade B Commercial |
| Gauge Application | General Purpose Case |
| Gauge Case Liquid | Glycerin |
| Gauge Case Material | ABS |
| Gauge Wetted Parts | Brass, Bronze |
| Hazardous Location Rating | Not Rated |
| Included Calibration Certificate | No |
| Included Mounting Hardware | No |
| Included Vent Plug | No |
| Ip/nema Rating | Nema Ip65 |
| Lens Material | Plastic |
| Lens Material Gauge | Plastic |
| Liquid-filled Case | Yes |
| Mounting Type | Stem Mount |
| Nominal Dial Size | 1 1/2" |
| Non Sparking | No |
| Panel-mountable | No |
| Pointer Color | Black |
| Pointer Material | ABS |
| Pressure | 0 psi to 600 psi |
| Pressure Gauge Type | Commercial Pressure Gauge |
| Pressure Range (secondary) | 0 psi to 600 psi |
| Pressure Type | Pressure |
| Primary Graduations | 100/10 |
| Primary Pressure | 0 psi to 600 psi |
| Primary Scale Minor Graduations | 10 |
| Primary Scale Numeric Increments | 100.0 |
| Primary Scale Units | PSI |
| Process Connection | 1/8" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Center Back |
| Process Connection Size | 1/8" |
| Process Connection Type | NPT |
| Removable Bezel | No |
| Scale Type | Single |
| Sensor Material | Bronze |
| Sensor Type | Bourdon Tube |
| Series | 113.13 Series |
| Socket Material | Brass |
| Vibration Resistance | Liquid Filled |
| Wetted Parts Material | Brass, Bronze |
Shipping Info:
| Ship weight (kg) | 0.08 |
Product Variants
| Product | Model | Process Connection Size | Nominal Dial Size | Process Connection Location | Primary Scale Numeric Increments | Included Vent Plug | Pressure Type | Dry Dampening Feature | Case Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
113.13.15.3030.B | 1/8" | 1 1/2" | Center Back | 10.0 | No | Compound | Not Available | 41 mm | €45.05 | |
 |
113.13.25.3030.L | 1/4" | 2" | Lower Back | 1 | Yes | Compound | None | 62.5 mm | €45.62 | |
 |
113.13.20.3030.B | 1/4" | 2" | Center Back | 10.0 | No | Compound | Not Available | 51 mm | €48.04 | |
|
113.13.20.3030.L | - | - | - | 10.0 | No | - | - | - | €74.76 | |
|
113.13.15.1000.B | 1/8" | 1 1/2" | Center Back | 200.0 | Yes | Pressure | Not Available | 41 mm | €45.05 | |
|
113.13.15.1000.B | 1/8" | 1 1/2" | Center Back | 200.0 | No | Pressure | Not Available | 41 mm | €45.05 | |
|
113.13.25.1000.L | 1/4" | 2 1/2" | Bottom | 10 | Yes | Pressure | None | 62.5 mm | €45.62 |
