WIDIA 6942362 WNMG080408UR / WNMG432UR Trigon Turning Inserts, 0.500 Inch Inscribed Circle, Carbide, Neutral, 0.1883 Inch Thick
Item: CV3MCUModel: 6942362Cross Ref: 796M28 / WNMG080408UR / WNMG432UR
7 In Stock
Ships within 2 days via
10.00% off
€10.34 /unit
This product can only be shipped in multiples of 5Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Turning Insert |
| Ansi Code | WNMG432UR |
| Chip-breaker | Yes |
| Chip-breaker Code | UR |
| Chip-breaker Style | Yes |
| Clearance Angle | 0° |
| Coating Process | PVD |
| Corner Radius | 0.031" |
| Cutting Application | Roughing |
| Cutting Direction | Neutral |
| Cutting Edge Length | 0.342" |
| Depth Of Cut | 0.1883" |
| Features | Deformation Resistance |
| Finish - Machining | TiAlN |
| Included Angle | 80° |
| Inscribed Circle | 1/2" |
| Insert Code | WNMG432 |
| Iso Number | WNMG080408UR |
| Manufacturer Grade | Grade WU10PT |
| Material | Carbide |
| Material - Machining | Carbide |
| Material Grade - Machining | Carbide |
| Number Of Cutting Edges | 6 |
| Primary Material Application | High-Temperature Alloy, Stainless Steel, Steel |
| Primary Material Application Iso Code | M, P, S |
| Rake | Negative |
| Secondary Material Application | Cast Iron, Hardened Material, Non Ferrous |
| Secondary Material Application Iso Code | H, K, N |
| Shape | Trigon |
| System Of Measurement | Decimal Inch |
| Thickness | 0.188" |
| Through Hole Inside Dia. | 0.2031" |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | IN |
Product Variants
| Product | Model | Thickness | Inscribed Circle | Corner Radius | Clearance Angle | Number Of Cutting Edges | Insert Code | Chip-breaker Code | Insert Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
4171654 | - | - | - | - | - | - | - | - | €12.91 | |
|
4171901 | 3/16" | - | - | - | - | - | - | - | €12.91 | |
 |
6673948 | - | - | - | - | - | - | - | - | €10.93 | |
|
4173064 | 3/16" | - | - | - | - | - | - | - | €12.91 | |
 |
WNMG432AP TN6025 | 3/16" | 1/2" | 1/32" | 0° | - | WNMG432 | Yes | WNMG | €25.45 | |
 |

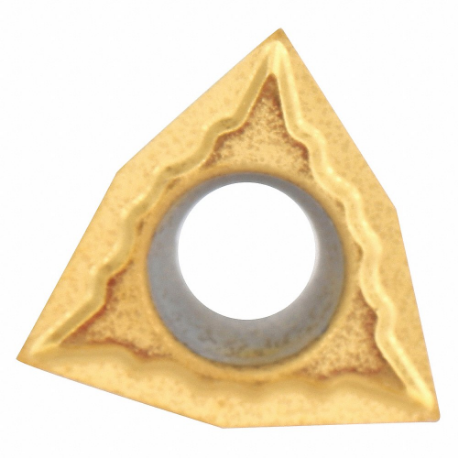

WPHT2150 CG5 | 3/32" | 1/4" | 0.004" | 11° | 3 | WPHT21.5.2 | Yes | WPHT | €19.54 | |
 |
2824316 | 3/32" | 1/4" | 1/64" | 11° | 3 | WPHT21.51 | Yes | WPHT | €19.44 |
