WIDIA 5988028 VSM17D100Z02W100XD17 Indexable Square End Mill, 1 Inch Max. Cutting Dia, Weldon Flat, 1 Inch Shank Dia
Item: CV2KPEModel: 5988028Cross Ref: 274HU7 / VSM17D100Z02W100XD17
7 In Stock
Ships within 2 days via
10.00% off
€457.43 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Square End Mill |
| Ansi Code | VSM17D100Z02W100XD17 |
| Axial Rake Angle | 7° |
| Compatible Hardware | Insert Screw M4X0.7 x 8.4 T15, Torx Wrench TX15 |
| Coolant Fed | Coolant Through |
| Cutting Application | Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End |
| Cutting Depth | 0.642" |
| Cutting Direction | Right Hand |
| Features | Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching The Cutting Edge, Superior Wall And Surface Finish |
| Head Projection Length | 1.22" |
| Insert Holding Type | Screw |
| Insert Size | 1704 |
| Insert Style | RP_XDT PE R |
| Iso Number | VSM17D100Z02W100XD17 |
| Material - Machining | High Speed Steel |
| Max. Cutting Dia. | 1" |
| Max. Speed | 41300 RPM |
| Min. Cutting Dia. | 1" |
| Neck Dia. | 0.843" |
| Number Of Coolant Holes | 1 |
| Number Of Flutes | 2 |
| Number Of Inserts | 2 |
| Overall Length | 3 1/2" |
| Radial Rake Angle | -9.1° |
| Rake | -9.1° Radial, 7° Axial |
| Shank Dia. | 1" |
| Shank Length | 2.28" |
| Shank Type | Weldon Flat |
| Shank Type - Machining | Weldon Flat |
| Side Cutting Edge Angle | 0° |
| Toolholder Style | XDPT17 |
| Type | End Mill |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 2.54 |
| Country of Origin | BG |
Product Variants
| Product | Model | Overall Length | Insert Size | Insert Holding Type | Side Cutting Edge Angle | Insert Shape | Max. Cutting Dia. | Depth Of Cut | Insert Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2021428 | 29.2 mm | 1204 | Screw | - | Square | 1 1/2" | - | Sdmt Pdr | €859.81 | |
|
2021430 | 29.2 mm | 1204 | Screw | - | Square | - | - | Sdmt Pdr | €1,146.89 | |
 |

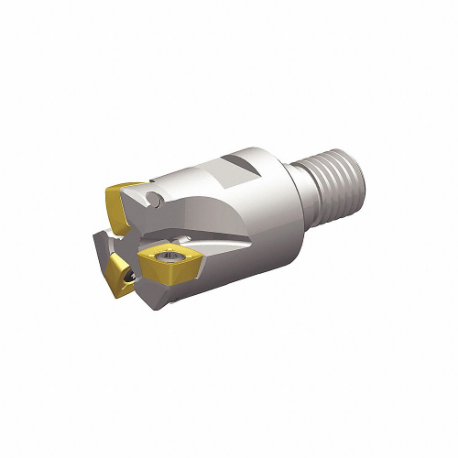

VXF032Z03M16XD12 | 67.5 mm | 120512 | Screw | - | Square | 32 mm | - | Xdpt Ermm | €559.34 | |
 |
5363199 | 4" | 100031 | Wedge Clamp Before Insert | - | Dov Lok 90 | - | - | Edr | €911.82 | |
 |
6425445 | 4" | 100408 | Screw | 0° | Rectangle | - | - | Xngu Srmm | €671.28 | |
|
6425452 | 4.3" | 100408 | Screw | 0° | Rectangle | - | - | Xngu Srmm | €670.44 | |
|
6425454 | 4.3" | 100408 | Screw | 0° | Rectangle | - | - | Xngu Srmm | €702.15 |
