WIDIA 5903679 CPNT120408T Diamond Milling Insert, 1/2 Inch Inscribed Circle, 1/32 Inch Corner Radius
Item: CV2PQYModel: 5903679Cross Ref: 274HP5 / CPNT120408T
7 In Stock
Ships within 2 days via
10.00% off
€19.01 /unit
This product can only be shipped in multiples of 5Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Milling Insert |
| Ansi Code | CPNT120408T |
| Chip-breaker | Yes |
| Chip-breaker Style | On One Side |
| Clearance Angle | 11° |
| Coating Process | CVD |
| Corner Radius | 1/32" |
| Cutting Direction | Neutral |
| Cutting Edge Length | 12.9 mm |
| Finish - Machining | Al2O3 |
| For Toolholder | 12391603800 |
| For Use With | M16 Series Slotting Mills |
| Hole Type | 40掳 to 60掳 Countersink Hole |
| Included Angle | 80° |
| Inscribed Circle | 1/2" |
| Insert Holding Type | Taper Screw |
| Insert Size | 09T308 |
| Insert Style | CPNT |
| Iso Number | CPNT120408T |
| Manufacturer Grade | Grade WP35CM |
| Material - Machining | Carbide |
| Measurement System | Fractional Inch |
| Mounting Hole Dia. | 0.2165" |
| Mounting Style | Taper Screw |
| Number Of Cutting Edges | 2 |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Secondary Material Application | Stainless Steel |
| Secondary Material Application Iso Code | M |
| Series | M16 Series |
| Shape | Rhombic |
| Style | CPNT |
| Thickness | 0.1874" |
| Through Hole Inside Dia. | 0.2165" |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Product | Model | Corner Radius | Thickness | Iso Number | Inscribed Circle | Ansi Number | Style | Chip-breaker | Insert Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
6425772 | 0.3 mm | 0.197" | XDET16M5PDFRALP | - | XDET16M5PDFRALP | XDET | Yes | 16M5 | €49.91 | |
 |

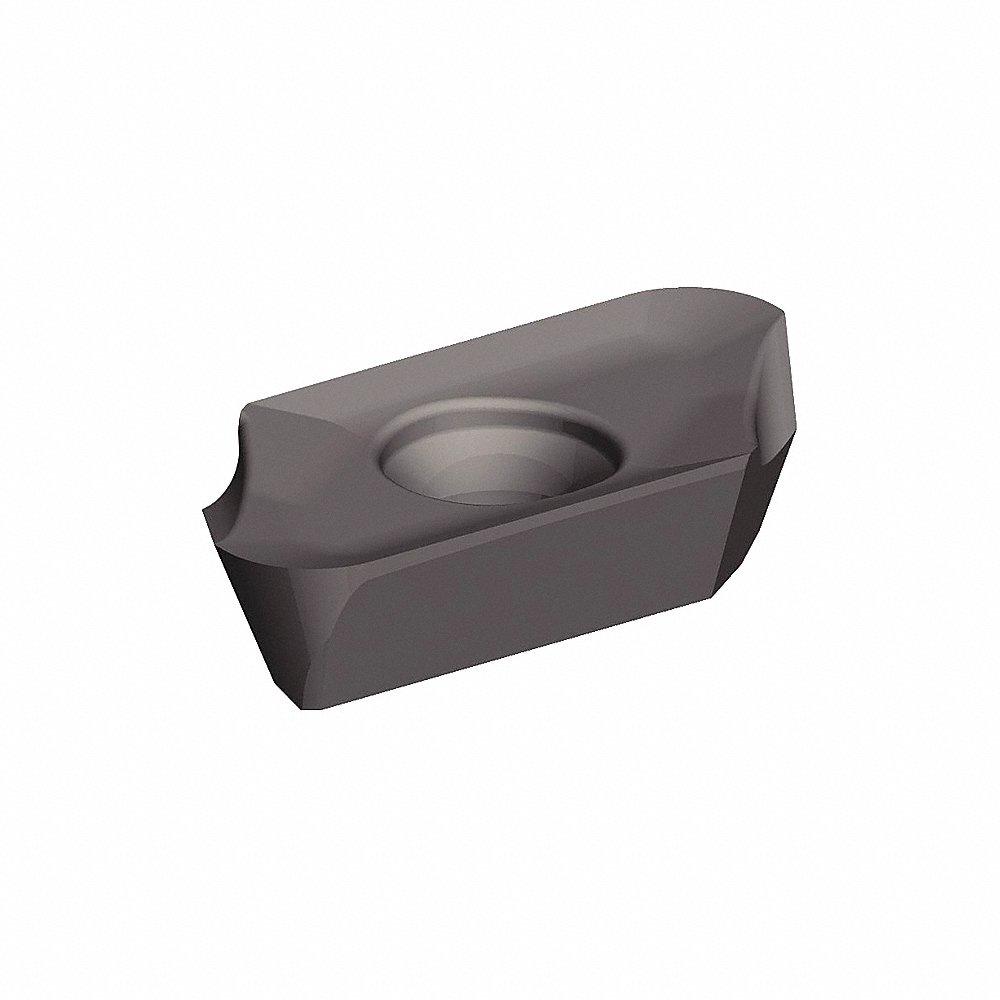

6425773 | 0.4 mm | 0.197" | XDET16M504FRALP | - | XDET16M504FRALP | XDET | Yes | 16M504 | €48.42 | |
 |
6846584 | 0.008" | 3/16" | CCGT120402AL | 1/2" | CCGT4305AL | CCGT | Yes | 4305 | €28.27 | |
 |
2022095 | 1/32" | 0.1874" | CPNT120408T | 1/2" | - | CPNT | Yes | 120408 | €21.51 | |
|
5578223 | 1/32" | 0.1874" | CPNT120408T | 1/2" | - | CPNT | Yes | 120408 | €22.18 | |
|
5903703 | 1/32" | 0.1874" | CPNT120408T | 1/2" | - | CPNT | Yes | 09T308 | €21.12 | |
 |
5903709 | 1/32" | 0.1875" | MDHW120408 | 1/2" | - | MDHW | No | 120408 | €28.27 |
