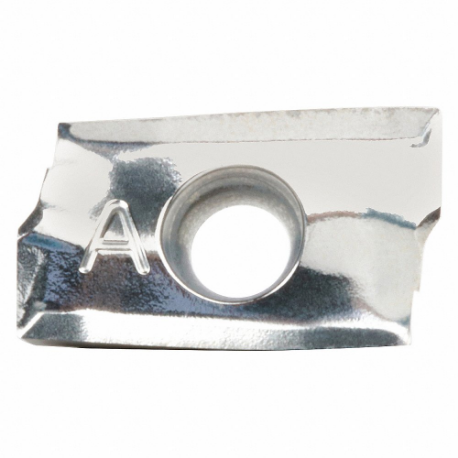

WIDIA 3859299 BDGT11T302FRAL Parallelogram Milling Insert, 0.20 mm Corner Radius
Item: CV2QCKModel: 3859299Cross Ref: 273ZA0 / BDGT11T302FRAL
7 In Stock
Ships within 2 days via
10.00% off
€26.60 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Milling Insert |
| Ansi Code | BDGT11T302FRAL |
| Ansi Number | BDGT11T302FRAL |
| Chip-breaker | Yes |
| Chip-breaker Code | AL |
| Chip-breaker Style | On One Side |
| Clearance Angle | 13° |
| Corner Radius | 0.2 mm |
| Countersink Hole Angle | 40° to 60° |
| Cutting Direction | Right Hand |
| Cutting Edge Length | 11 mm |
| Finish | Bright, Uncoated |
| Finish - Machining | Bright (Uncoated) |
| For Toolholder | 15396450400, 15396451000, 15396451600, 15396452200, 15396452800 |
| For Use With | M6800 Series 90°Shoulder Mills |
| Hole Type | 40° To 60° Countersink Hole |
| Included Angle | 80° |
| Insert Holding Type | Taper Screw |
| Insert Size | 11T302 |
| Insert Style | BDGT |
| Iso Number | BDGT11T302FRAL |
| Material | Carbide |
| Material - Machining | Carbide |
| Mfr. Series | M6800 Series |
| Mounting Hole Dia. | 2.79 mm |
| Mounting Style | Taper Screw |
| Number Of Cutting Edges | 2 |
| Shape | Parallelogram |
| Style | BDGT |
| System Of Measurement | Metric |
| Through Hole Inside Dia. | 2.79 mm |
| Width | 6.64 mm |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | JP |
Product Variants
| Product | Model | Corner Radius | Iso Number | Thickness | Inscribed Circle | Ansi Number | Cutting Edge Length | Number Of Cutting Edges | Clearance Angle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
6407444 | 0.2 mm | XDCT110402PDFRALP | 0.157" | - | - | 11.72 mm | 2 | 15° | €22.11 | |
|
6407445 | 0.2 mm | XDCT110402PDFRALP | 0.157" | - | - | 11.72 mm | 2 | 15° | €24.59 | |
 |
3577965 | 0.2 mm | BDMT070302ERMS | 0.1024" | - | - | 7 mm | 2 | 15° | €20.43 | |
 |
3577963 | 0.2 mm | BDMT070302ERML | 0.1024" | - | - | 7 mm | 2 | 15° | €21.16 | |
 |
3577965 | 0.2 mm | BDMT070302ERMS | 0.1024" | - | - | 7 mm | 2 | 15° | €21.16 | |
|
3577963 | 0.2 mm | BDMT070302ERML | 0.1024" | - | - | 7 mm | 2 | 15° | €21.16 | |
 |
3577965 | 0.2 mm | BDMT070302ERMS | 0.1024" | - | - | 7 mm | 2 | 15° | €21.16 |
