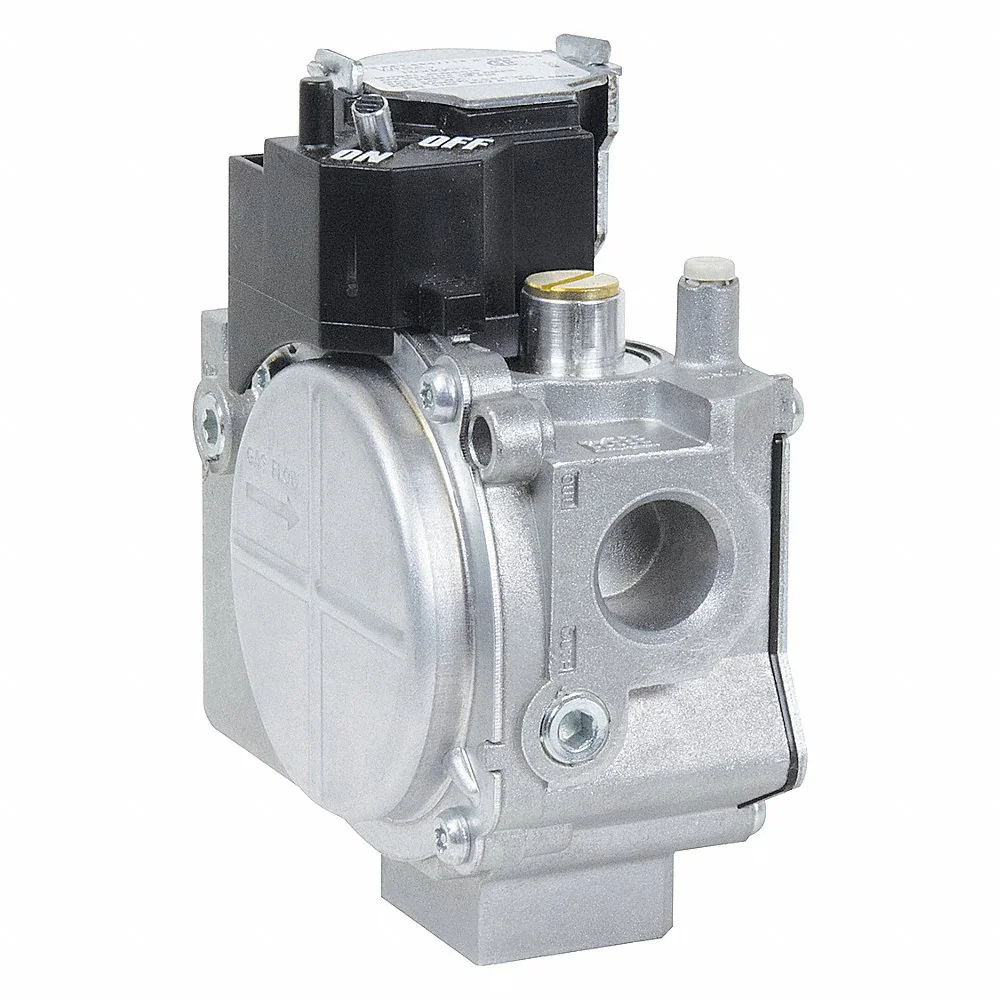

WHITE-RODGERS 36J55-214 Gas Valve, Hot Surface, 140, 000 BTUH Capacity, 24 V Coil Voltage
Item: CV2BKGModel: 36J55-214Cross Ref: 30PL28
7 In Stock
Ships within 2 days via
5.00% off
€197.94 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Gas Valve |
| Ambient Temp. | -40°F to +175°F |
| Amps | 0.43A |
| Btuh | 140000 btuH |
| Coil Voltage | 24V |
| Compatible Fuel Type | Liquid Propane, Natural Gas |
| Electrical Connections | Quick Connect Terminal |
| Flow Direction | Straight Thru |
| For Media | Liquid Propane, Natural Gas |
| Fuel Conversion Kit Included | Yes |
| Gas Type | Liquid Propane, Natural Gas |
| Ignition Type | Hot Surface |
| Included On/off Switch | Yes |
| Included Pilot Generator Kit | Pilot Generator Kit Not Included |
| Inlet Pressure Tap | Yes |
| Inlet Size | 1/2" |
| Inlet/outlet Connection Gender | Female |
| Inlet/outlet Connection Size | 1/2" |
| Inlet/outlet Connection Type | NPT |
| Installation Orientation | Versatile |
| Lp Conversion Kit | Yes |
| Manufacturer Series | 36J Series |
| Max. Heating Capacity | 140000 btuH |
| Max. Operating Temp. | 175°F |
| Mechanical Thermostat Included | No |
| Min. Operating Temp. | -40°F |
| No. Of Stages | 2 |
| Opening Characteristic | Slow Opening |
| Outlet Size | 1/2" |
| Overall Height | 4 1/4" |
| Overall Length | 4 11/16" |
| Pilot Generator Kit Included | No |
| Pilot Type | Direct Spark Ignition, Hot Surface Ignition |
| Port Connection Gender | Female |
| Port Connection Size | 1/2" |
| Pressure Regulator Included | Yes |
| Pressure Tap Connection Size | 5/16" |
| Pressure Tap Inlet Included | Yes |
| Pressure Tap Outlet Included | Included |
| Product Datasheet | white-rodgers-36h33-412.pdf |
| Reducer Bushing Kit | (2) 1/2 x 3/8 |
| Reducer Bushings | (2) 1/2 x 3/8 |
| Sensing Type | Flame Sensor |
| Side Taps | No |
| Side Taps Included | No |
| Type | Slow Opening |
| Valve Design | Dual |
| Voltage | 24V AC |
Shipping Info:
| Ship weight (kg) | 0.92 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Coil Voltage | Type | Outlet Size | Max. Heating Capacity | Opening Characteristic | Voltage | Flow Direction | Inlet/outlet Connection Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
36H32-304 | 24V | Fast Opening | 3/4" | 230000 btuH | Fast Opening | 24V AC | Straight Thru | 3/4" | €373.12 | |
 |
36C03-300 | 24V | Fast Opening | 3/4" | 230000 btuH | Fast Opening | 24V AC | Straight Thru | 1/2" | €253.64 | |
 |
36H32-423 | 24V | Fast Opening | 3/4" | 300000 btuH | Fast Opening | 24V AC | Straight Thru | 3/4" | €246.70 | |
 |
36H64-463 | 24V | Fast Opening | 3/4" | 300000 btuH | Fast Opening | 24V AC | Straight Thru | 3/4" | €321.44 | |
 |
07 64 742S1 | 30 mV | Gas Pilot Safety | 1/2" | 142000 btuH | Fast Opening | 30 mV | Straight Thru | 1/2" | €249.44 | |
 |
36C03U-433 | 750 mV | Fast Opening | 3/4" | 280000 btuH | Fast Opening | 750 mV | Straight Thru | 3/4" | €356.24 | |
 |
36C03-433 | 24V | Fast Opening | 3/4" | 280000 btuH | Fast Opening | 24V AC | Straight Thru | 3/4" | €365.08 |
