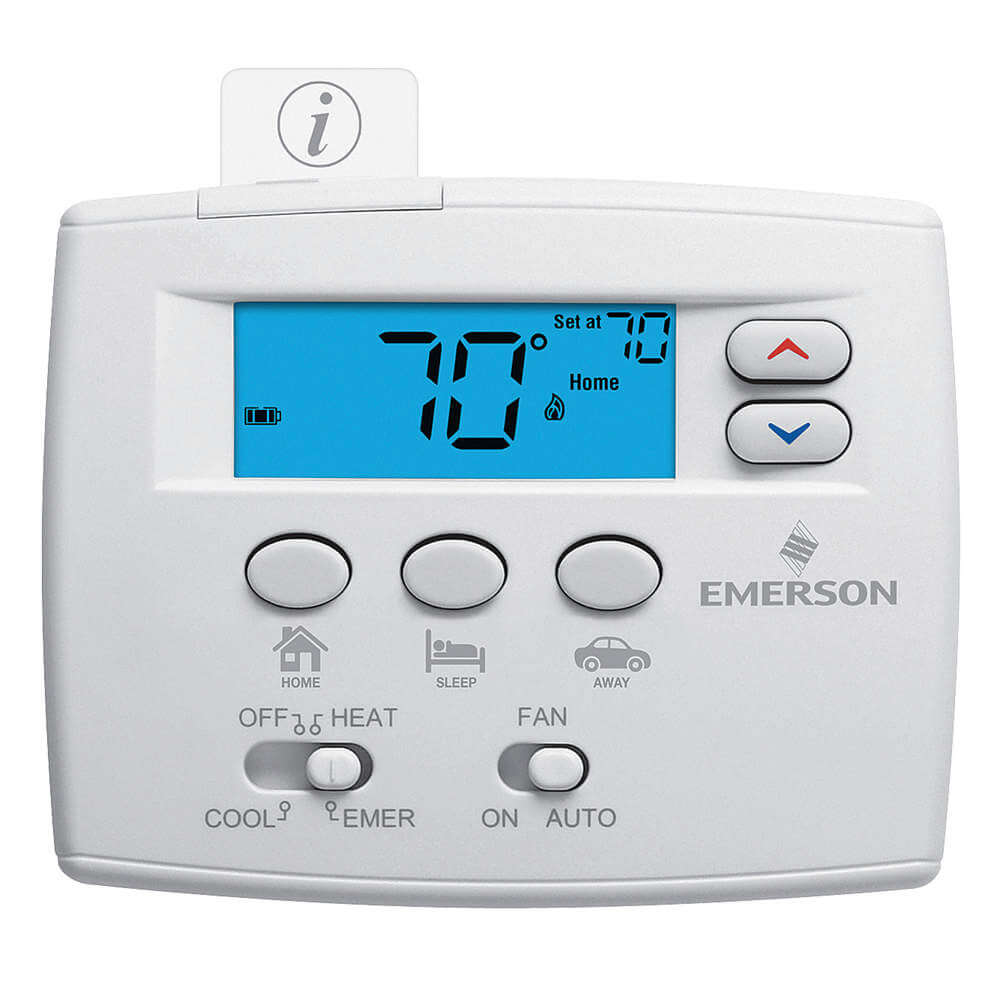

WHITE-RODGERS 1F89EZ-0251 Thermostat Low Voltage Non Programmable 1h/1c
Item: AA8ATAModel: 1F89EZ-0251Cross Ref: 16X604
7 In Stock
Ships within 2 days via
10.00% off
€108.92 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Low Voltage Thermostat |
| Amperage | 2.5A |
| Application | Heat Or Cool |
| Backlit Screen Color | Blue |
| Backlit Type | Key Press Or Continuous With Common Wire |
| Batteries Included | Yes |
| Battery Backup | Yes |
| Battery Type | (2) AA Batteries |
| Changeover Type | Manual |
| Color | White |
| Compatible System Type | Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump With Aux |
| Control Range | +45°F to +99°F |
| Control Type | Push Button |
| Dehumidification Control | No |
| Depth | 1 1/2" |
| Differential Type | Adjustable |
| Digit Size | Easy Read |
| Display | Digital |
| Display Type | Digital |
| Dual Transformer Compatible | Yes |
| Electrical Connection Type | Hardwired |
| Fan Settings | Auto-On |
| Fan Switching | Auto-On |
| Filter Change Reminder | Yes |
| Frequency | 50/60 Hz |
| Height | 3 3/4" |
| Housing Color | White |
| Housing Material | Plastic |
| Humidification Control | No |
| Includes Positive Off | Yes |
| Key Pad Lockout | No |
| Maximum Control Temperature | 99°F |
| Maximum Operating Humidity | 90% |
| Maximum Operating Temperature | 150°F |
| Millivolt Compatible | Yes |
| Minimum Control Temperature | 45°F |
| Minimum Operating Humidity | 0% |
| Minimum Operating Temperature | -40°F |
| Mounting Direction | Horizontal |
| Mounting Location | Wall |
| Mounting Type | Surface Mount |
| Number Of Cooling Stages - Conventional System | 0 |
| Number Of Cooling Stages - Heat Pump System | 1 |
| Number Of Heating Stages - Conventional System | 0 |
| Number Of Heating Stages - Heat Pump System | 2 |
| Number Of Zones | 1 |
| Overall Depth | 1 1/2" |
| Overall Height | 3 3/4" |
| Overall Width | 4 3/4" |
| Power Method | Hardwired/Battery |
| Programming Capability | Not Programmable |
| Remote Sensing Capability | No |
| Shape | Rectangle |
| Stages | 0 H/0 C Conventional |
| Stages Heat | 1 |
| Stages Heat Pump | 2 H/1 C Heat Pump |
| Stages Heating/cooling | 0 H/0 C Conventional, 2 H/1 C Heat Pump |
| System Settings | Cool Heat Off |
| System Switching | Heat-Cool-Off-Emergency |
| Temp. Control Range | +45°F to +99°F |
| Temp. Differential | 0.6°F to 1.7°F |
| Temperature Limiting | No |
| Temperature Scale | Fahrenheit, Celsius |
| Temperature Sensitivity | -1°F to +1°F |
| Temporary Program Override | No |
| Temporary Temperature Hold | No |
| Terminal Designations | C, G, L, O/B, R, W2, Y |
| Thermostat Type | Low Voltage |
| Voltage | 20V AC |
| Width | 4 3/4" |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 4.57 |
| Ship length (cm) | 15.75 |
| Ship width (cm) | 10.92 |
| HS code | 9032100060 |
| Country of Origin | CN |
Product Details:
- 750mV Compatible (Yes)
- Automatic Changeover (No)
- Dehumidification Control (No)
- Dual Transformer Compatible (Yes)
- Filter Indicator (Yes)
- Humidification Control (No)
- Low Battery Indicator (Yes)
- Programmable Fan (No)
- Stages Cool (1)
- Temperature Limiting (No)
- Temporary Temperature Hold (No)
Product Variants
| Product | Model | Application | Terminal Designations | Overall Width | Battery Backup | Depth | Height | Control Type | Mounting Direction | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

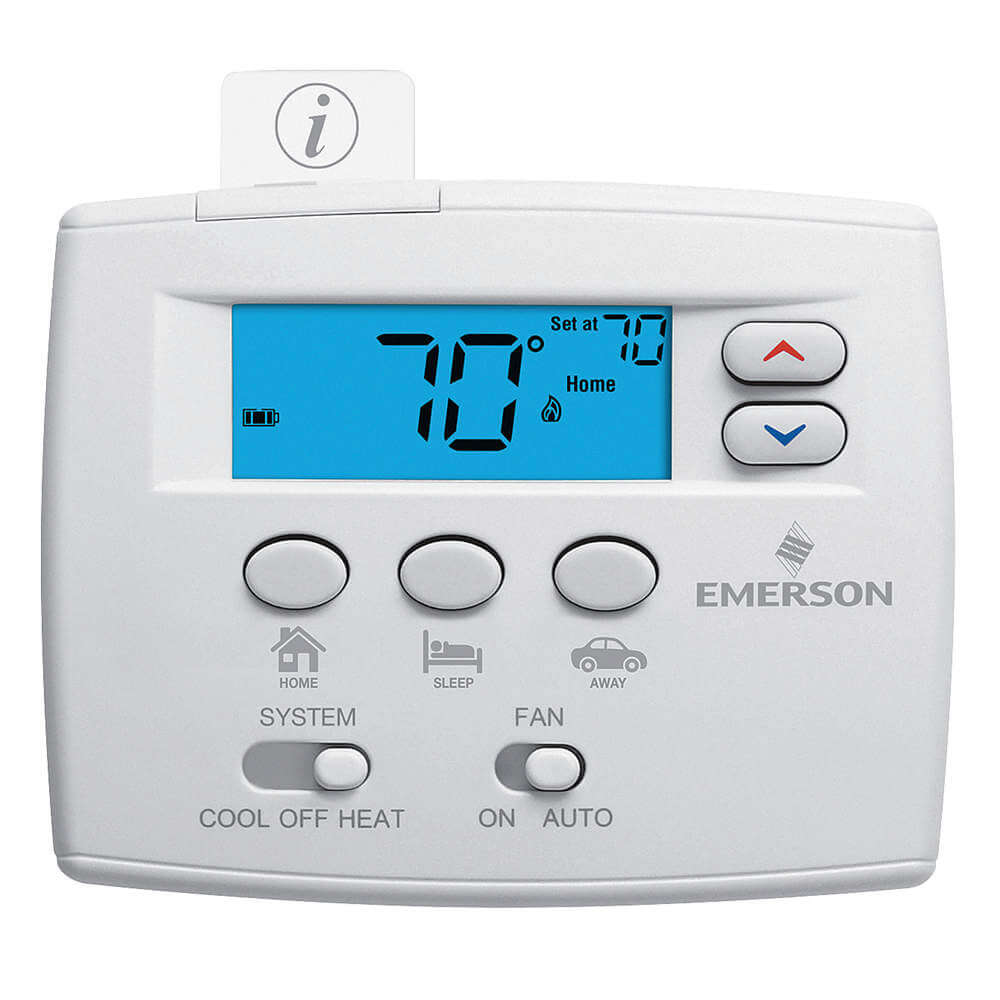

1F86EZ-0251 | Heat Or Cool | C, G, O, B, R, W, Y | 4 3/4" | Yes | 1 1/2" | 3 3/4" | Push Button | Horizontal | €106.68 | |
 |

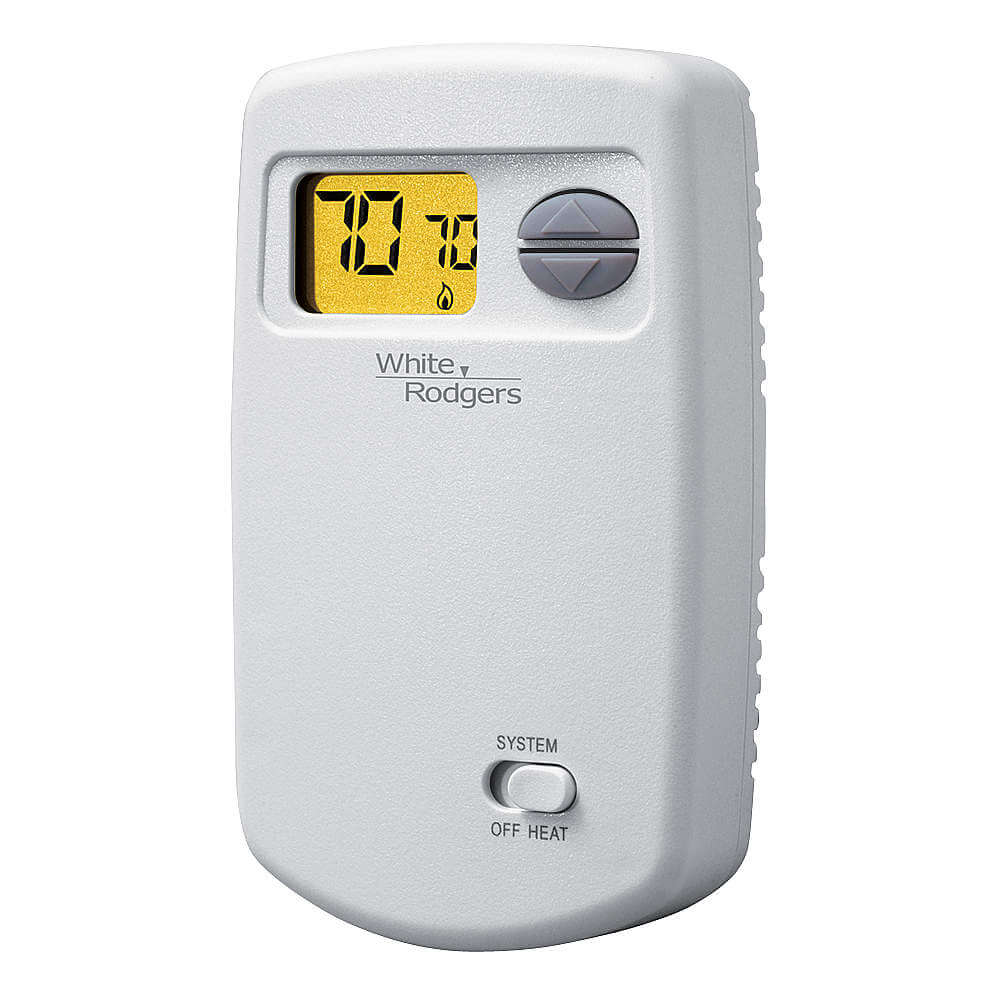

1E78-140 | Heat Only | Rh, W | 3 3/16" | No | 1 1/8" | 5 1/2" | Slide Switch | Vertical | €61.15 |
