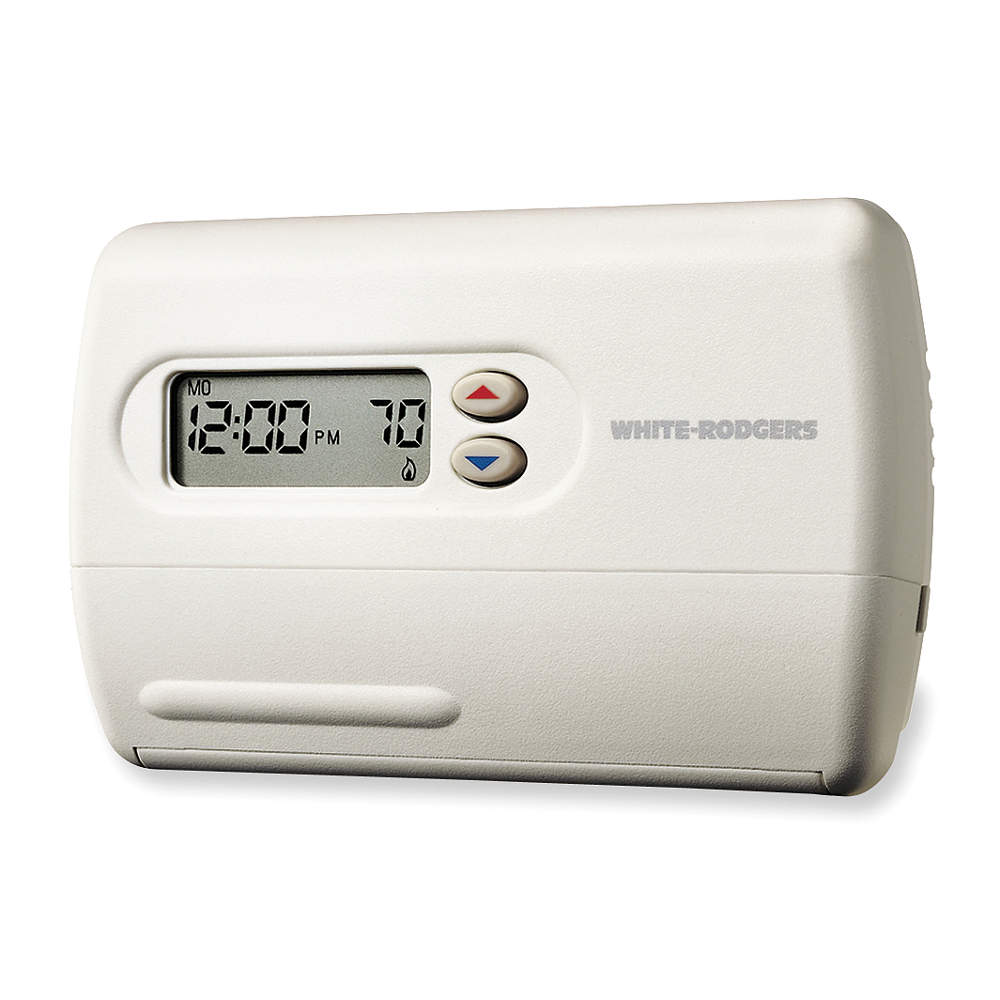

WHITE-RODGERS 1F82-261 Digital Thermostat 2h 1c Hp 5-1-1program

Item: AD2CRDModel: 1F82-261Cross Ref: 3MY14

7 In Stock

Ships within 2 days via

~~€163.94~~

10.00% off

€147.55 /unit

Add To Cart

Request a Quote

Payment

Product Specifications:

Item	Low Voltage Thermostat
Application	Heat And Cool
Backlit Screen	Yes
Battery Backup	No
Battery Backup	Yes
Changeover Type	Manual
Color	White
Compatible System Type	Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump With Aux, Millivolt
Contact Rating	20-30V AC
Control Range	+45°F to +90°F
Control Type	Push Button
Dehumidification Control	No
Depth	1 1/4"
Differential Cool	1.2°F
Differential Heat	0.6°F, 1.5°F
Differential Type	Adjustable
Digit Size	Standard
Display Size	1.8 sq. in.
Display Type	Digital
Dual Transformer Compatible	Yes
Electrical Connection Type	Hardwired
Fan Settings	Auto-On
Fan Switching	Auto-On
Filter Change Reminder	No
Frequency	50/60 Hz
Height	3 3/4"
Housing Color	White
Humidification Control	No
Includes	Mounting Hardware
Includes Batteries	No
Includes Positive Off	Yes
Key Features	Fossil Fuel, Electric Heat Compatible, Permanent Program Retention During Power Loss
Key Pad Lockout	No
Low Battery Indicator	No
Maximum Control Temperature	99°F
Maximum Operating Humidity	90%
Maximum Operating Temperature	105°F
Millivolt Compatible	No
Minimum Control Temperature	45°F
Minimum Operating Humidity	0%
Minimum Operating Temperature	32°F
Mounting Direction	Horizontal
Mounting Location	Wall
Mounting Type	Horizontal/Vertical
Number Of Cooling Stages - Conventional System	0
Number Of Cooling Stages - Heat Pump System	1
Number Of Heating Stages - Conventional System	0
Number Of Heating Stages - Heat Pump System	2
Number Of Zones	1
Overall Depth	1 3/16"
Overall Height	3 7/8"
Overall Width	6"
Power Method	Hardwired
Programming Capability	5-1-1
Programs Per Week	5-1-1
Remote Sensing Capability	No
Shape	Rectangle
Smart Connectivity	No Connectivity
Stages Conventional	0 H/0 C Conventional
Stages Heat	2
Stages Heat Pump	2 H/1 C Heat Pump
Stages Heating/cooling	0 H/0 C Conventional, 2 H/1 C Heat Pump
System Settings	Cool Emergency Heat Heat Off
System Switching	Heat-Cool-Off-Emergency
Temp. Control Range	+45°F to +90°F
Temp. Settings Per Day	4
Temp. Settings Per Day	4.0
Temperature Differential	0.6°F, 1.2°F
Temperature Readout	Yes
Temperature Scale	Fahrenheit, Celsius
Temperature Sensitivity	-1°F to +1°F
Temperature Settings Per Day	4
Temporary Program Override	Yes
Temporary Temperature Hold	Yes
Terminal Designations	C, E, G, L, O/B, R, W2, Y
Thermostat Type	Low Voltage
Voltage	20-30V AC
Width	6"

Shipping Info:

Ship weight (kg)	0.23
Ship height (cm)	17.53
Ship length (cm)	23.37
Ship width (cm)	14.73
HS code	9032100060
Country of Origin	US

Product Details:

750mV Compatible (No)
Dual Transformer Compatible (No)
Filter Indicator (Yes)
Humidification Control (No)
Low Battery Indicator (No)
Programmable Fan (No)
Stages Cool (1)

Product Variants

Model	Display Type	Application	Terminal Designations	Programming Capability	Depth	Control Range	Voltage	Height	Price
1F79-111	Digital	Heat Or Cool	C, E, G, L, O/B, R, W2, Y	Not Programmable	1 1/8"	+45°F to +90°F	20V AC	3 3/4"	€82.40
1E30N-910	Analog	Heat Only	R, W	-	1 1/2"	+50°F to +90°F	20-30V AC	4 1/2"	€69.56
1E56N-444	Analog	Heat And Cool	A, B, G, O, Rc, Rh, W, Y	-	1 5/8"	+50°F to +90°F	20-30V AC	4 1/2"	€64.68
1F56N-444	Analog	Heat And Cool	A, B, G, O, Rc, Rh, W, Y	-	1 5/8"	+50°F to +90°F	20-30V AC	-	€69.56
1E50N-301	Analog	Heat Only	RH, W	-	1 5/8"	+50°F to +90°F	20-30V AC	4 1/2"	€64.35

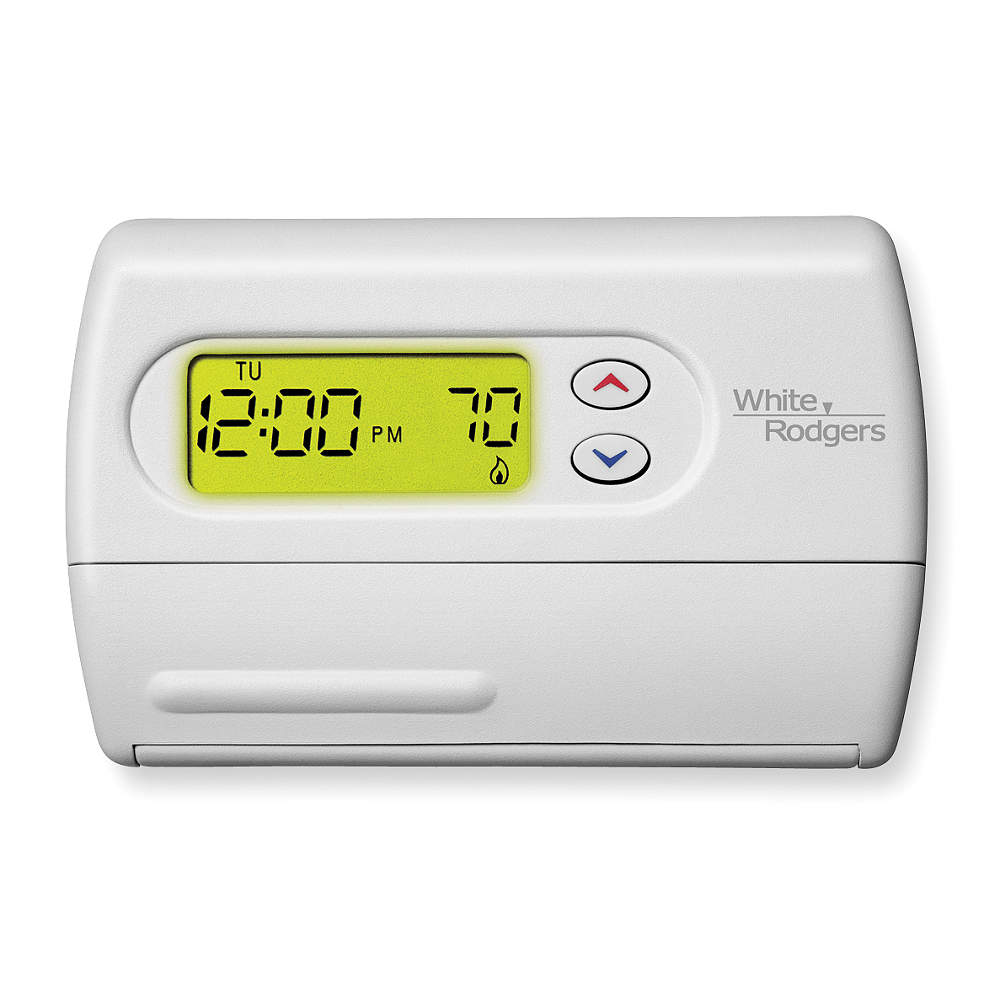

1F80-361	Backlit	-	-	-	1 1/4"	+45°F to +90°F	24V AC	3 3/4"	€159.48
1C20-101	Analog	Heat Only	RH, W	-	1 1/2"	+50°F to +90°F	30V AC	3 3/4"	€26.44
