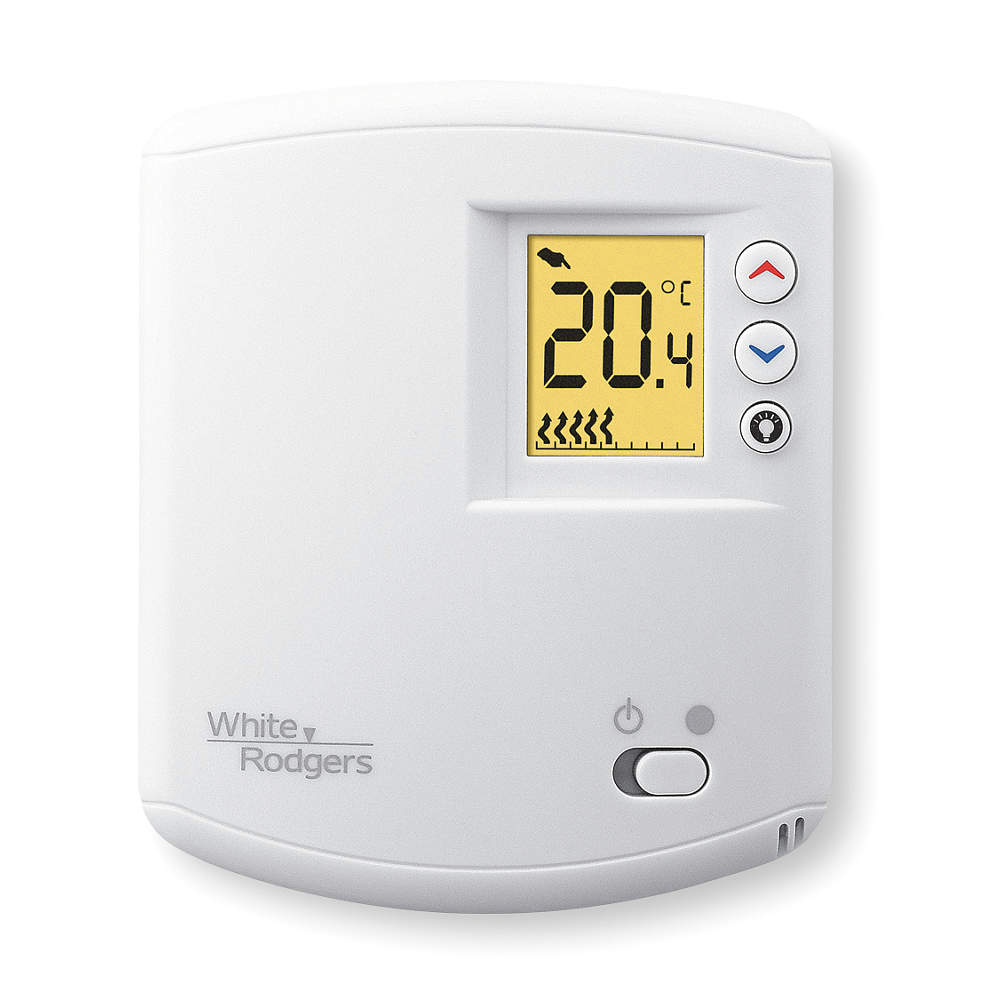

WHITE-RODGERS 1E65-144 Line Voltage Thermostat Standby Switch
Item: AC2WJDModel: 1E65-144Cross Ref: 2NKW5
7 In Stock
Ships within 2 days via
10.00% off
€125.02 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Line Voltage Thermostat |
| Application | Heat Only |
| Backlit Screen | No |
| Color | White |
| Compatible System Type | Electric Heating |
| Contact Rating Resistive @ 120v | 16.7A |
| Contact Rating Resistive @ 240v | 16.7A |
| Control Range | +45°F to +90°F |
| Control Type | Slide Switch |
| Depth | 1 1/4" |
| Differential | 1°F |
| Differential Type | Adjustable |
| Display Type | Digital |
| Fan Settings | No Fan Setting |
| Frequency | 50/60 Hz |
| Full Load Amps @ 120v | 16.7A |
| Full Load Amps @ 120v | 16.7 |
| Full Load Amps @ 240v Ac | 16.7A |
| Full Load Amps @ 240vac | 16.7 |
| Height | 5" |
| Housing Color | White |
| Housing Material | Plastic |
| Includes | Mounting Hardware |
| Includes Positive Off | Yes |
| Input Voltage | 120-240V |
| Key Pad Lockout | No |
| Maximum Control Temperature | 90°F |
| Maximum Operating Humidity | 85% |
| Maximum Operating Temperature | 99°F |
| Minimum Control Temperature | 45°F |
| Minimum Operating Temperature | 32°F |
| Mounting Direction | Vertical |
| Mounting Location | Junction Box |
| Mounting Type | Vertical |
| Number Of Heating Stages | 1 |
| Number Of Stages | 1 |
| Number Of Switches | 1 |
| Overall Depth | 1 1/4" |
| Overall Height | 5" |
| Overall Width | 4 3/16" |
| Resistive Amps @ 208v Ac | 16.7A |
| Resistive Amps @ 208vac | 16.7A |
| Sensor Type | Thermistor |
| Standards | CSA |
| Switch Action | Open On Rise |
| Switch Type | SPST |
| System Settings | Heat Off |
| Temp. Control Range | +45°F to +90°F |
| Temp. Sensitivity | 0.2°F |
| Temp. Sensitivity | 0.2 Degrees F |
| Temp. Settings Per Day | 1 |
| Temperature Differential | 1°F |
| Temperature Readout | Yes |
| Temperature Scale | Fahrenheit, Celsius |
| Thermostat Type | Line Voltage |
| Voltage | 120V AC |
| Voltage Range | 120-240V AC |
| Width | 4.187" |
Shipping Info:
| Ship weight (kg) | 0.33 |
| Ship height (cm) | 17.02 |
| Ship length (cm) | 34.8 |
| Ship width (cm) | 13.97 |
| HS code | 9032100030 |
| Country of Origin | US |
