WHITE-RODGERS 16E09-101 Electronic Temperature Control 24-240v
Item: AD4YMTModel: 16E09-101Cross Ref: 44R204
7 In Stock
Ships within 2 days via
5.00% off
€155.79 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Line Voltage Thermostat |
| Application | Heating Control, Refrigeration |
| Capillary Length | 7 1/2" |
| Capillary Length | 7-1/2" |
| Color | Gray |
| Contact | SPDT x 1 |
| Contact Form | SPDT |
| Contact Type | SPDT |
| Control Range | -40°F to +220°F |
| Depth | 2.562" |
| Differential | +1°F to +30°F |
| Display Type | Digital |
| Full Load Amps @ 120v | 16A |
| Full Load Amps @ 240v | 8A |
| Full Load Amps @ 240vac | 8A |
| Height | 6 3/4" |
| Housing Material | Polyethylene |
| Hp @ 120v | 1 hp |
| Hp @ 240v | 1 hp |
| Input Voltage | 120/208/240/24V AC |
| Ip Rating | Not Rated |
| Locked Rotor Amps @ 120v | 96A |
| Locked Rotor Amps @ 240v | 48A |
| Max. Control Temp. | 220°F |
| Max. Temp. Differential Setting | 30°F |
| Min. Control Temp. | -40°F |
| Min. Temp. Differential Setting | 1°F |
| Mounting Type | Vertical |
| Nema Rating | 1 |
| Nema/ip Rating | 1/Not Rated |
| No. Of Contacts | 1 |
| No. Of Relay Inputs | 1 |
| No. Of Relay Outputs | 1 |
| No. Of Relay/analog Outputs | 1 Relay |
| No. Of Sensor Inputs | 1 |
| No. Of Sensors Included | 1 |
| No. Of Spdt Outputs | 1 |
| No. Of Stages | 1 |
| No. Of Switches | 2 |
| Number Of Relay Inputs | 1 |
| Number Of Relay Outputs | 1 |
| Number Of Switches | 2 |
| Overall Depth | 2 5/8" |
| Overall Height | 6 3/4" |
| Overall L X W | 6 3/4" x 3" |
| Overall Length X Width | 6 3/4" x 3" |
| Overall Width | 3" |
| Pilot Duty Contacts | 125 VA |
| Pilot Duty Contacts (va) | 125VA |
| Product Type | Refrigeration Control |
| Sensing Bulb Dia. | 1/4" |
| Sensing Bulb Length | 2" |
| Sensor Type | NCT |
| Switch Action | Open, Close On Rise |
| Switch Type | SPDT |
| Temp. Control Function | Heat And Cool |
| Temp. Settings Per Day | 1 |
| Variable Output Voltage | No |
| Voltage | 24-240V AC |
| Width | 3" |
Shipping Info:
| Ship weight (kg) | 0.59 |
| Ship height (cm) | 9.91 |
| Ship length (cm) | 19.56 |
| Ship width (cm) | 9.14 |
| HS code | 9032100030 |
| Country of Origin | US |
Product Variants
| Product | Model | Switch Type | Switch Action | Locked Rotor Amps @ 120v | Locked Rotor Amps @ 240v | Voltage | Capillary Length | Max. Control Temp. | Min. Control Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

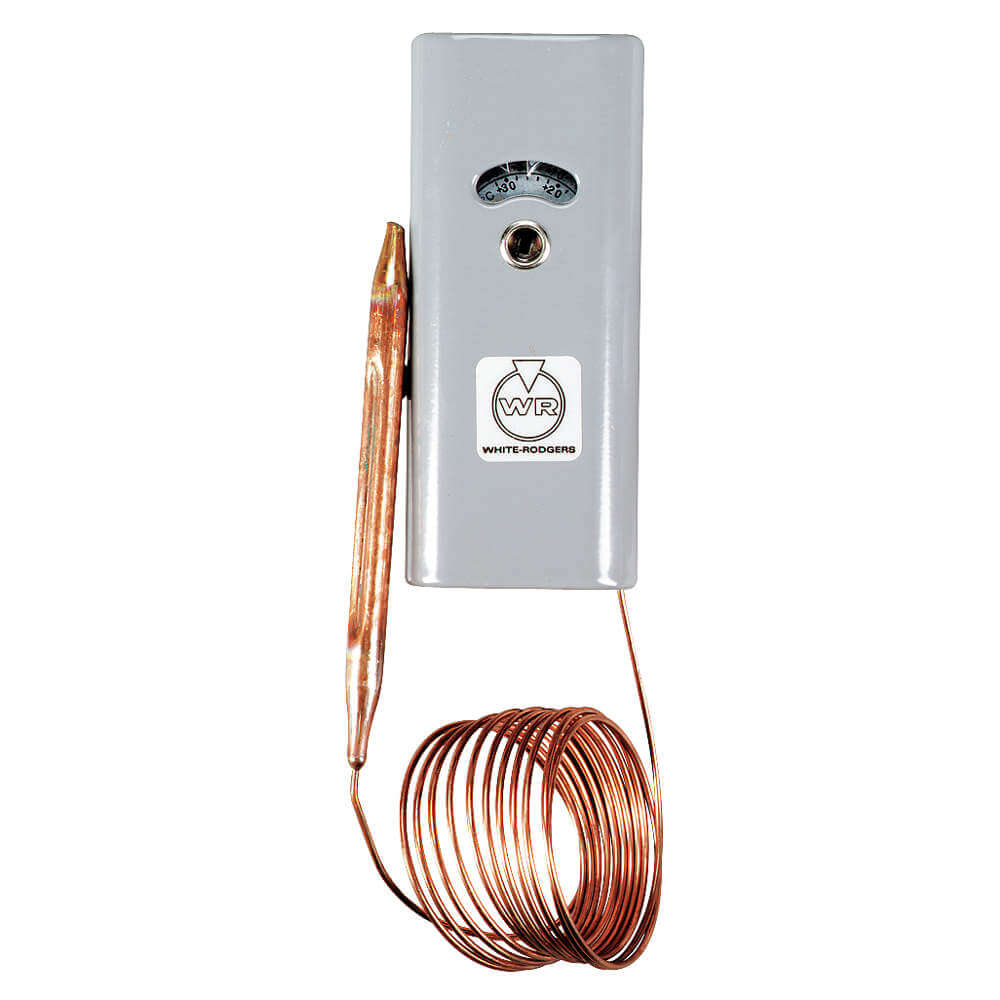

1609-101 | SPST | Close On Rise | 44.5A | 22.2A | 120-240V AC | 60" | 90°F | -30°F | €130.69 |
