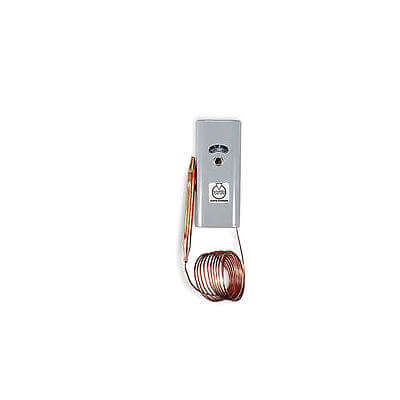

WHITE-RODGERS 1687-9 Thermostat Remote Bulb
Item: AB9MTXModel: 1687-9Cross Ref: 2E399
7 In Stock
Ships within 2 days via
10.00% off
€131.99 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Line Volt Mechanical Tstat |
| Bulb Dia. | 3/8" |
| Bulb Length | 5 1/4" |
| Capillary Length | 96" |
| Changeover Type | Manual |
| Color | Gray |
| Compatible System Type | Solenoid Refrigerant Valve, Zoning Systems |
| Contact Rating | 120/240V AC |
| Contact Rating Resistive @ 120v | 24A |
| Contact Rating Resistive @ 240v | 20A |
| Contact Type | Snap Action |
| Control Type | Concealed Dial |
| Depth | 2 9/16" |
| Differential | +4.5°F to +40°F |
| Differential Type | Adjustable |
| Electrical Connection Type | Hardwired |
| Enclosure Color | Gray |
| Enclosure Material | Steel |
| Enclosure Nema Rating | 2 |
| Full Load Amps @ 120v | 15A , 7.4A |
| Full Load Amps @ 120v | 15A |
| Full Load Amps @ 240v Ac | 3.7A |
| Height | 5 3/8" |
| Includes | Bulb Mounting Clip |
| Inductive Amps @ 120v | 7.4A |
| Inductive Amps @ 240v | 3.7A |
| Key Features | Top And Bottom Knockouts |
| Maximum Control Temperature | 90°F |
| Maximum Operating Temperature | 140°F |
| Minimum Control Temperature | -30°F |
| Minimum Operating Temperature | -29°F |
| Mounting Location | Indoor, Outdoor |
| Number Of Cooling Stages | 1 |
| Number Of Heating Stages | 0 |
| Number Of Poles | 1 |
| Number Of Switches | 1 |
| Operating Temperature Range | -29°F to +140°F |
| Overall Depth | 2 5/8" |
| Overall Height | 5 3/8" |
| Overall Width | 2 3/8" |
| Remote Sensing Bulb Included | Yes |
| Remote Sensing Capability | Yes |
| Sensing Bulb Dia. | 3/8" |
| Sensing Bulb Length | 5-1/4" |
| Sensing Bulb Length | 5 1/4" |
| Sensor Location | Remote |
| Sensor Type | Hydraulic Capillary Bulb Copper |
| Switch Action | Open/Close On Rise |
| Switch Type | SPDT |
| Temp. Differential | 4.5°F to 40°F |
| Temperature Scale | Fahrenheit, Celsius |
| Thermostat Programmable | No |
| Thermostat Type | Indoor Single Stage Controls |
| Voltage | 120-240V AC |
| Voltage Range | 120-240V AC |
| Width | 2 5/16" |
Shipping Info:
| Ship weight (kg) | 0.74 |
| Ship height (cm) | 6.6 |
| Ship length (cm) | 31.75 |
| Ship width (cm) | 14.48 |
| HS code | 9032100030 |
| Country of Origin | US |
