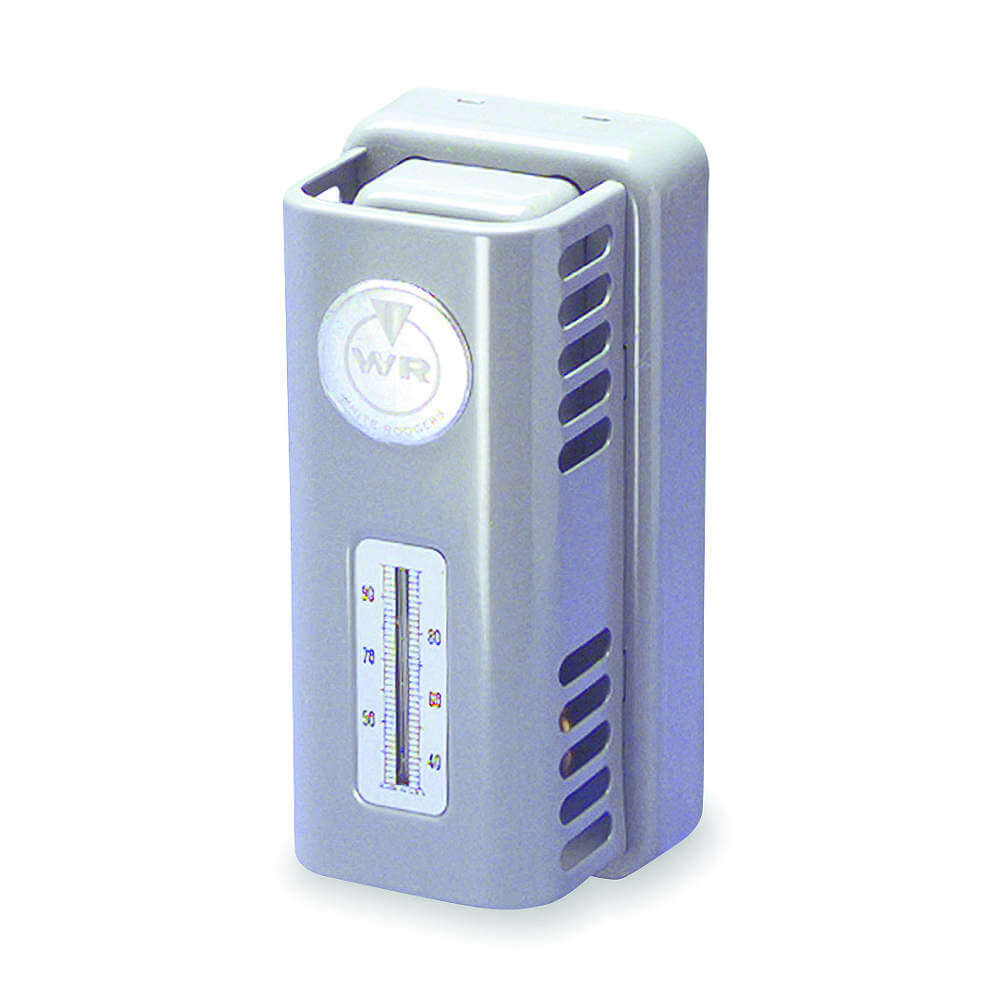

WHITE-RODGERS 152-9 Thermostat Linevoltage
Item: AB9MTPModel: 152-9
7 In Stock
Ships within 2 days via
10.00% off
€289.17 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Line Volt Mechanical Tstat |
| Application | Heat Only |
| Color | Gray |
| Compatible System Type | Electric Heating |
| Contact Rating | 120/240V AC |
| Contact Rating Resistive @ 120v | 25A |
| Contact Rating Resistive @ 240v | 22A |
| Contact Rating Resistive @ 277v | 18A |
| Control Range | +55°F to +85°F |
| Control Type | Exposed Dial |
| Depth | 2 1/2" |
| Differential | 2°F |
| Differential Type | Fixed |
| Display Type | Analog |
| Enclosure Color | Gray |
| Full Load Amps @ 120v | 15A |
| Full Load Amps @ 120v Ac | 14A |
| Full Load Amps @ 240v Ac | 7A |
| Full Load Amps @ 240vac | 7A |
| Height | 6" |
| Housing Color | Gray |
| Housing Material | Steel |
| Includes | Manual On Position |
| Includes Positive Off | No |
| Inductive Amps @ 120v | 14A |
| Inductive Amps @ 240v | 7A |
| Locked Rotor Amps @ 120v | 25A |
| Locked Rotor Amps @ 240v | 22A |
| Maximum Control Temperature | 85°F |
| Minimum Control Temperature | 55°F |
| Mounting Direction | Vertical |
| Mounting Location | Junction Box, Wall |
| Mounting Type | Recessed Mount, Surface Mount |
| Number Of Heating Stages | 1 |
| Number Of Poles | 1 |
| Number Of Switches | 1 |
| Overall Depth | 2 1/4" |
| Overall Height | 4 1/2" |
| Overall Width | 4 1/2" |
| Remote Control Functions | No Remote Control Included |
| Switch Action | Open On Rise |
| Switch Type | SPST |
| System Settings | On |
| Temp. Control Range | +55°F to +85°F |
| Temp. Sensitivity | 2°F |
| Temp. Sensitivity | 2 Degrees F |
| Temperature Differential | 2°F |
| Temperature Readout | Yes |
| Temperature Scale | Fahrenheit |
| Temperature Sensitivity | -2°F to +2°F |
| Thermostat Type | Line Voltage |
| Voltage | 120-240V AC |
| Voltage Range | 120-240V AC |
| Width | 2 3/4" |
Shipping Info:
| Ship weight (kg) | 0.81 |
| Ship height (cm) | 19.3 |
| Ship length (cm) | 11.94 |
| Ship width (cm) | 8.38 |
| HS code | 9032100030 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Depth | Differential | Contact Rating Resistive @ 240v | Full Load Amps @ 120v | Compatible System Type | Display Type | Application | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
152-10 | 4 1/2" | 2 1/4" | 3°F | 20A | 14A | Electric Heating | Analog | Heat Only | €317.68 |
