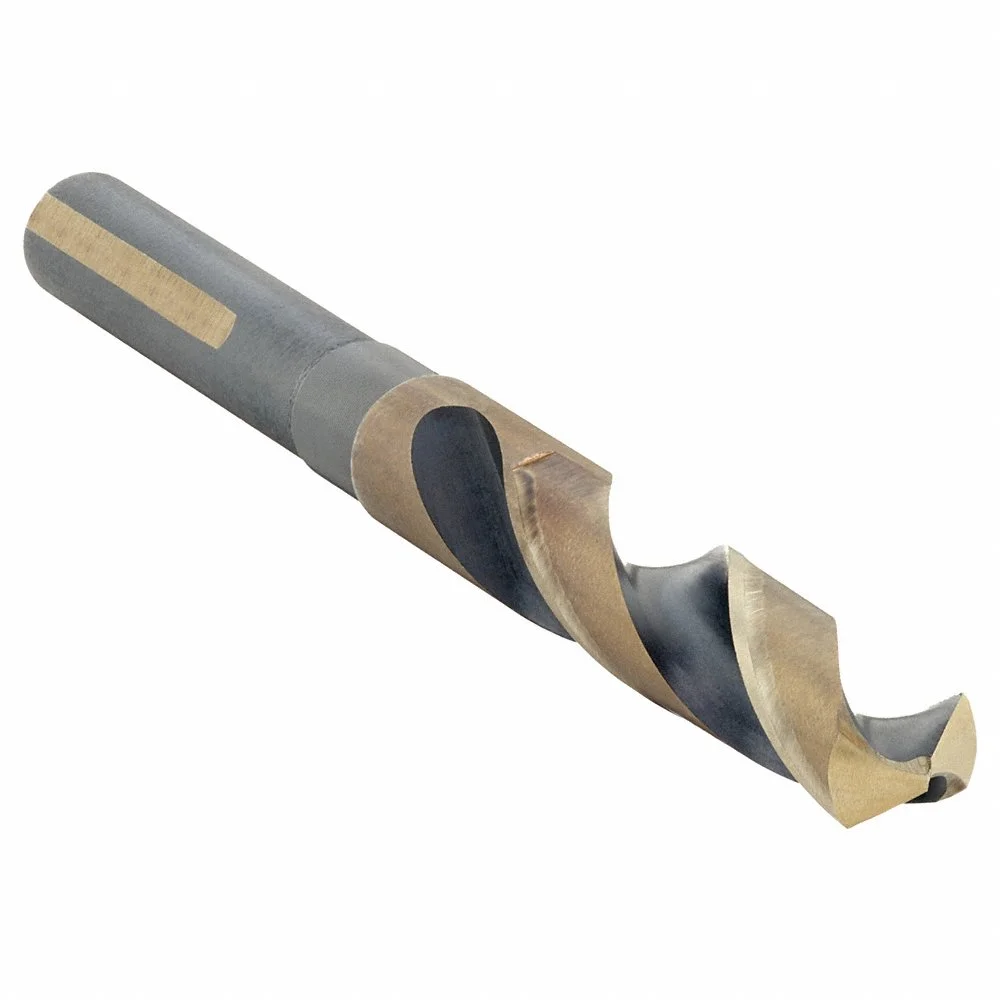

WESTWARD 6WUZ0 Reduced Shank Drill Bit, 1-3/16 Inch Size, 118 Deg. Split Point, Black & Gold HSS, 3-Flats Shank
Item: AF2PFZModel: 6WUZ0
7 In Stock
Ships within 2 days via
€121.80 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Reduced Shank Drill Bit |
| Application | For Alloy And Carbon Steel, Cast Iron And Wood |
| Color | Black, Gold |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 1.1875 |
| Depth Dia. Ratio | 5xd |
| Dimensions Type | Fractional Inch |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 1 3/16" |
| Drill Point | 118° |
| Finish | Black, Gold |
| Finish-machining | Black, Gold |
| Flute Length | 3 1/8" |
| Flute Type | Spiral |
| Grade | General Purpose |
| Helix Angle | 32° |
| List Number | Non-Listed |
| Material | High Speed Steel |
| Material Grade-machining | General Purpose |
| Material-machining | High Speed Steel |
| Max. Drilling Depth | 2 1/2" |
| No. Of Flutes | 2 |
| No. Of Pieces | 1 |
| Overall Length | 6" |
| Point Type | Split Point |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Secondary Material Application | Non Ferrous Material |
| Secondary Material Application Iso Code | M |
| Shank Dia. | 1/2" |
| Shank Length | 2 7/8" |
| Shank Type-machining | Straight With Three Flats |
| Silver & Deming Drill | Yes |
| Size | 1.187" |
| Standards | Not Rated |
| System Of Measurement | Fractional Inch |
Shipping Info:
| Ship weight (kg) | 0.43 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 20.32 |
| HS code | 8207502055 |
| Country of Origin | US |
Product Variants
| Model | Finish | Material | Decimal Equivalent | Drill Bit Size | Drill Bit Point Type | Color | Max. Drilling Depth | Shank Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2UFX7 | Black Oxide | High Speed Steel | 1.0625 | 1 1/16" | Conventional Point | - | - | 1/2" | €94.55 | |
| 2UFX8 | Black Oxide | High Speed Steel | 1.125 | 1 1/8" | Conventional Point | - | 3" | 1/2" | €66.95 | |
| 2UFX9 | Black Oxide | High Speed Steel | 1.1875 | 1 3/16" | Conventional Point | - | - | 1/2" | €113.57 | |
| 2UFY1 | Black Oxide | High Speed Steel | 1 1/4" | 1 1/4" | Conventional Point | - | 2 3/4" | 1/2" | €98.99 | |
| 2UFY2 | Black Oxide | High Speed Steel | 1.3125 | 1 5/16" | Conventional Point | - | - | 1/2" | €222.93 | |
| 2UFY4 | Black Oxide | High Speed Steel | 1.4375 | 1 7/16" | Conventional Point | - | - | 1/2" | €244.87 | |
| 2UFY5 | Black Oxide | High Speed Steel | 1 1/2" | 1 1/2" | Conventional Point | - | - | 1/2" | €262.45 |
