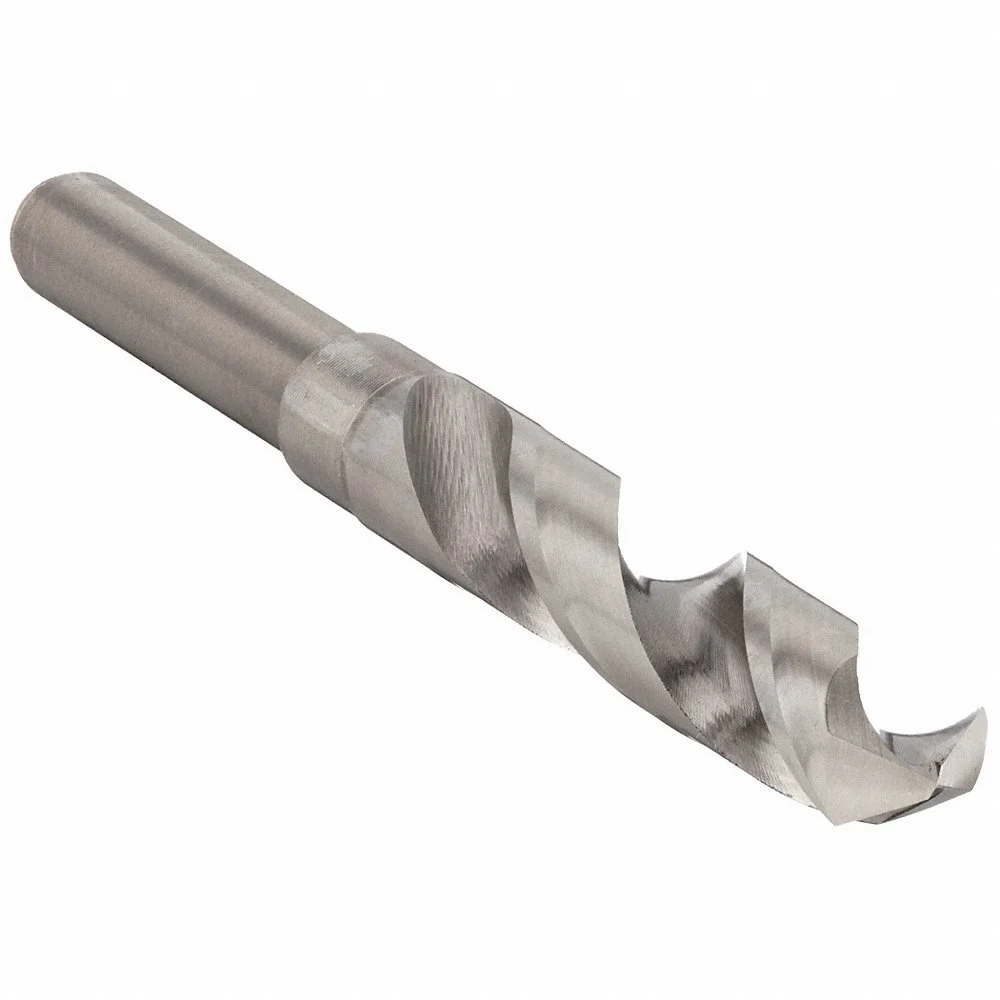

WESTWARD 6WUX2 Reduced Shank Drill Bit, 49/64 Inch Size, 118 Deg. Split Point, Black & Gold HSS, 3-Flats Shank
Item: AF2PFEModel: 6WUX2
7 In Stock
Ships within 2 days via
13.00% off
€47.33 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Reduced Shank Drill Bit |
| Application | For Alloy And Carbon Steel, Cast Iron And Wood |
| Color | Black, Gold |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.7656 |
| Depth Dia. Ratio | 4Xd |
| Dimensions Type | Fractional Inch |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 49/64" |
| Drill Dia. Tolerance | -0.0012 to 0" |
| Drill Point | 118° |
| Finish | Black, Gold |
| Finish-machining | Black, Gold |
| Flute Length | 3 1/8" |
| Flute Type | Spiral |
| Grade | General Purpose |
| Helix Angle | 32° |
| List Number | Non-Listed |
| Material | High Speed Steel |
| Material Grade-machining | General Purpose |
| Material-machining | High Speed Steel |
| Max. Drilling Depth | 3" |
| No. Of Flutes | 2 |
| No. Of Pieces | 1 |
| Overall Length | 6" |
| Point Type | Split Point |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Magnesium, Steel |
| Primary Material Application Iso Code | M, P |
| Secondary Material Application | Ferrous Material |
| Secondary Material Application Iso Code | K, N |
| Shank Dia. | 1/2" |
| Shank Length | 2 7/8" |
| Shank Type-machining | Straight With Three Flats |
| Silver & Deming Drill | Yes |
| Spiral Direction | Right Hand |
| System Of Measurement | Imperial |
| Web Construction | Tapered |
Shipping Info:
| Ship weight (kg) | 0.21 |
| Ship height (cm) | 3.3 |
| Ship length (cm) | 20.83 |
| Ship width (cm) | 3.3 |
| HS code | 8207502055 |
| Country of Origin | US |
Product Variants
| Model | Material | Finish-machining | Material-machining | Drill Bit Size | Max. Drilling Depth | Primary Material Application Iso Code | Finish | Drill Bit Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2UFX7 | High Speed Steel | Black Oxide | High Speed Steel | 1 1/16" | - | - | Black Oxide | High Speed Steel | €111.23 | |
| 2UFX8 | High Speed Steel | Black Oxide | High Speed Steel | 1 1/8" | 3" | M, P | Black Oxide | High Speed Steel | €78.76 | |
| 2UFX9 | High Speed Steel | Black Oxide | High Speed Steel | 1 3/16" | - | - | Black Oxide | High Speed Steel | €133.61 | |
| 2UFY1 | High Speed Steel | Black Oxide | High Speed Steel | 1 1/4" | 2 3/4" | P | Black Oxide | High Speed Steel | €116.46 | |
| 2UFY2 | High Speed Steel | Black Oxide | High Speed Steel | 1 5/16" | - | - | Black Oxide | High Speed Steel | €262.27 | |
| 2UFY4 | High Speed Steel | Black Oxide | High Speed Steel | 1 7/16" | - | - | Black Oxide | High Speed Steel | €288.08 | |
| 2UFY5 | High Speed Steel | Black Oxide | High Speed Steel | 1 1/2" | - | - | Black Oxide | High Speed Steel | €308.76 |
