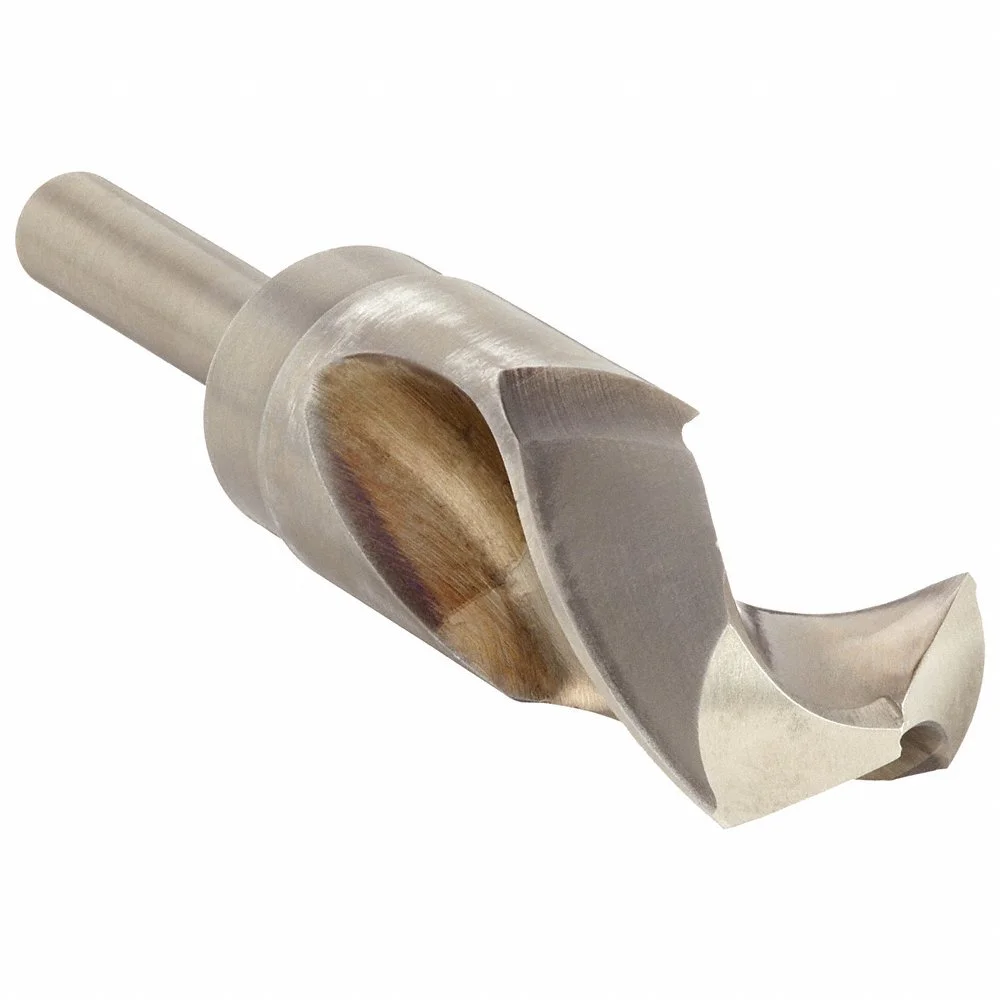

WESTWARD 5TVR4 Silver/deming Drill 31/32 Cobalt Steel 118 Degrees
Item: AE6LRAModel: 5TVR4
7 In Stock
Ships within 2 days via
10.00% off
€160.73 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Reduced Shank Drill Bit |
| Application | Stainless, Alloy Steel, Cast Iron, Copper, Aluminum |
| Color | Amber |
| Coolant Fed | Non-Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.9688 |
| Depthdia. Ratio | 5xd |
| Dimension Type | Fractional Inch |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt Steel |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 31/32" |
| Drill Point | 118° |
| Finish | Amber |
| Finish - Machining | Straw, Bronze |
| Flute Length | 3 1/8" |
| Flute Type | Spiral |
| Grade | General Purpose |
| Helix Angle | 32° |
| List Number | Non-Listed |
| Material | Cobalt Steel |
| Material - Machining | Cobalt |
| Material Grade - Machining | Grade M42 |
| Maximum Drilling Depth | 2 1/2" |
| No. Of Pieces | 1 |
| Number Of Flutes | 2 |
| Overall Length | 6" |
| Point Type | Split Point |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Secondary Material Application | Non Ferrous Material |
| Secondary Material Application Iso Code | M |
| Shank Dia. | 1/2" |
| Shank Length | 2 7/8" |
| Shank Type | Round |
| Shank Type - Machining | Straight |
| Silver & Deming Drill | Yes |
| Standards | Not Rated |
| System Of Measurement | Fractional Inch |
Shipping Info:
| Ship weight (kg) | 0.29 |
| Ship height (cm) | 2.79 |
| Ship length (cm) | 20.07 |
| Ship width (cm) | 2.79 |
| HS code | 8207502055 |
| Country of Origin | US |
Product Variants
| Model | Drill Bit Size | Decimal Equivalent | Max. Drilling Depth | Shank Dia. | Finish | Drill Bit Point Angle | Drill Bit Point Type | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 5TVL8 | 33/64" | 0.5156 | - | 1/2" | Amber | 118° | Split Point | 6" | €70.70 | |
| 5TVL9 | 17/32" | 0.5313 | - | 1/2" | Amber | 118° | Split Point | 6" | €73.29 | |
| 5TVN0 | 35/64" | 0.5469 | - | 1/2" | Amber | 118° | Split Point | 6" | €73.32 | |
| 5TVN1 | 9/16" | 0.5625 | - | 1/2" | Amber | 118° | Split Point | 6" | €79.64 | |
| 5TVN2 | 37/64" | 0.5781 | - | 1/2" | Amber | 118° | Split Point | 6" | €89.41 | |
| 5TVN3 | 19/32" | 0.5938 | - | 1/2" | Amber | 118° | Split Point | 6" | €89.13 | |
| 5TVN5 | 5/8" | 0.625 | - | 1/2" | Amber | 118° | Split Point | 6" | €97.16 |
