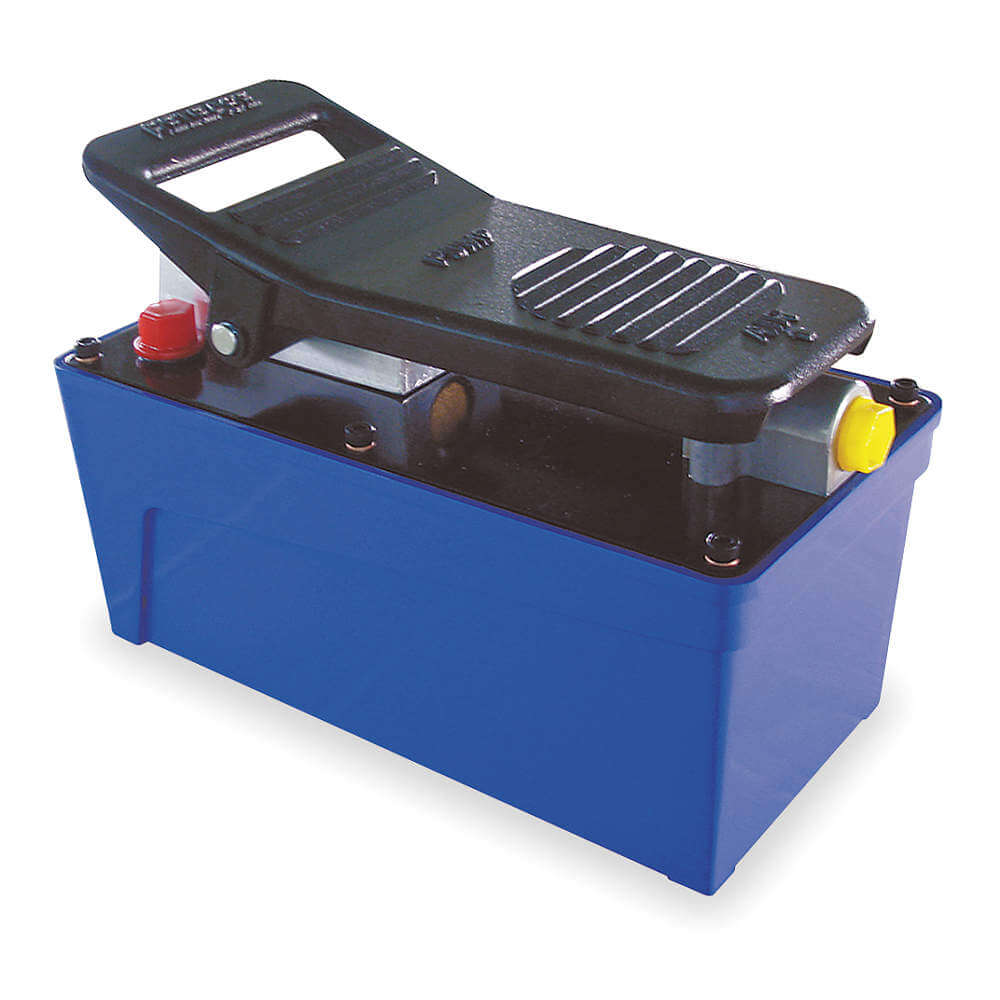

WESTWARD 5ML66 Pump Air Treadle
Get it by Wednesday, Dec 17
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€541.08 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Pump |
| Actuation Type | Foot |
| Air Consumption | 7.8 SCFM |
| Air Inlet Npt (in.) | 1/4 |
| Air Inlet Npt Size | 0.25" |
| Air Intake Connection Size | 1/4" |
| Air Intake Connection Type | NPT |
| Built-in | By-Pass System Protects The Unit From Pressure Overload |
| Control Valve Function | Not Applicable |
| Control Valve Type | Not Applicable |
| Displacement @ 10,000 Psi | 11 cu. in./min. |
| Displacement @ 100 Psi | Not Applicable |
| Displacement @ 5000 Psi | 20 cu. in./min. |
| Displacement @ 700 Psi | 46.4 cu. in./min. |
| Displacement @ No Load | 61 cu. in./min. |
| Features | Internal Relief Valves |
| Fluid Port Npt | 3/8 In. |
| Fluid Port Npt | 3/8" |
| Height | 7 1/8" |
| Length | 10" |
| Max. Air Consumption | 7.8 SCFM |
| Max. Air Intake Pressure | 175 psi |
| Max. Flow Rate | 11 cu. in./min. |
| Max. Operating Pressure | 10000 psi |
| Max. Sound Level | 85 dBA |
| Media Intake Connection Size | 3/8" |
| Min. Sound Level | 70 dBA |
| Oil Capacity | 91.5 cu. in. |
| Oil Displacement @ 10,000 Psi | 11 cu. in./min. |
| Overall Height | 7.3" |
| Overall Length | 10.2" |
| Overall Width | 5.3" |
| Reservoir Capacity | 92 cu. in. |
| Reservoir Capacity | 0.40 Gal. |
| Treadle Design | Two Position |
| Type | Air Powered |
| Width | 5" |
Shipping Info:
| Ship weight (kg) | 8.33 |
| Ship height (cm) | 18.54 |
| Ship length (cm) | 31.75 |
| Ship width (cm) | 16.51 |
| HS code | 8413200000 |
| Country of Origin | TW |
Product Details:
- Oil Displacement @ 0 PSI (61 cu. in./min.)
- Operating Air PSI (90-175)
