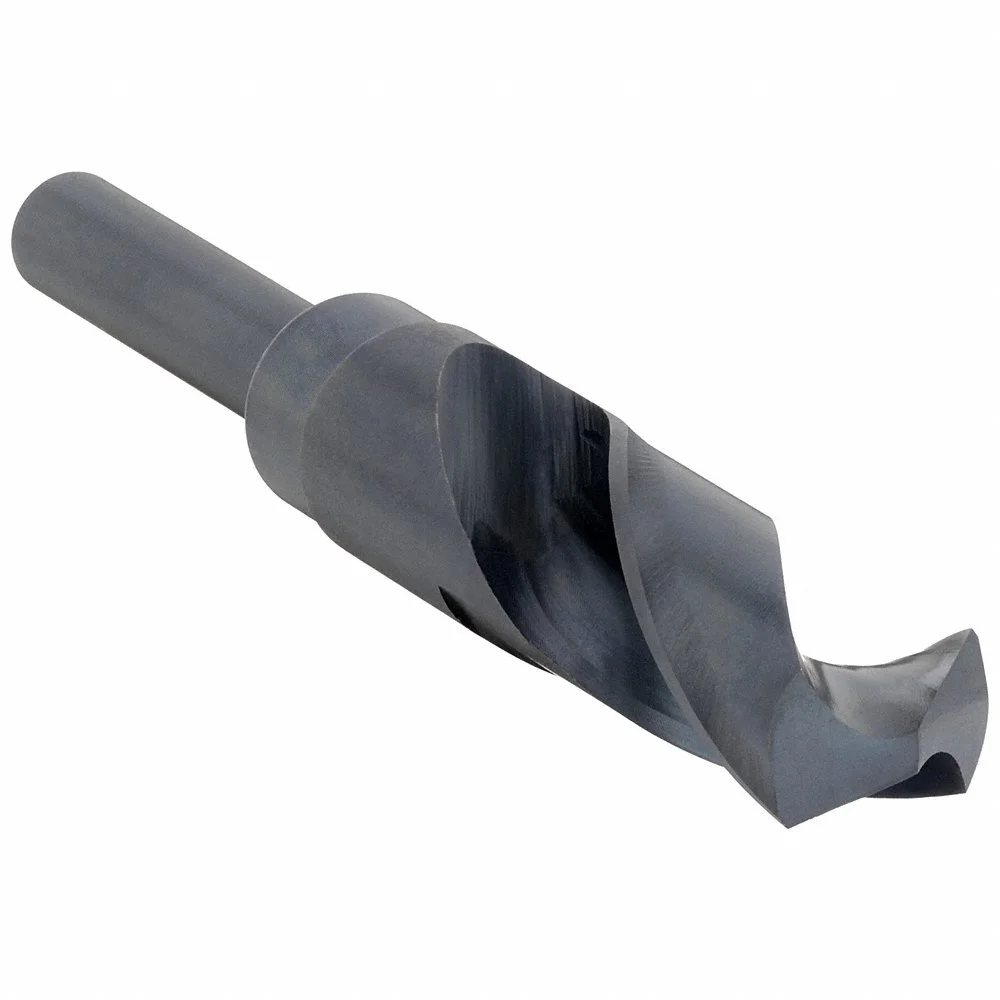

WESTWARD 4UM85 Silver/deming Drill 59/64 High Speed Steel 118 Deg
Item: AD9TMKModel: 4UM85
7 In Stock
Ships within 2 days via
10.00% off
€81.02 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Reduced Shank Drill Bit |
| Coolant Fed | Non-Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.9219 |
| Depthdia. Ratio | 5xd |
| Dimension Type | Fractional Inch |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 59/64" |
| Drill Point | 118° |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 3 1/8" |
| Flute Type | Spiral |
| Grade | General Purpose |
| Helix Angle | 32° |
| List Number | Non-Listed |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | General Purpose |
| Max. Drilling Depth | 2 1/2" |
| No. Of Pieces | 1 |
| Number Of Flutes | 2 |
| Overall Length | 6" |
| Point Type | Conventional Point |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Secondary Material Application | Non Ferrous Material |
| Secondary Material Application Iso Code | M |
| Shank Dia. | 1/2" |
| Shank Length | 2 7/8" |
| Shank Type | Round |
| Shank Type - Machining | Straight |
| Silver & Deming Drill | Yes |
| Standards | Not Rated |
| System Of Measurement | Fractional Inch |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 0.76 |
| Ship length (cm) | 16.26 |
| Ship width (cm) | 0.76 |
| HS code | 8207502055 |
| Country of Origin | US |
Product Variants
| Model | Drill Bit Size | Decimal Equivalent | Max. Drilling Depth | Drill Diameter Tolerance | Shank Dia. | Material | Finish | Flute Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2UFX7 | 1 1/16" | 1.0625 | - | - | 1/2" | High Speed Steel | Black Oxide | 3 1/8" | €121.24 | |
| 2UFX8 | 1 1/8" | 1.125 | 3" | -0.012" to 0" | 1/2" | High Speed Steel | Black Oxide | 3 1/8" | €93.74 | |
| 2UFX9 | 1 3/16" | 1.1875 | - | - | 1/2" | High Speed Steel | Black Oxide | 3 1/8" | €136.58 | |
| 2UFY1 | 1 1/4" | 1 1/4" | - | - | 1/2" | High Speed Steel | Black Oxide | 3 1/8" | €114.51 | |
| 2UFY2 | 1 5/16" | 1.3125 | - | - | 1/2" | High Speed Steel | Black Oxide | 3 1/8" | €268.33 | |
| 2UFY4 | 1 7/16" | 1.4375 | - | - | 1/2" | High Speed Steel | Black Oxide | 3 1/8" | €318.37 | |
| 2UFY5 | 1 1/2" | 1 1/2" | - | - | 1/2" | High Speed Steel | Black Oxide | 3 1/8" | €329.17 |
