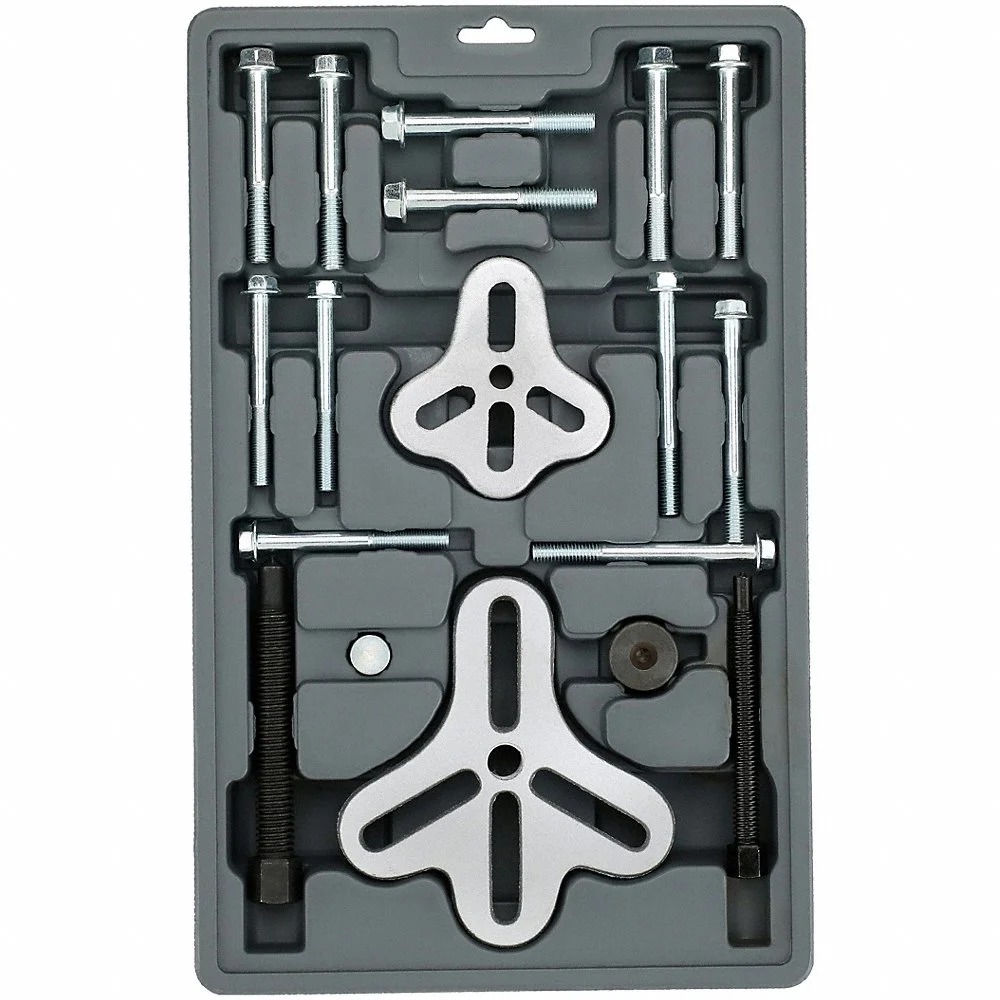

WESTWARD 29FX47 Flange Puller, 1 1/2-4 5/8 Inch Spread, 3 Inch Max. Reach
Item: AB8VBLModel: 29FX47
7 In Stock
Ships within 2 days via
13.00% off
€124.59 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flange Puller |
| Application | Moving Harmonic Balancers, Timing Gears And Other Parts Having Two Or Three Tapped Holes |
| Bolt Circle Dia. | 1 1/2" to 4 5/8", 1" to 2 5/8" |
| Cap Screw Size Included | 1/2" Hex Head, 1/2" Hex Head, 5/16"-24 Male Thread x 3"L(X3), 14 Mm(9/16") Hex Head, 3/8"-24 Male Thread x 3"L(X3), 14 Mm(9/16") Hex Head, 5/16"-18 Male Thread x 3-1/2"L(X3), 3/8"-16 Male Thread X3"L(X3) |
| Forcing Screw Length | 125 mm, 140 mm |
| Forcing Screw Size | 5/8"-10 |
| Included | (3) Four Cap Screw |
| Max. Reach | 3" |
| Max. Spread | 4 5/8" |
| Min. Spread | 1 1/2" |
| No. Of Pieces | 3 |
| Pulling Capacity | 12 ton. |
| Reach | Variable |
| Screw Size | 5/8"-10 |
| Spread | 1 1/2" to 4 5/8" |
| Spread | 1-1/2 to 4-5/8 In. |
Shipping Info:
| Ship weight (kg) | 2.72 |
| Ship height (cm) | 5.84 |
| Ship length (cm) | 40.89 |
| Ship width (cm) | 26.16 |
| HS code | 8205595560 |
| Country of Origin | TW |
Product Variants
| Product | Model | Pulling Capacity | Forcing Screw Length | Cap Screw Size Included | No. Of Pieces | Max. Reach | Reach | Forcing Screw Size | Screw Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
29FX49 | 11 ton. | 140 mm | 14 mm(9/16") Hex Head, 14 mm(9/16") Hex Head, 3/8"-24 Male Thread x 3"L(X3), 3/8"-16 Male Thread X3"L(X3) | 8 | 2" | 2" | 5/8"-10 | - | €91.07 |
