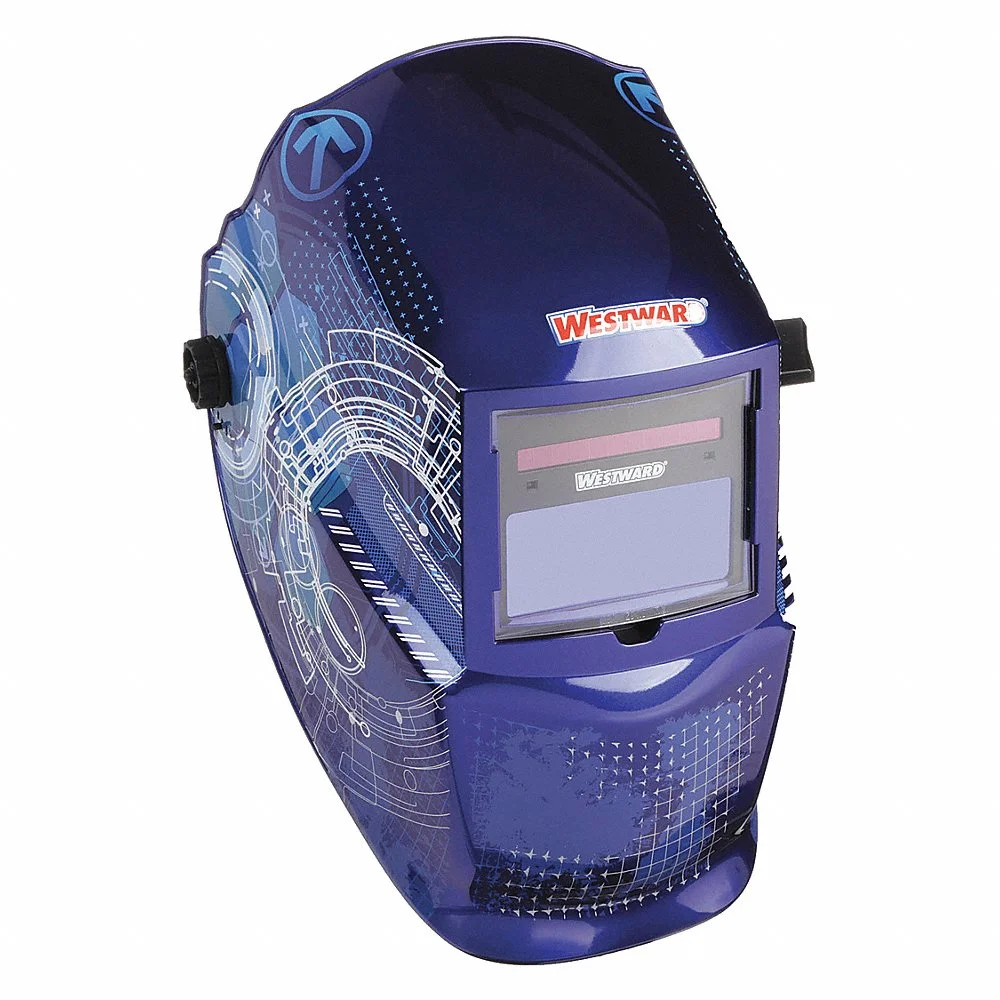

WESTWARD 22XX44 Auto Dark Welding Helmet 4 And 9 To 13 Blue
Item: AB7GFKModel: 22XX44
7 In Stock
Ships within 2 days via
10.00% off
€161.95 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Auto Darkening Welding Helmet |
| Adf Controls | Analog |
| Battery Chemistry | Alkaline |
| Battery Included | Yes |
| Battery Life | 5000 hrs. |
| Battery Type | AAA |
| Color | Graphics |
| Compatible Suspension Brand Name | Westward |
| Compatible Suspension Grainger Part Number | 45M952 |
| Electromagnetic Sensor | No |
| En379 Classification | 1/1/1/2 |
| Features | 5 Pt Adjustment Headgear With Removable Sweatband For Maximum Comfort, Additional Grinding Function, Fast Switching Speed, Low Battery Alarm, Solar Cell And (2)Aaa Alkaline Batteries, Test Button Allows You To Test If The Auto Darkening Lens Is Darkening Properly, Tig Rating 5A, Variable Shades With Delay And Sensitivity Infinitely Adjustable |
| Grind Mode | Yes |
| Headgear | Ratchet |
| Helmet Type | Auto-Darkening |
| Helmet Width | 23cm |
| Includes | Extra Front Cover Lens |
| Includes Electromagnetic Sensor | No |
| Lens Material | LCD |
| Lens Shade | Shade 4, 9-13 Solar Powered Auto Darkening |
| Light State | 4 |
| Magnification | No |
| Material | High Impact Resistant Nylon |
| Number Of Arc Sensors | 2 |
| Plate Height | 3-9/16" |
| Plate Height | 3.562" |
| Plate Width | 4.312" |
| Plate Width | 4-5/16" |
| Power Source | Battery, Solar |
| Suspension Adjustment Type | Ratchet |
| Switching Speed | 0.0000625 sec. |
| Tig Amp Rating | 5A |
| Viewing Area | 3.82" x 1.73" |
| Viewing Area | 3-13/16" x 1-3/4" |
| Welding Helmet Material | Nylon |
| Welding Light State | 4 |
| Welding Shade Designation | W9-13 |
Shipping Info:
| Ship weight (kg) | 0.88 |
| Ship height (cm) | 23.62 |
| Ship length (cm) | 33.27 |
| Ship width (cm) | 23.11 |
| HS code | 6506103075 |
| Country of Origin | CN |
Product Details:
- Grind Mode (Yes)
Product Variants
| Product | Model | Number Of Arc Sensors | Color | Viewing Area | Grind Mode | Graphics | Welding Shade Designation | Welding Light State | Plate Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
22XX36 | 2 | Gray | 3.82" x 1.85" | No | None | W10 | 3 | 4.312" | €202.82 | |
 |
22XX37 | 2 | Blue | 3.82" x 1.85" | No | None | W10 | 3 | 4.312" | €202.82 | |
 |
22XX38 | 2 | Red | 3.82" x 1.85" | No | None | W10 | 3 | 4.312" | €202.82 | |
 |
22XX39 | 2 | Gray | 3.82" x 1.73" | Yes | None | W9-13 | 4 | 4.312" | €161.43 | |
 |
22XX40 | 2 | Graphics | 3.82" x 1.73" | Yes | Black/Blue/White | W9-13 | 4 | 4.312" | €179.95 | |
 |
22XX41 | 2 | Graphics | 3.82" x 1.73" | Yes | Black/Red/White | W9-13 | 4 | 4.312" | €179.95 | |
 |
22XX42 | 2 | Graphics | 3.82" x 1.73" | Yes | Blue/Red/White | W9-13 | 4 | 4.312" | €179.95 |
