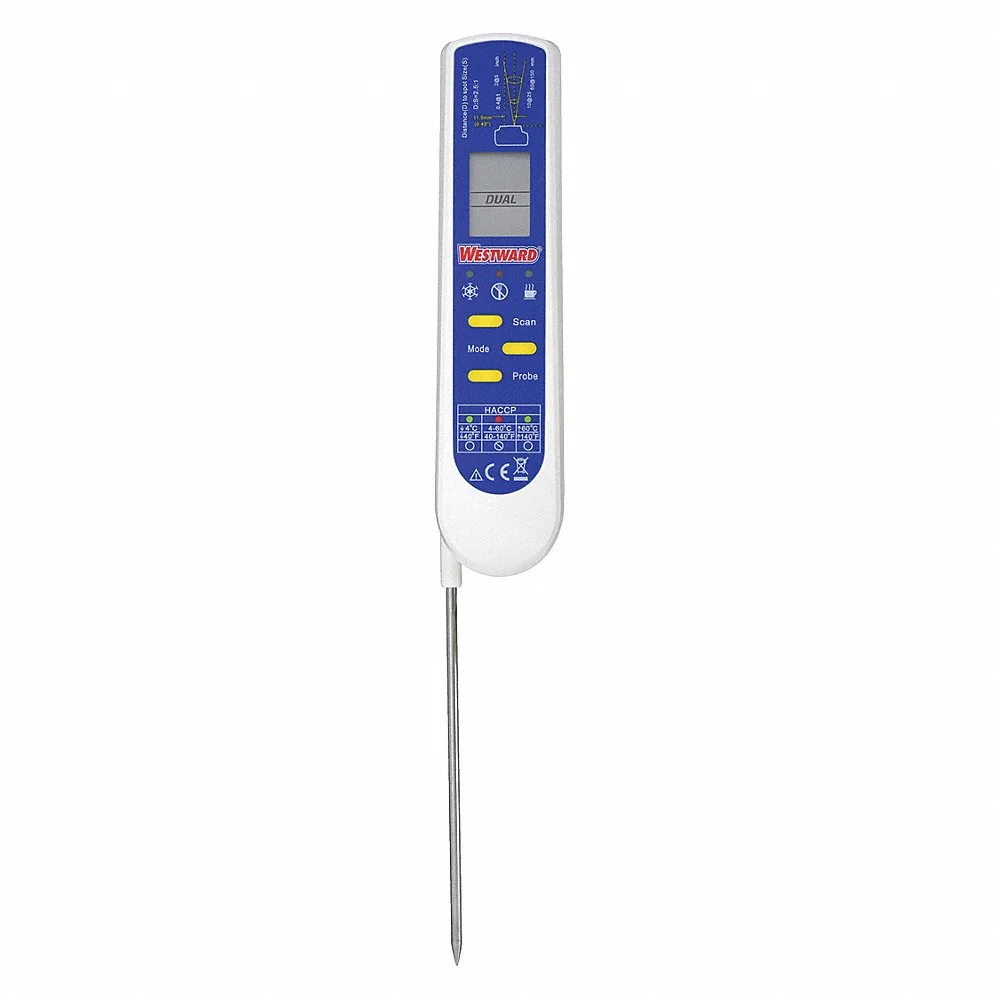

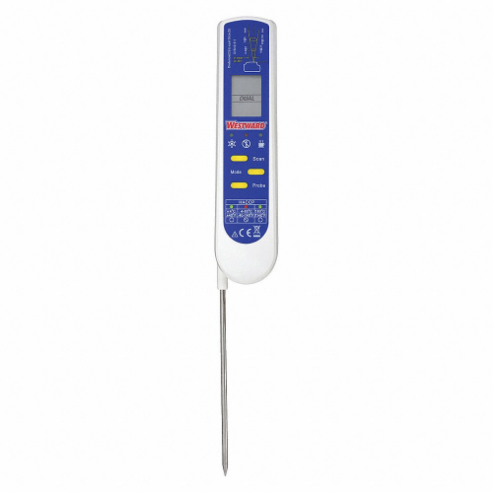

WESTWARD 1VEP5 Ir Thermometer -67 To 482f 1 [email protected] Inch Focus
Item: AB3UFDModel: 1VEP5
7 In Stock
Ships within 2 days via
10.00% off
€122.82 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Infrared Thermometer |
| Accuracy | +/-2% Of Reading Or +/-2° Whichever Is Greater |
| Accuracy °f | +/-2% Of Reading Or +/-3.6° Whichever Is Greater |
| Alert Type | Visual |
| Auto Power Off | Yes |
| Battery Chemistry | Alkaline |
| Battery Included | Yes |
| Battery Run Time | 18 hrs. |
| Battery Size | AAA |
| Battery Type | AAA |
| Battery Voltage | 1.5V |
| Body Style | Full Size |
| Calibration Certificate | Not Certified |
| Calibration Certificate Included | No |
| Calibration Certification_combined | Not Certified 1Vep5 |
| Data Hold | Yes |
| Data Logging | No |
| Data Storage | Yes |
| Data Transfer Type | No Data Transfer |
| Digital Display Screen Type | LCD |
| Display Size | 1 1/5" |
| Distance To Spot Ratio | 2.5:1 |
| Emissivity | Adjustable 0.10 to 1.00 |
| Emissivity | 0.1 to 1 |
| Emissivity Adjustability | Adjustable |
| Features | Use Laser Sighting To Measure Surface Temperatures |
| Field Of View | Not Applicable |
| Focus Spot Size And Distance | 1" @ 2.5" |
| Includes | Type K Thermocouple |
| Includes Work Light | Work Light Included |
| Interface | Not Applicable |
| Laser Sighting | Single Dot |
| Laser Sighting Type | Single Dot |
| Manufacturer Warranty Length | 1 yr. |
| Max. Emissivity | 1 |
| Max. Emissivity Setting | 1 |
| Max. Operating Temperature °f | 122°F |
| Max. Temperature Measured | Up to 1202°F |
| Maximum Temperature Measured °c | 330°C |
| Maximum Temperature Measured °f | 626°F |
| Memory | Maximum/Minimum |
| Min. Emissivity | 0.1 |
| Min. Focus Distance | 5.4 mm |
| Min. Temp. Measured | -67° |
| Minimum Emissivity Setting | 0.10 |
| Minimum Operating Temperature °f | 32°F |
| Minimum Temperature Measured °c | -55°C |
| Minimum Temperature Measured °f | -67°F |
| Mounting Style | Handheld Only |
| Number Of Batteries Required | 2 |
| Operating Temp. Range | 32°F to 122°F |
| Probe Maximum Temperature Measured °c | 330°C |
| Probe Maximum Temperature Measured °f | 626°F |
| Probe Minimum Temperature Measured °c | -55°C |
| Probe Minimum Temperature Measured °f | -67°F |
| Repeatability | IR +/-4 Degrees F or +/-2%, Probe +/-1.4 Degrees F or +/-0.9% |
| Resolution °c | 0.2°C |
| Resolution °f | 0.5°F |
| Response Time | 1 sec. |
| Spectral Response | 5 to 14 uM |
| Spectral Response | 5 µm to 14 µm |
| Standards | Ce, Rohs, Weee |
| Temp. Alarm - Thermometer | No |
| Temp. Measured Range | -67°F to +626°F |
| Temp. Range | -67° to +482° |
| Testing Functions | Maximum Temperature, Minimum Temperature |
| Thermometer Size | Pocket Size |
| Trigger | Push Button |
Shipping Info:
| Ship weight (kg) | 0.15 |
| Ship height (cm) | 3.3 |
| Ship length (cm) | 23.11 |
| Ship width (cm) | 13.46 |
| HS code | 9025198080 |
| Country of Origin | CN |
Product Details:
- 1VEP5 is a suggested replacement of 1VER2
Product Variants
| Product | Model | Laser Sighting | Emissivity | Response Time | Data Storage | Trigger | Temp. Range | Spectral Response | Battery Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1VEP7 | Single Dot | 0.05 to 0.95 | 1 sec. | Not Applicable | Push Button | -67° to +428° | 8 µm to 14 µm | CR2032 | €40.65 | |
 |
1VER1 | Single Dot | 0.95 | 1 sec. | Yes | Push Button | -28° to +230° | 5 µm to 14 µm | LR44 | €66.95 | |
 |
28AF72 | Single Dot | 0.1 to 1 | 250 ms | Yes | Yes | -4° to +752° | 8 µm to 14 µm | 9V | €64.38 | |
 |
54TZ28 | Single Dot | 0.1 to 1 | 1 sec. | Yes | No | -20° to +932° | 8 µm to 14 µm | AAA | €53.80 | |
 |
54TZ31 | Dual | 0.1 to 1 | 150 ms | Yes | Yes | -58° to +1922° | 8 µm to 14 µm | 9V | €121.40 | |
 |
54TZ32 | Dual | 0.1 to 1 | 150 ms | Yes | Yes | -58° to +2282° | 8 µm to 14 µm | 9V | €167.44 | |
 |

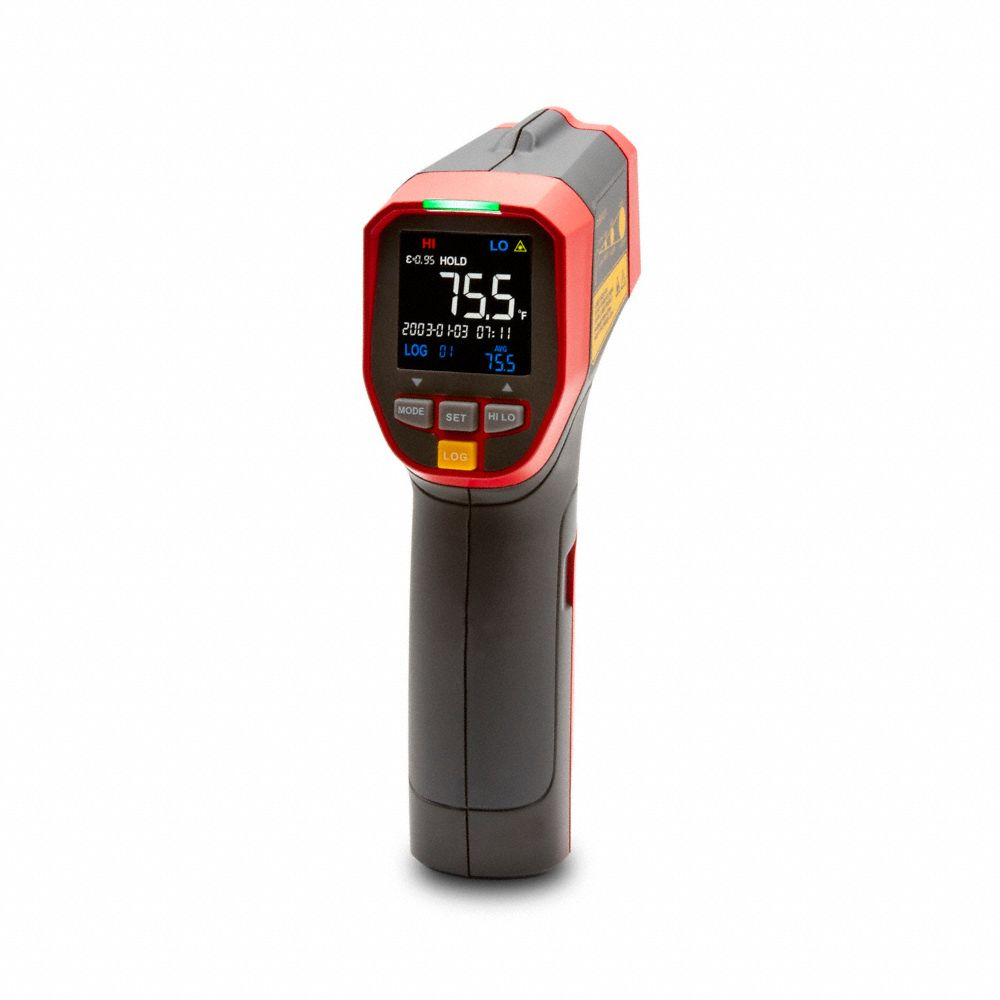

IRT350 | - | - | - | - | - | - | - | - | €158.16 |
