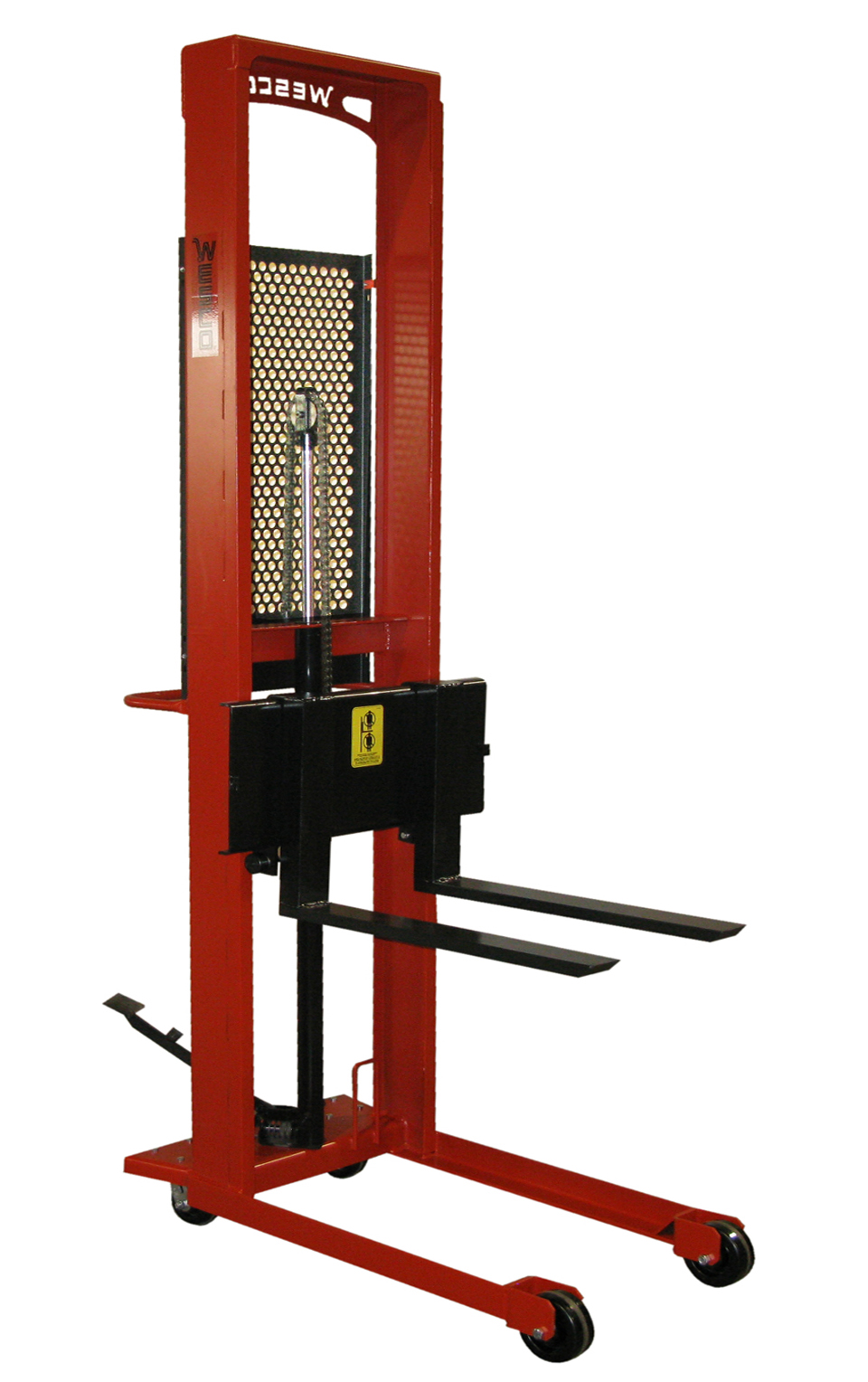

WESCO 260041 SFL-56-30S Standard Straddle Fork Stacker, 1000 Lbs Capacity, 56 Inch Lift
Get it by Tuesday, Dec 23
10.00% off
€3,126.39 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fixed Base Hydraulic Stacker |
| Adjustable Fork Span | 0" to 25" |
| Assembled | Yes |
| Axle Dia. | 5/8" |
| Axle-mounted Wheel Bearings | Ball Bearing |
| Axle-mounted Wheel Dia. | 5" |
| Axle-mounted Wheel Type | Tread On Core |
| Axle-mounted Wheel Width | 2 1/2" |
| Axle-mounted Wheel/tread Material | Phenolic |
| Base Inside Width | 25 1/2" |
| Base Legs Inside Dia. | 25 1/2" |
| Base Legs Inside Dia. | 25.5" |
| Base Legs Inside Dim. | 25 1/2" |
| Base Legs Outside Dia. | 32" |
| Base Legs Outside Dim. | 32" |
| Base Material | Steel |
| Base Outside Width | 32" |
| Base Style | Fixed Straddle |
| Base Type | Fixed Straddle |
| Battery Amp Hours | 12 Ah |
| Battery Type | Sealed Lead Acid |
| Battery Voltage | DC |
| Capacity | 1000 lbs. |
| Caster Brake Type | No Caster Brake |
| Caster Configuration, Wheel Configuration | (2) Swivel, (2) Axle-Mounted |
| Caster Dia. | 4" |
| Caster Frame Material | Steel |
| Caster Mounting Plate Size | 3" x 3" |
| Caster Mounting Type | Plate |
| Caster Type | Swivel |
| Caster Wheel Bearings | Ball Bearing |
| Caster Wheel Dia. | 4" |
| Caster Wheel Type | Swivel |
| Caster Wheel Width | 2" |
| Caster Wheel/tread Material | Phenolic |
| Charge Time | 1 hr. |
| Charger Type | On-Board |
| Charger Voltage | 120V AC |
| Color | Orange |
| Depth | 75" |
| Fluid Type | AW32 |
| For Pallet Type | Open |
| For Surface Type | Concrete |
| Fork Length | 30" |
| Fork Thickness | 1" |
| Fork Type | Adjustable |
| Fork Width | 3" |
| Frame Finish | Powder Coated |
| Frame Material | Steel |
| Frame Type | Flat Back |
| Front Caster Dia. | 4" |
| Front Wheel Dia. | 5" |
| Handle Height | 47" |
| Handle Material | Steel |
| Includes | Floor Lock, Safety Screen, Foot Guard |
| Inside Base Leg | 25.5" |
| Invertible Forks | No |
| Length | 48" |
| Lift Base Style | Fixed Straddle |
| Lift Control | Foot Pump |
| Lift Mechanism | Hydraulic |
| Lift Mobility | Manual Lift |
| Load Capacity | 1000 lbs. |
| Load Center | 18" |
| Max. Lifting Height | 56" |
| Method Of Construction | Welded |
| Min. Lifting Height | 1" |
| Non-marking Axle-mounted Wheels | Yes |
| Number Of Batteries | 1 |
| Operation | Manual |
| Outside Base Leg Size | 32" |
| Overall Depth | 48" |
| Overall Height | 75" |
| Overall Height With Forks Lowered | 75" |
| Overall Height With Forks Raised | 75" |
| Overall Length | 48" |
| Overall Lxwxh | 48" x 32.5" x 75" |
| Overall Width | 32.5" |
| Power Connection Type | Plug In |
| Powered By | Manual Foot Pump |
| Product Datasheet | wesco-260041.pdf |
| Raised Height | 56" |
| Rear Caster Dia. | 4" |
| Rear Wheel Dia. | 4" |
| Recommended Lift Mechanism | Hydraulic |
| Run Time | 3 hrs. |
| Turning Radius | 50" |
| Type | Standard |
| Weight | 288 lbs. |
| Width Across Forks | 6" to 24" |
| Width Between Forks | 3" |
Shipping Info:
| Ship weight (kg) | 129.6 |
| Ship height (cm) | 190.5 |
| Ship length (cm) | 121.92 |
| Ship width (cm) | 82.55 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Fork Length | Min. Lifting Height | Max. Lifting Height | Overall Width | Load Center | Overall Length | Overall Height | Base Legs Inside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
260053 | 30" | 0.0" | 56" | 32.5" | 18" | 48" | 72" | 25 1/2" | €2,725.02 | |
 |

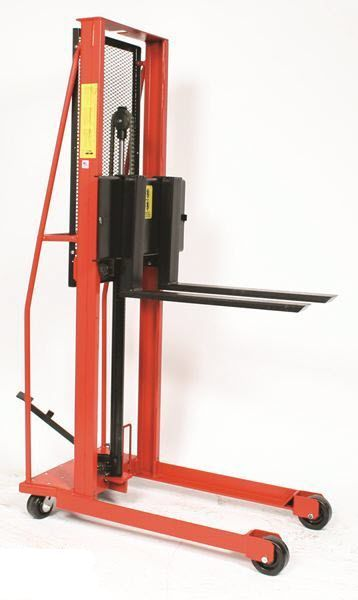

260048 | 25" | 0.0" | 64" | 25.5" | 15" | 44" | 80" | 15" | €2,807.40 | |
 |
260054 | 30" | 0.0" | 64" | 32.5" | 18" | 48" | 80" | 25 1/2" | €3,025.29 | |
 |
260035 | 25" | 0.0" | 56" | 25.5" | 15" | 44 1/2" | 75" | 15" | €2,731.05 | |
 |
260047 | 25" | 0.0" | 56" | 25.5" | 15" | 44" | 72" | 15" | €2,499.67 | |
 |
260036 | 25" | 0.0" | 64" | 25.5" | 15" | 44 1/2" | 83" | 15" | €2,831.32 | |
 |
260037 | 25" | 0.0" | 76" | 25.5" | 15" | - | 94" | 15" | €3,135.84 |
