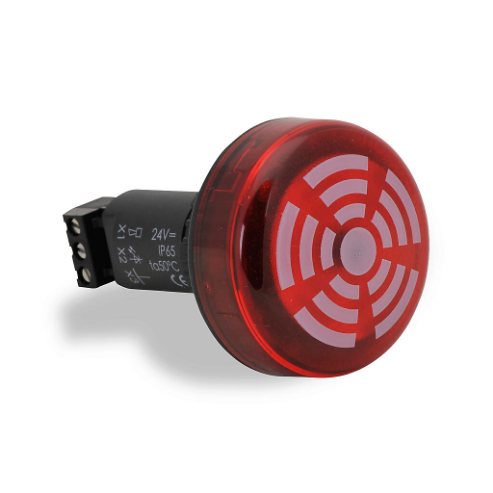

WERMA 15010055 Buzzer, 24VDC, 80 dB Decibels, Indoor/Outdoor, Surface/Wall, 2.9063 Inch Height
Item: CU9VZFModel: 15010055Cross Ref: 452U51
7 In Stock
Ships within 2 days via
10.00% off
€159.21 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Buzzer |
| Alarm Volume @ 1 M - Maximum | 80 dBA |
| Alarm Volume @ 10 Ft - Maximum | 80 dB |
| Audible Alarm Type | Buzzer |
| Color | Black |
| Connection Type | Screw Terminal |
| Control Protocol | Direct Wire |
| Depth | 2.094" |
| Diameter | 1.953" |
| Features | Low Power Consumption For PLC Control, Simple Connection Through Plug-In Connection |
| Flashes Per Minute | 0 FPM |
| For Location | Indoor/Outdoor |
| Height | 2.906" |
| Housing Color | Black |
| Housing Material | Polycarbonate |
| Includes Mounting Hardware | Mounting Hardware Included |
| Indoor/outdoor | Indoor/Outdoor |
| Ip Rating | IP65 |
| Lens Color | Red |
| Lens Material | ABS, Polycarbonate |
| Lens Shape | Dome |
| Lifespan | 50000 hrs. |
| Light Operating Mode | Steady |
| Mounting | Surface, Wall |
| Mounting Location | Wall Mount |
| Mounting Style | Surface Mount |
| Nema Rating | Nema 12 |
| Noise Level | 80 dBA |
| Number Of Sound Patterns | 1 |
| Operating Current | 0.05A |
| Operating Temp. Range | -4°F to +122°F |
| Operating Temperature - Maximum | 50°C |
| Operating Temperature - Minimum | -20°C |
| Operating Voltage | 24V DC |
| Overall Diameter | 1 31/32" |
| Overall Height | 2 29/32" |
| Overall Length | 2 29/32" |
| Overall Width | 1 15/16" |
| Power Source | Wire |
| Product Type | Buzzer And Led |
| Rating | IP 65 |
| Sound Continuity | Continuous |
| Sound Pattern | Continuous, Pulse |
| Sound Style | Tone |
| Vibrating | No |
| Vibration | No Vibration |
| Visual Indicator Type | Beacon |
| Voltage | 24V DC |
| Wattage | 6.28 W |
| Width | 1.953" |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 7.38 |
| Ship length (cm) | 5.32 |
| Ship width (cm) | 4.96 |
| HS code | 853180 |
| Country of Origin | DE |
Product Variants
| Product | Model | Voltage | Diameter | Depth | Housing Color | Housing Material | Color | Sound Pattern | Visual Indicator Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
10700060 | 115-230V AC | 28 mm | 1.922" | Black | Fiberglass | Black | Continuous | No Visual Indicator | €81.19 | |
 |
10700070 | 12/24V AC/DC | 28 mm | 1.922" | Black | Fiberglass | Black | Continuous | No Visual Indicator | €77.15 | |
 |
15010067 | 115V AC | 1.953" | 2.094" | Black | Polycarbonate | Black | Continuous, Pulse | Beacon | €190.17 | |
 |
10901077 | 115V AC/DC | 2.047" | 0.938" | Black | Polycarbonate, ABS Blend | Black | Pulse | No Visual Indicator | €154.78 | |
 |
10900077 | 115V AC/DC | 2.047" | 0.938" | Black | Polycarbonate, ABS Blend | Black | Continuous, Pulse | No Visual Indicator | €154.78 | |
 |
10701060 | 115V AC/DC | 1.109" | 1.922" | Black | Fiberglass | Black | Pulse | No Visual Indicator | €81.19 | |
 |
10900075 | 24V AC/DC | 2.047" | 0.938" | Black | Polycarbonate, ABS Blend | Black | Continuous, Pulse | No Visual Indicator | €141.08 |
