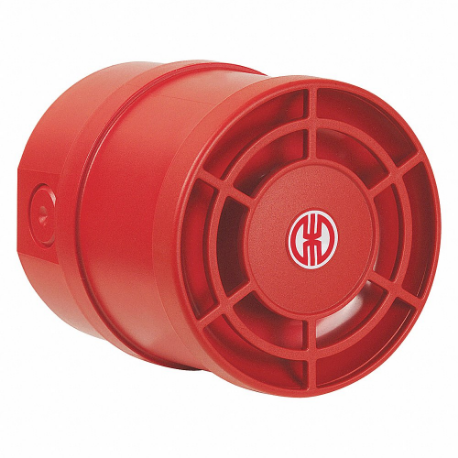

WERMA 14015060 Multi-Tone Sounder, 115 To 230V Ac, 115 Db Decibels, Indoor/Outdoor, Surface/Wall
Item: CU9WBVModel: 14015060Cross Ref: 452U47
7 In Stock
Ships within 2 days via
10.00% off
€208.58 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Sounder |
| Alarm Volume @ 1 M - Maximum | 115 dBA |
| Alarm Volume @ 1 M - Minimum | 115 dB |
| Alarm Volume @ 10 Ft - Maximum | 115 dB |
| Alarm Volume @ 10 Ft - Minimum | 115 dB |
| Audible Alarm Type | Buzzer |
| Color | Red |
| Connection Type | Screw Terminal |
| Control Protocol | Direct Wire |
| Depth | 3.938" |
| Diameter | 3.938" |
| Features | 32 Tones Adjustable For Various Applications |
| Flashes Per Minute | 0 FPM |
| For Location | Indoor/Outdoor |
| Height | 4.312" |
| Housing Color | Red |
| Housing Material | Polycarbonate, ABS Blend |
| Includes Mounting Hardware | No Mounting Hardware |
| Indoor/outdoor | Indoor/Outdoor |
| Ip Rating | IP65 |
| Material | ABS, Polycarbonate |
| Mounting | Surface, Wall |
| Mounting Location | Wall Mount |
| Mounting Style | Surface Mount |
| Noise Level | 115 dBA |
| Number Of Sound Patterns | 32 |
| Operating Current | 0.04A |
| Operating Temp. Range | -40°F to +158°F |
| Operating Temperature - Maximum | 70°C |
| Operating Temperature - Minimum | -40°C |
| Operating Voltage | 115-230V AC |
| Overall Depth | 110 mm |
| Overall Diameter | 100 mm |
| Power Source | Wire |
| Product Type | Tone Generator |
| Rating | IP 65 |
| Sound Continuity | Continuous, Pulse |
| Sound Pattern | Continuous, Pulse |
| Sound Principle | Resonating |
| Sound Style | Tone |
| Vibrating | No |
| Vibration | No Vibration |
| Visual Indicator Type | No Visual Indicator |
| Voltage | 115-230V AC |
| Volume Selection | Fixed Volume |
| Wattage | 0.12 W |
| Width | 3.938" |
Shipping Info:
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 10.95 |
| Ship length (cm) | 10 |
| Ship width (cm) | 10 |
| Country of Origin | CN |
Product Variants
| Product | Model | Voltage | Diameter | Depth | Housing Color | Housing Material | Color | Sound Pattern | Visual Indicator Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
10700060 | 115-230V AC | 28 mm | 1.922" | Black | Fiberglass | Black | Continuous | No Visual Indicator | €81.19 | |
 |
10700070 | 12/24V AC/DC | 28 mm | 1.922" | Black | Fiberglass | Black | Continuous | No Visual Indicator | €77.15 | |
 |
15010067 | 115V AC | 1.953" | 2.094" | Black | Polycarbonate | Black | Continuous, Pulse | Beacon | €190.17 | |
 |
10901077 | 115V AC/DC | 2.047" | 0.938" | Black | Polycarbonate, ABS Blend | Black | Pulse | No Visual Indicator | €154.78 | |
 |
10900077 | 115V AC/DC | 2.047" | 0.938" | Black | Polycarbonate, ABS Blend | Black | Continuous, Pulse | No Visual Indicator | €154.78 | |
 |
10701060 | 115V AC/DC | 1.109" | 1.922" | Black | Fiberglass | Black | Pulse | No Visual Indicator | €81.19 | |
 |
10900075 | 24V AC/DC | 2.047" | 0.938" | Black | Polycarbonate, ABS Blend | Black | Continuous, Pulse | No Visual Indicator | €141.08 |
