WEG UBW225N-FTU100-3A 13713040 Circuit Breaker, 225 Frame, 35.0 kA Breaker Interruption Capacity at 480 VAC, 100A, Fixed Thermal and Magnetic Trip
Item: BF6PUQModel: UBW225N-FTU100-3ACross Ref: 13713040
7 In Stock
Ships within 2 days via
€420.42 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Molded Case Circuit Breaker |
| 100% Rated | No |
| Alarm Switch | Optional |
| Amps | 100A |
| Auxiliary Switch | Optional |
| Breaker Interuption Capacity @ 480 V | 35 kA |
| Connector Cross-section | 4 sq. mm |
| Frame Size | 225 |
| Gfci | No |
| Gross Weight | 4.61 lbs. |
| Lugs Color | Gray |
| Max. Voltage | 600V AC |
| Mounting | Panel |
| Neutral Pole | No |
| Neutral Protection | No |
| No. Of Poles | 3 |
| Nominal Amps | 16A |
| Poles | 3 |
| Protection | Motor |
| Shunt Trip | Optional |
| Terminal Type | Screw |
| Trip Type | Fixed Thermal And Magnetic |
| Under Voltage Release | Optional |
| Voltage | 500V |
Shipping Info:
| Ship weight (kg) | 1.91 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Amps | Frame Size | Breaker Interuption Capacity @ 480 V | Trip Type | Terminal Type | Gross Weight | No. Of Poles | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
UBW250N-FTU250-3A | 250A | 250 | 35 kA | Fixed Thermal And Magnetic | Screw | 9.315 lbs. | 3 | 500V | €826.27 | |
|
UBW225N-FTU60-3A | 60A | 225 | 35 kA | Fixed Thermal And Magnetic | Screw | 4.53 lbs. | 3 | 500V | €384.04 | |
 |

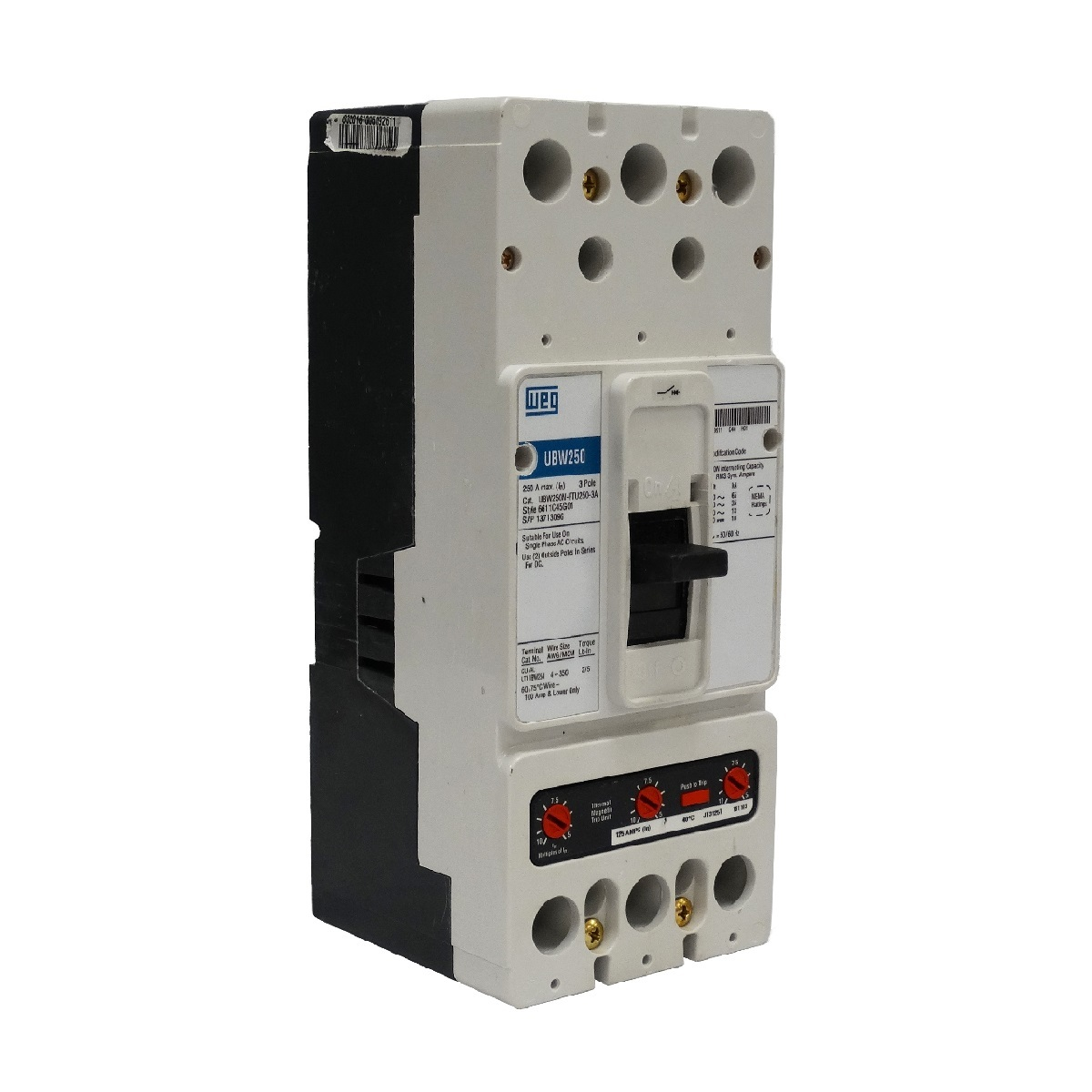

UBW250L-FTU250-3A | 250A | 250 | 100 kA | Fixed Thermal And Magnetic | Screw | - | 3 | 500V | €1,188.00 | RFQ
|
 |

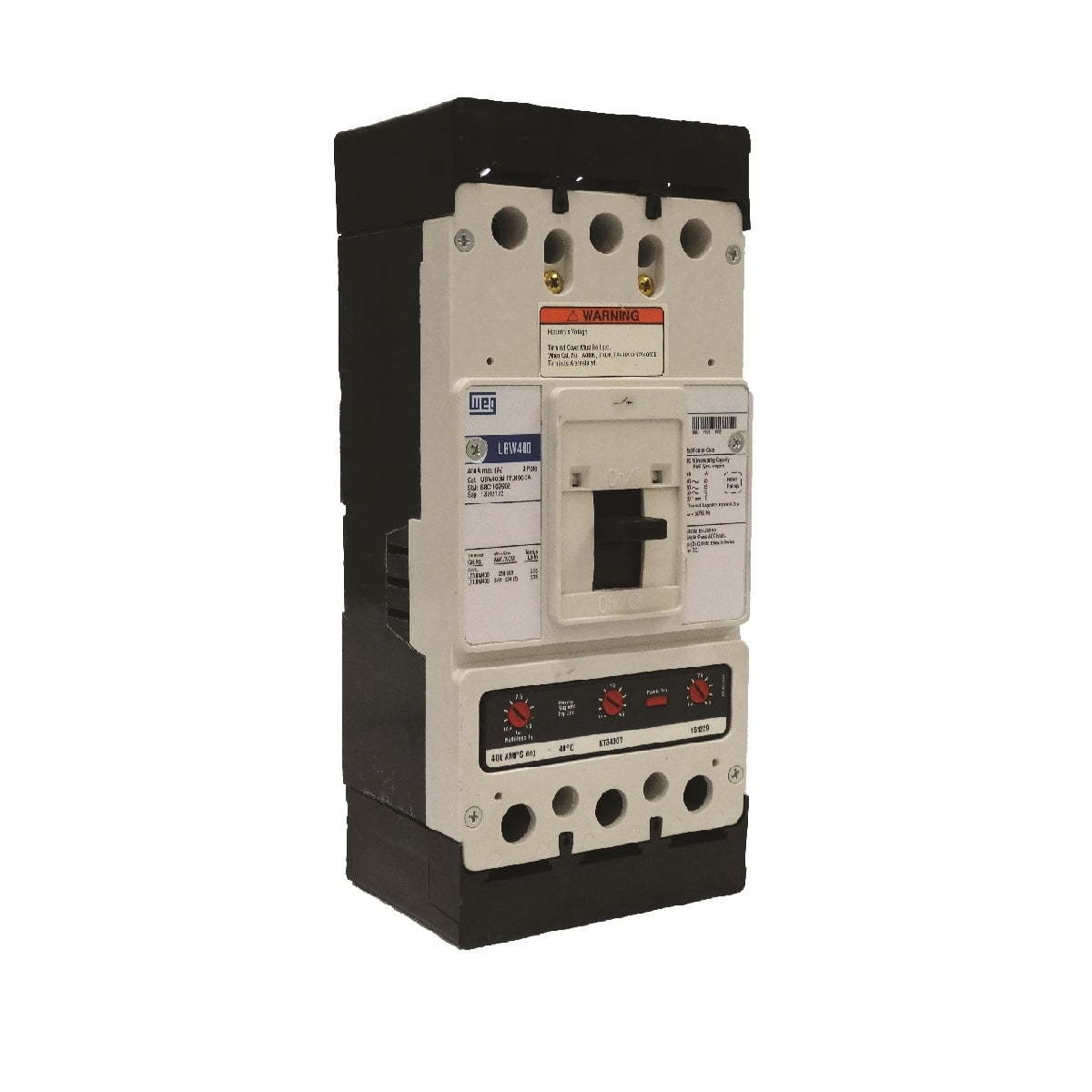

UBW400N-FTU300-3A | 300A | 400 | 35 kA | Fixed Thermal And Magnetic | Screw | - | 3 | 500V | €1,485.00 | RFQ
|
|
UBW400N-FTU400-3A | 400A | 400 | 35 kA | Fixed Thermal And Magnetic | Screw | 12.93 lbs. | 3 | 500V | €1,485.00 | |
 |

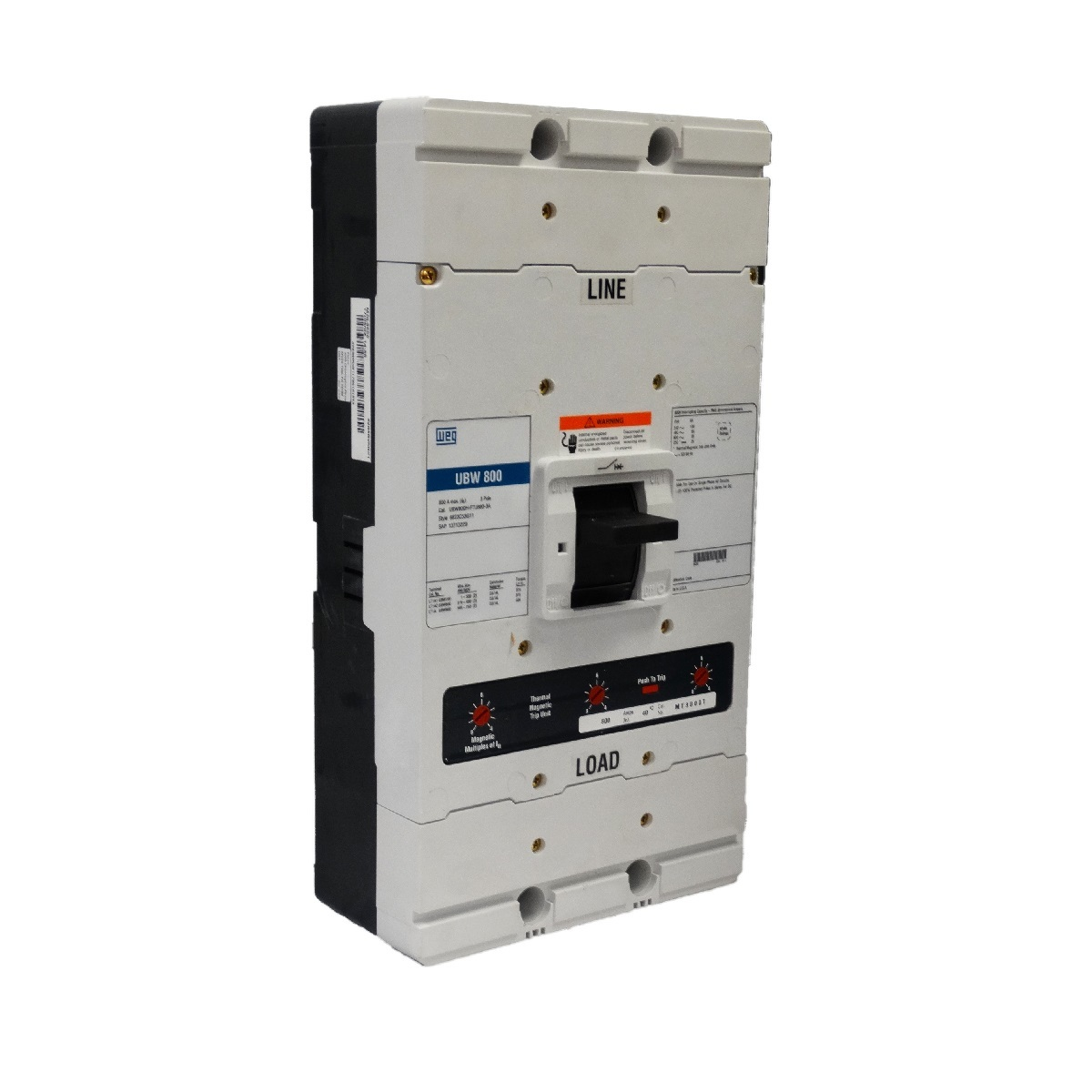

UBW800H-FTU800-3A | 800A | 800 | 65 kA | Fixed Thermal And Magnetic | Screw | - | 3 | 500V | €3,960.00 | RFQ
|
|
UBW800S-FTU800-3A | 800A | 800 | 50 kA | Fixed Thermal And Magnetic | Screw | 33 lbs. | 3 | 500V | €2,970.00 |
