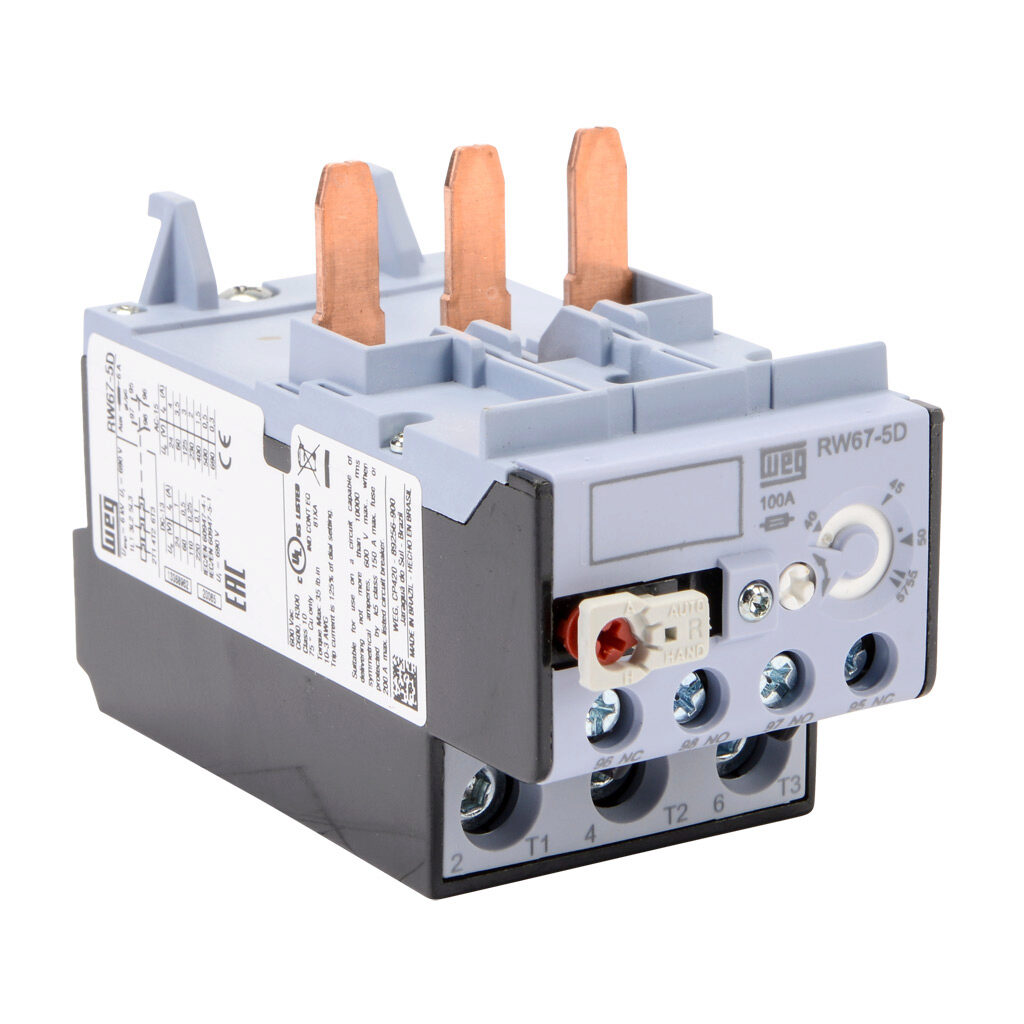

WEG RW67-5D3-U057 13368962 Thermal Overload Relay, 40-57A Adjustable, Bi-Metallic, Direct Mount Power Connection
Get it by Monday, Aug 24
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Overload Relay |
| Amps | 40-57A |
| Auxiliary Contacts | NO/NC |
| Connection Type | Direct Mount Power |
| Contactor Model | CWB40-80 |
| Degree Of Protection - Auxiliary Terminals | IP20 |
| Degree Of Protection - Main Terminals | IP10 |
| Depth | 4.17" |
| For Use With | CWB40 to CWB80 Series Contactors |
| Full Load Amps | 40-57A |
| Fuse Type | gL/gG |
| Height | 2.87" |
| Max. Fuse (type 2 Coordination) | 150 |
| Max. Operating Frequency | 15 Hz |
| Mounting Configuration | 5D |
| Mounting Type | Direct |
| No. Of Poles | 3 |
| Operation Type | Bi-Metallic |
| Phase Loss Sensitive | Yes |
| Product Datasheet | weg-bf117-3d.pdf |
| Rated Impulse Withstand Voltage Uimp | 6 kV |
| Rated Insulation Voltage | 690V |
| Rated Insulation Voltage Ui | 690V |
| Rated Insulation Voltage Ui (acc. To Ul) | 600V |
| Rated Operational Frequency | 25-400 Hz |
| Reference | RW67 |
| Relay Type | Thermal Overload |
| Reset | Local |
| Series | RW67-5D Series |
| Short Circuit Protection With Fuses | 6gL/gG |
| Short Circuit Protection With Fuses (gl/gg) | 6A |
| Suitable For Use With Dc Loads | Yes |
| Trip Class | Class 10 |
| Width | 1.97" |
Shipping Info:
| Ship weight (kg) | 0.33 |
| Ship height (cm) | 7.29 |
| Ship length (cm) | 10.59 |
| Ship width (cm) | 5 |
| Country of Origin | BR |
