WEG RW27-2D3-C063 12140442 Overload Relay, Direct Mounting, 3 Poles, 0, 4-0, 63 A Range, 2D Mounting configuration
Item: BC2DWQModel: RW27-2D3-C063Cross Ref: 12140442
7 In Stock
Ships within 2 days via
€76.73 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Relay |
| Amps | 0.4-0.63A |
| Contactor Model | CWB9-38 |
| Degree Of Protection - Auxiliary Terminals | IP20 |
| Degree Of Protection - Main Terminals | IP10 |
| Depth | 3.23" |
| Fuse Type | gL/gG |
| Height | 2.83" |
| Max. Operating Frequency | 15 Hz |
| Mounting Configuration | 2D |
| Mounting Type | Direct |
| No. Of Poles | 3 |
| Rated Impulse Withstand Voltage Uimp | 6 kV |
| Rated Insulation Voltage | 690V |
| Rated Insulation Voltage Ui | 690V |
| Rated Insulation Voltage Ui (acc. To Ul) | 600V |
| Rated Operational Frequency | 25-400 Hz |
| Reference | RW27 |
| Short Circuit Protection With Fuses | 6gL/gG |
| Short Circuit Protection With Fuses (gl/gg) | 6A |
| Suitable For Use With Dc Loads | Yes |
| Width | 1.77" |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 7.19 |
| Ship length (cm) | 8.2 |
| Ship width (cm) | 4.5 |
| Country of Origin | US |
Product Variants
| Product | Model | No. Of Poles | Amps | Height | Rated Insulation Voltage Ui | Mounting Configuration | Rated Operational Frequency | Max. Operating Frequency | Suitable For Use With Dc Loads | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RW27-2D3-D018 | 3 | 1.2-1.8A | 2.83" | 690V | 2D | 25-400 Hz | 15 Hz | Yes | €60.30 | |
 |

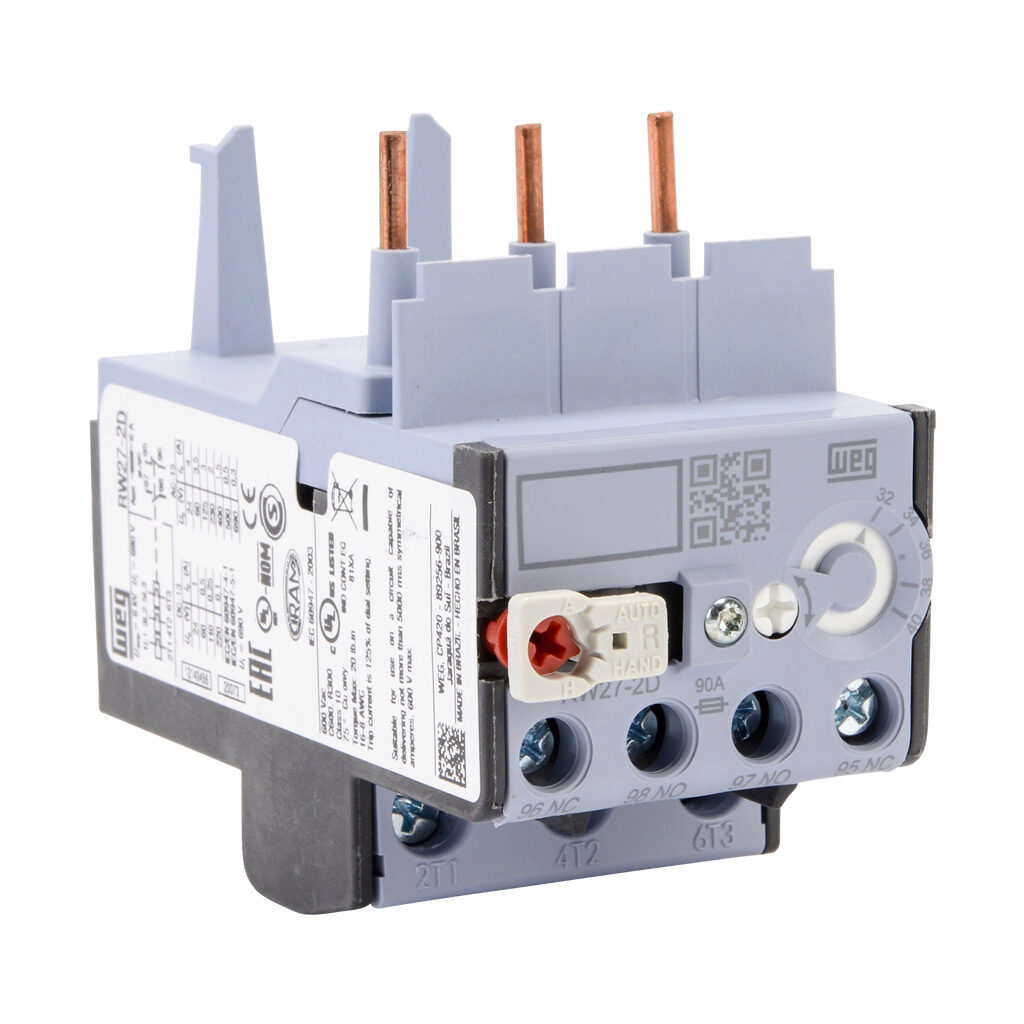

RW27-2D3-U040 | 3 | 32-40A | 2.83" | 690V | 2D | 25-400 Hz | 15 Hz | Yes | - | RFQ
|
|

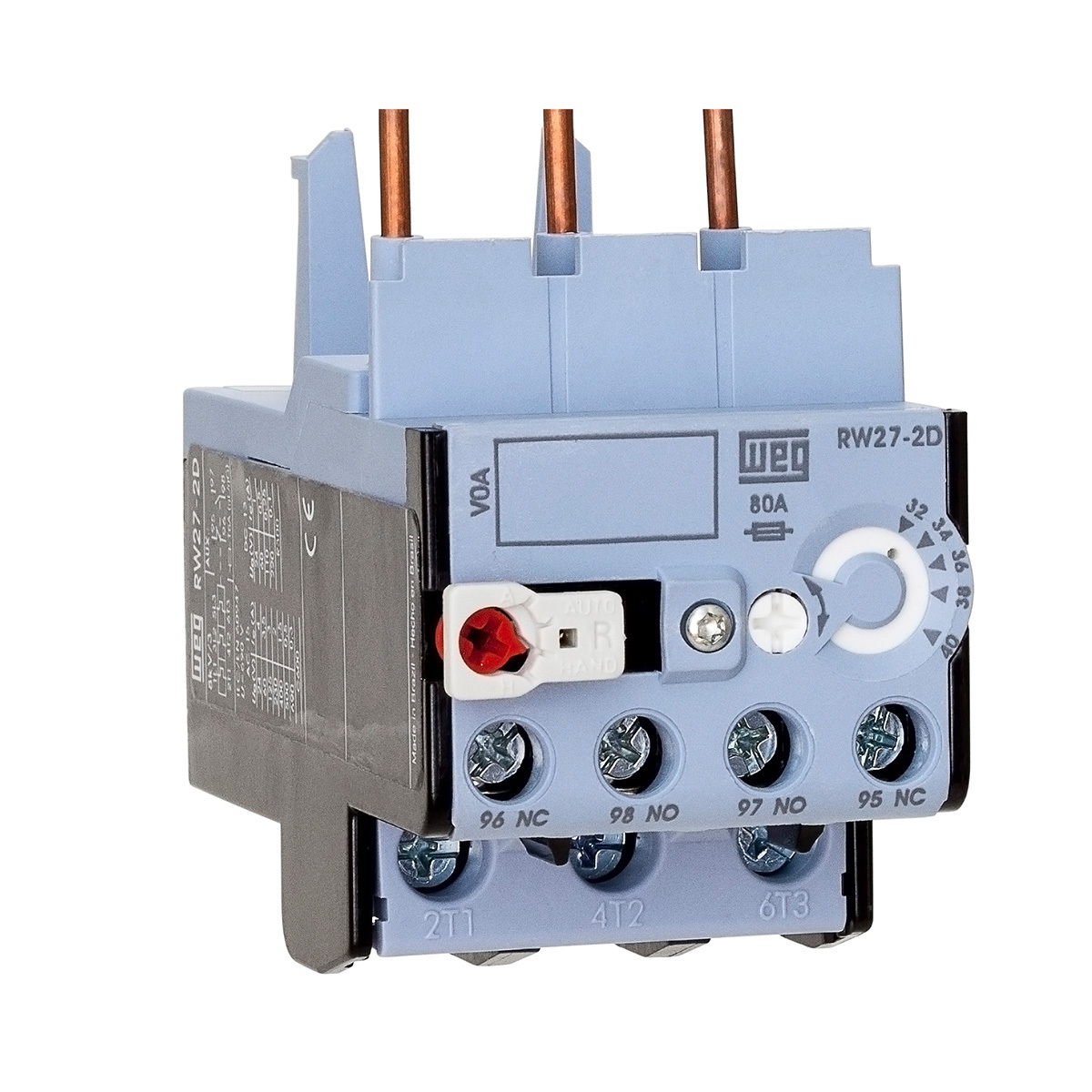

RW27-2D2-U017 | 2 | 11-17A | 2.83" | 690V | 2D | 25-400 Hz | 15 Hz | Yes | €76.73 | |
 |
RW27-2D3-U004 | 3 | 2.8-4A | 2.83" | 690V | 2D | 25-400 Hz | 15 Hz | Yes | €60.30 | |
 |

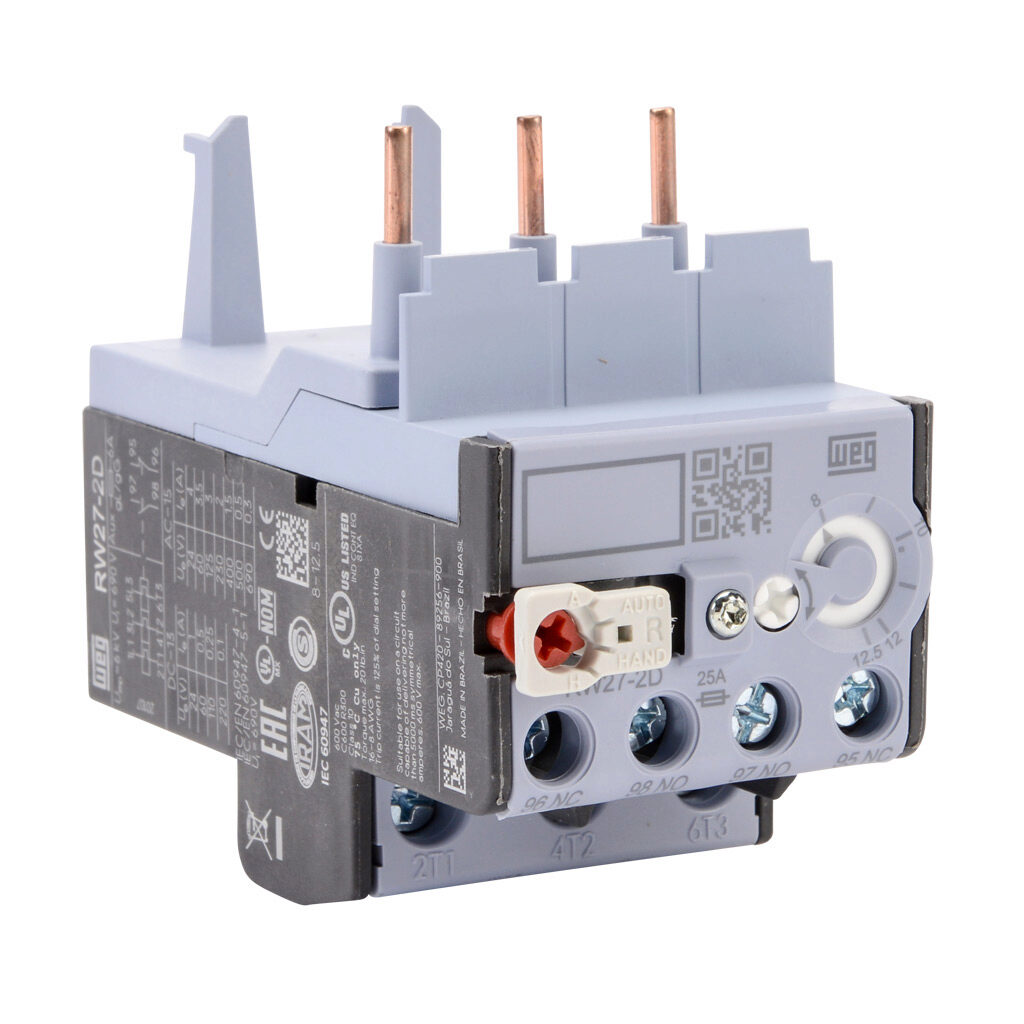

RW27-2D3-D125 | 3 | 8-12.5A | 2.83" | 690V | 2D | 25-400 Hz | 15 Hz | Yes | €60.30 | |
|
RW27-2D2-U032 | 2 | 22-32A | 2.83" | 690V | 2D | 25-400 Hz | 15 Hz | Yes | €76.73 | |
 |

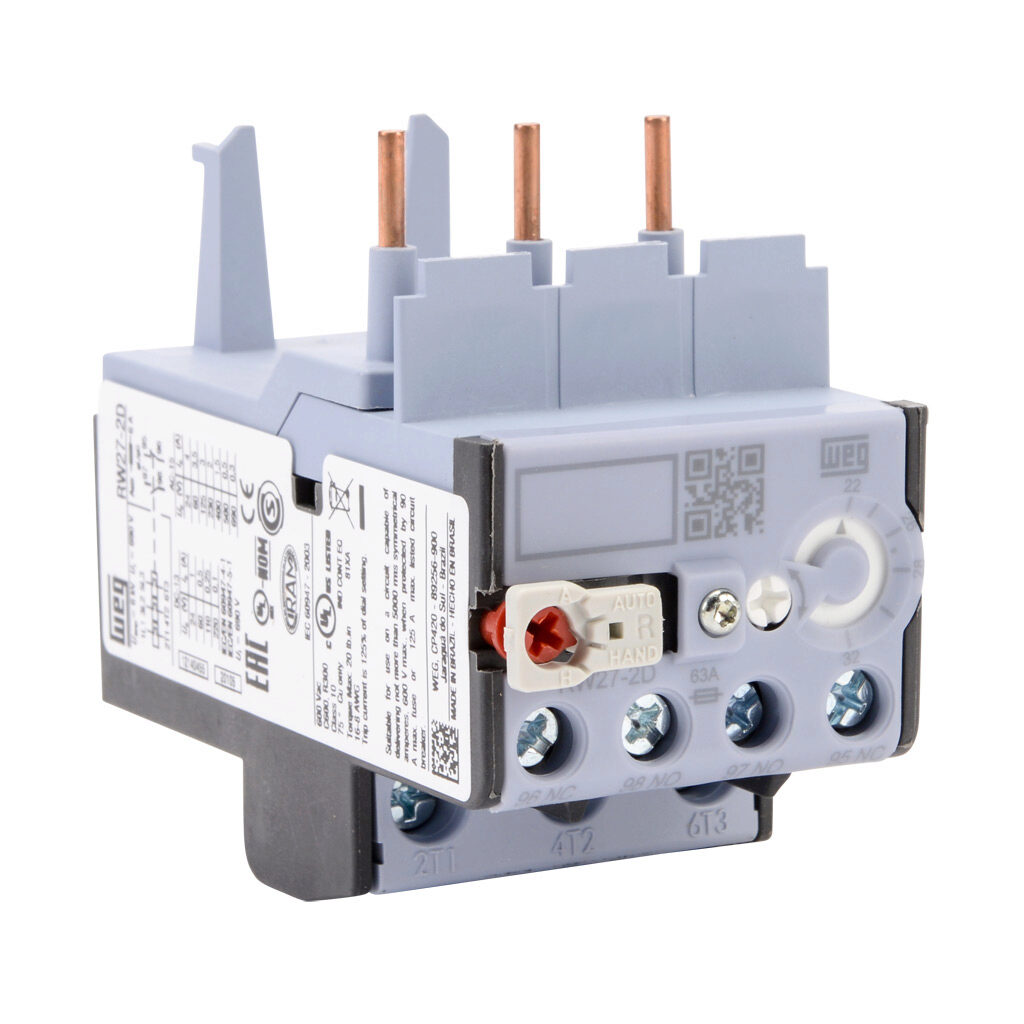

RW27-2D3-U032 | 3 | 22-32A | 2.83" | 690V | 2D | 25-400 Hz | 15 Hz | Yes | €60.30 |
