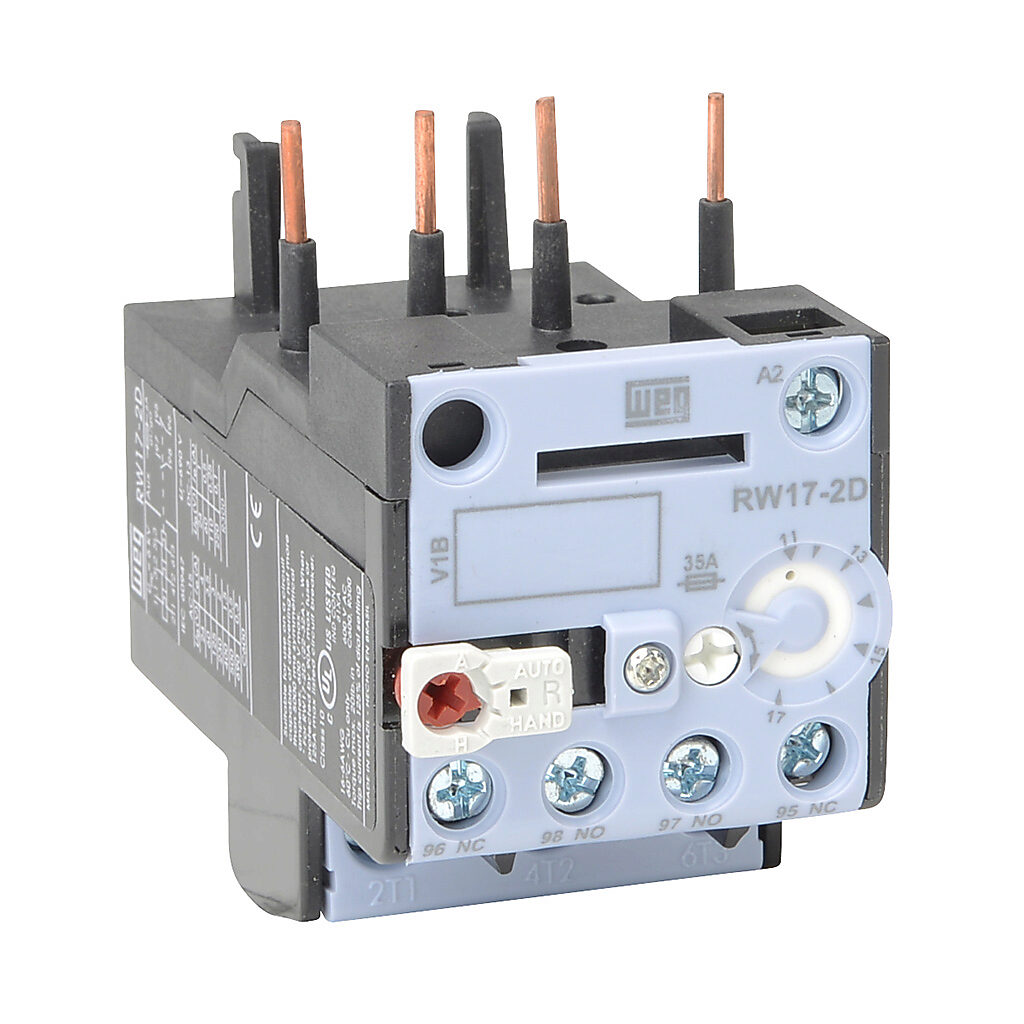

WEG RW17-2D3-U017 12450912 Thermal Overload Relay, 11.0-17.0A Adjustable, Bi-Metallic for Use With Miniature Contactors
Get it by Monday, Aug 17
€45.90 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Relay |
| Amps | 11-17A |
| Auxiliary Contacts | NO/NC |
| Connection Type | Direct Mount Power |
| Contactor Model | CWC025 |
| Degree Of Protection - Auxiliary Terminals | IP20 |
| Degree Of Protection - Main Terminals | IP10 |
| Depth | 3.23" |
| For Use With | CWC025 Series Miniature Contactors |
| Full Load Amps | 11-17A |
| Fuse Type | gL/gG |
| Height | 2.83" |
| Max. Fuse (type 2 Coordination) | 40 |
| Max. Operating Frequency | 15 Hz |
| Mounting Configuration | 2D |
| Mounting Type | Direct |
| No. Of Poles | 3 |
| Operation Type | Bi-Metallic |
| Part/accessory Type | Contactor |
| Phase Loss Sensitive | Yes |
| Rated Impulse Withstand Voltage Uimp | 6 kV |
| Rated Insulation Voltage | 690V |
| Rated Insulation Voltage Ui | 690V |
| Rated Insulation Voltage Ui (acc. To Ul) | 600V |
| Rated Operational Frequency | 25-400 Hz |
| Reference | RW17 |
| Relay Type | Thermal Overload |
| Reset | Local |
| Series | RW17-2D Series |
| Short Circuit Protection With Fuses | 6gL/gG |
| Short Circuit Protection With Fuses (gl/gg) | 6A |
| Suitable For Use With Dc Loads | Yes |
| Trip Class | Class 10 |
| Width | 1.77" |
Shipping Info:
| Ship weight (kg) | 0.17 |
| Ship height (cm) | 3.28 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 4.83 |
| Country of Origin | BR |
Product Variants
| Product | Model | No. Of Poles | Amps | Height | Rated Insulation Voltage Ui | Mounting Configuration | Rated Operational Frequency | Max. Operating Frequency | Suitable For Use With Dc Loads | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RW27-2D3-D018 | 3 | 1.2-1.8A | 2.83" | 690V | 2D | 25-400 Hz | 15 Hz | Yes | €60.30 | |
 |
RW27-2D3-U040 | 3 | 32-40A | 2.83" | 690V | 2D | 25-400 Hz | 15 Hz | Yes | - | RFQ
|
 |
RW27-2D2-U017 | 2 | 11-17A | 2.83" | 690V | 2D | 25-400 Hz | 15 Hz | Yes | €76.73 | |
 |
RW27-2D3-U004 | 3 | 2.8-4A | 2.83" | 690V | 2D | 25-400 Hz | 15 Hz | Yes | €60.30 | |
 |
RW27-2D3-D125 | 3 | 8-12.5A | 2.83" | 690V | 2D | 25-400 Hz | 15 Hz | Yes | €60.30 | |
|
RW27-2D2-U032 | 2 | 22-32A | 2.83" | 690V | 2D | 25-400 Hz | 15 Hz | Yes | €76.73 | |
 |
RW27-2D3-U032 | 3 | 22-32A | 2.83" | 690V | 2D | 25-400 Hz | 15 Hz | Yes | €60.30 |
