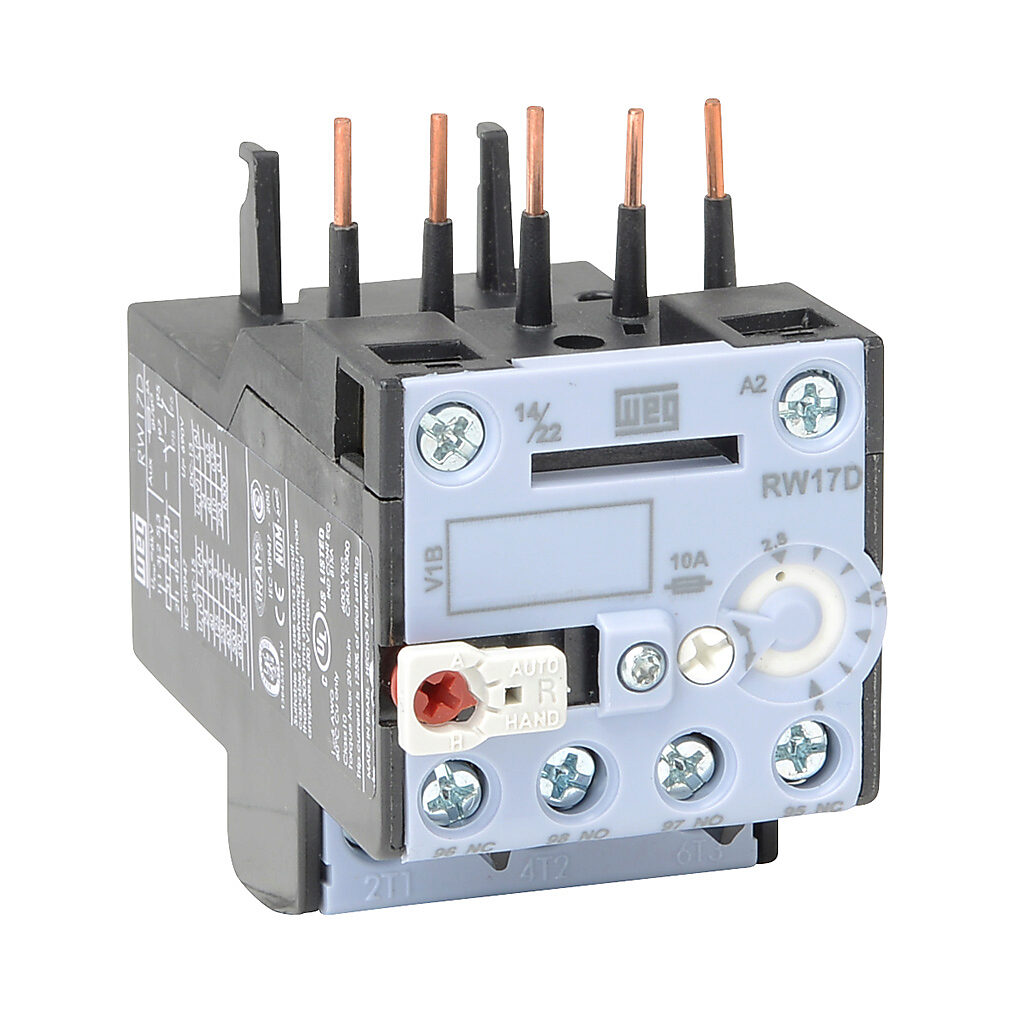

WEG RW17-1D3-U004 12450900 Thermal Overload Relay, 2.8-4.0A Adjustable, Local Reset, Direct Mount Power Connections
Get it by Monday, Apr 6
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Relay |
| Auxiliary Contacts | NO/NC |
| Connection Type | Direct Mount Power , Screw Terminals |
| Contactor Model | CWC07-16, CW07 |
| Current Range | 2.8-4A |
| Depth | 3.23" |
| Features | Adjustable Tripping Current, Phase-Loss Sensitivity, Tripping Class 10, Auxiliary Contacts 1 NO, 1 NC, Temperature Compensation From -40F to +1400F, Hand/Auto/Reset Button |
| For Use With | CWC07 Through CWC016 Series Miniature Contactors |
| For Use With Model Number | CWC07-CWC016 |
| Full Load Amperage Range | 2.8-4A |
| Fuse Type | gL/gG |
| Gross Weight | 0.375 lbs. |
| Height | 2.83" |
| Max Fuse Amps | 15A |
| Max Setting Range Amps | 4A |
| Max. Fuse (type 2 Coordination) | 10 |
| Max. Operating Frequency | 15 Hz |
| Min. Setting Range Amps | 2.8A |
| Mounting Configuration | 1D |
| Mounting Type | Direct |
| Number Of Poles | 3 |
| Operation Type | Bi-Metallic |
| Phase Loss Sensitive | Yes |
| Poles | 3 |
| Rated Impulse Withstand Voltage Uimp | 6 kV |
| Rated Insulation Voltage | 690V |
| Rated Operational Frequency | 25-400 Hz |
| Relay Type | Thermal Overload |
| Reset | Local |
| Reset Type | Automatic, Manual |
| Series | RW17-1D Series |
| Short Circuit Protection With Fuses (gl/gg) | 6A |
| Suitable For Use With Dc Loads | Yes |
| Trip Class | Class 10 |
| Width | 1.77" |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 3.28 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 4.83 |
| Country of Origin | BR |
Product Variants
| Product | Model | Number Of Poles | Trip Class | Current Range | Height | Depth | Reset Type | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
RW27-2D3-D018 | 3 | Class 10 | 1.2-1.8A | 2.83" | 3.23" | - | - | €60.30 | |
 |
RW27-2D3-U040 | 3 | Class 10 | 32-40A | 2.83" | 3.23" | - | - | - | RFQ
|
 |
RW27-2D2-U017 | 2 | - | 11-17A | 2.83" | 3.23" | - | - | €76.73 | |
 |
RW27-2D3-U004 | 3 | Class 10 | 2.8-4A | 2.83" | 3.23" | - | - | €60.30 | |
 |
RW27-2D3-D125 | 3 | Class 10 | 8-12.5A | 2.83" | 3.23" | - | - | €60.30 | |
|
RW27-2D2-U032 | 2 | - | 22-32A | 2.83" | 3.23" | - | - | €76.73 | |
 |
RW27-2D3-U032 | 3 | Class 10 | 22-32A | 2.83" | 3.23" | - | - | €60.30 |
