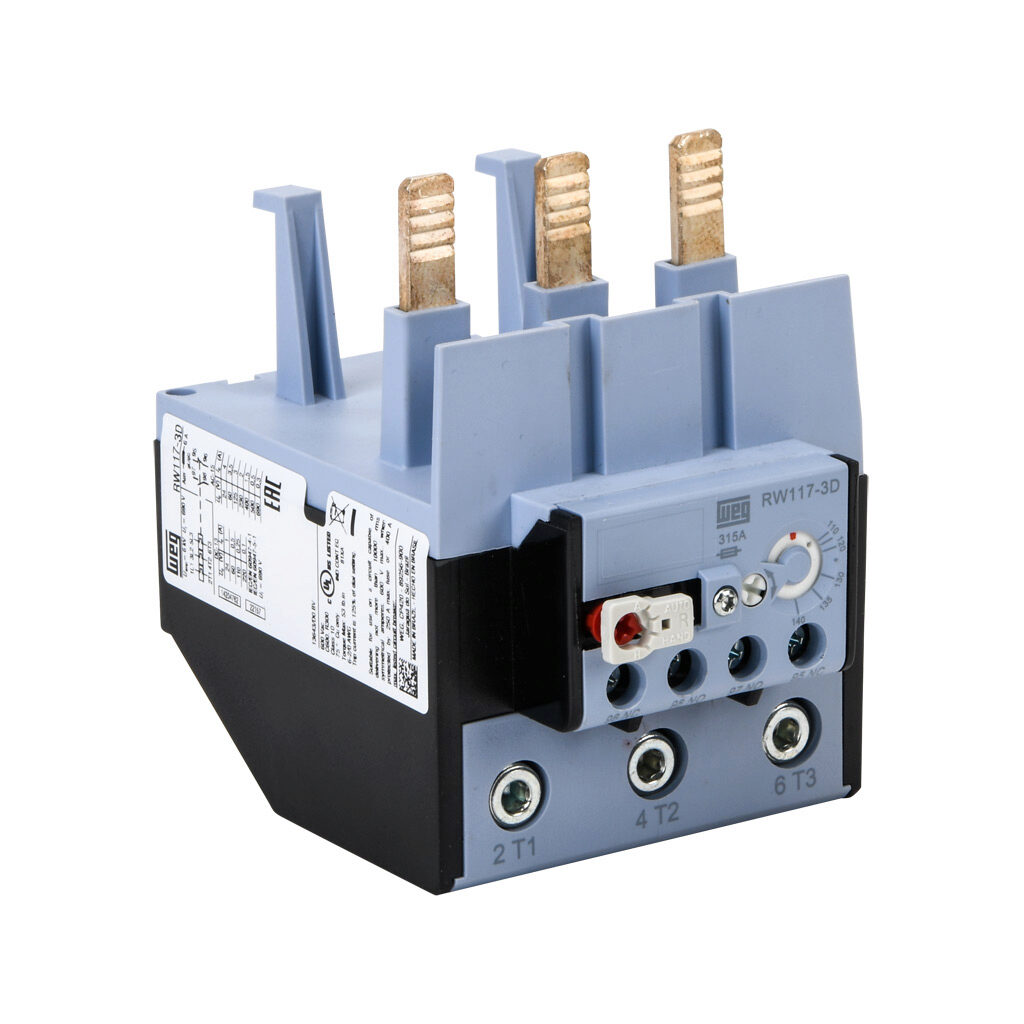

WEG RW117-3D3-U140 14204762 Thermal Overload Relay, 110-140A Adjustable, Bi-Metallic
Get it by Tuesday, Aug 18
€315.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Overload Relay |
| Amps | 110-140A |
| Auxiliary Contacts | NO/NC |
| Connection Type | Direct Mount Power |
| Contactor Model | CWB95-125 |
| Degree Of Protection - Auxiliary Terminals | IP20 |
| Degree Of Protection - Main Terminals | IP10 |
| Depth | 3.9" |
| For Use With | CWB95 to CWB125 Series Contactors |
| Full Load Amps | 110-140A |
| Height | 100 mm |
| Max. Fuse (type 2 Coordination) | 250gl/Gg |
| Max. Operating Frequency | 15 ops./h |
| Mounting Configuration | 3 D |
| Mounting Type | Direct |
| No. Of Poles | 3 |
| Operation Type | Bi-Metallic |
| Phase Loss Sensitive | Yes |
| Product Datasheet | weg-bf117-3d.pdf |
| Rated Impulse Withstand Voltage | 6 kV |
| Rated Insulation Voltage Ui | 690V |
| Rated Insulation Voltage Ui (acc. To Ul) | 600V |
| Rated Operational Frequency | 25-400 Hz |
| Reference | RW117 |
| Relay Type | Thermal Overload |
| Reset | Local |
| Series | RW117-3D Series |
| Short Circuit Protection With Fuses | 6gL/gG |
| Suitable For Use With Dc Loads | Yes |
| Trip Class | Class 10 |
| Width | 75 mm |
Shipping Info:
| Ship weight (kg) | 0.52 |
| Ship height (cm) | 10.01 |
| Ship length (cm) | 9.91 |
| Ship width (cm) | 7.49 |
| Country of Origin | BR |
Documentation:
