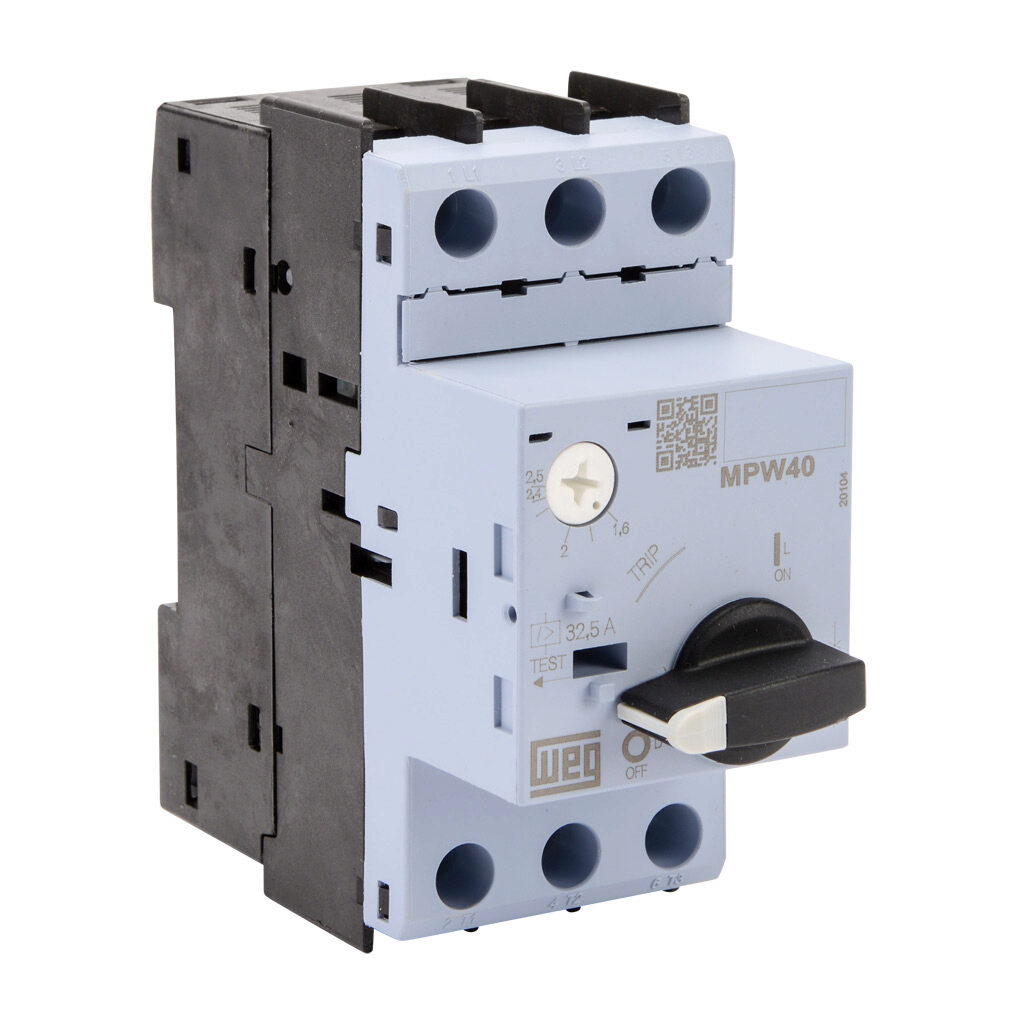

WEG MPW40-3-D025 12428110 Manual Motor Protector, Rotary, 2.5A, Thermal Overload, 1.6-2.5A Adjustable
Get it by Friday, Aug 14
€115.20 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Magnetic Motor Starter |
| Actuator Type | Rotary |
| Amps | 1.6-2.5A , 2.5A |
| Connection Type | Screw Terminal |
| Degree Of Protection | IP20 |
| Depth | 3.86" |
| Enclosure Type | Open |
| Frame Size | 45 mm |
| Full Load Amps | 1.6-2.5A |
| Gross Weight | 0.775 lbs. |
| Height | 3.82" |
| Hp | 1 1/2 hp |
| Hp 230/240v 1ph | 167/1000 hp |
| Hp 230/240v 3ph | 1/2 hp |
| Hp 460/480v 3ph | 1 1/2 hp |
| Instantaneous Trip Rating | 32.5A |
| Max. Amps | 40A |
| Max. Operating Frequency | 15 Hz |
| Mounting | DIN Rail |
| Mounting Size | 35 mm |
| No. Of Poles | 3 |
| Operating Amps | 40A |
| Operation Type | Bi-Metallic |
| Overload Protection | Yes |
| Phase | Not Rated |
| Phase Failure Sensitivity | Yes |
| Phase Loss Sensitive | Yes |
| Poles | 3 |
| Power Poles | NO |
| Rated Impulse Withstand Voltage Uimp | 6 kV |
| Rated Insulation Voltage | 690V |
| Rated Insulation Voltage Ui | 690V |
| Rated Operational Frequency | 50/60 Hz |
| Rated Operational Voltage | 690V |
| Reference | MPW40 |
| Relay Type | Thermal Overload |
| Sccr Rating | 65 kA |
| Series | MPW40 Series |
| Setting Range For Thermal Release | 1.6-2.5A |
| Short-circuit Release | 13 Times Lemax |
| Starter Type | Manual |
| Terminal Type | Screw |
| Trip Class | Class 10 |
| Trip Indication | Yes |
| Trip Test | Yes |
| Tripping Class | Class 10 |
| Utilization Category - Iec60947-2 (motor Starter Protector/circuit Breaker) | A |
| Voltage | 600V AC |
| Width | 1.77" |
Shipping Info:
| Ship weight (kg) | 0.35 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 29.46 |
| Ship width (cm) | 16.51 |
| Country of Origin | BR |
Product Variants
| Product | Model | Height | Amps | Depth | Max. Amps | Rated Insulation Voltage Ui | Setting Range For Thermal Release | Terminal Type | Tripping Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MPW40-3-U025 | 3.82" | 25A | 3.86" | 40A | 690V | 20-25A | Screw | Class 10 | €162.00 | |
 |

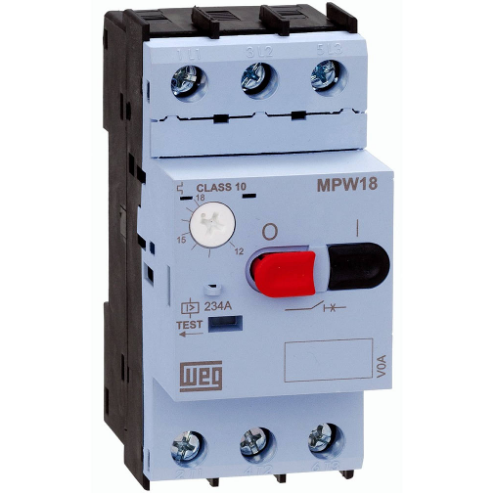

MPW18-3-U016 | 3.54" | 10-16A | 3.03" | 18A | 690V | 10-16A | Screw | Class 10 | €86.63 | |
 |
MPW40-3-D063 | 3.82" | 6.3A | 3.86" | 40A | 690V | 4-6.3A | Screw | Class 10 | €115.20 | |
 |

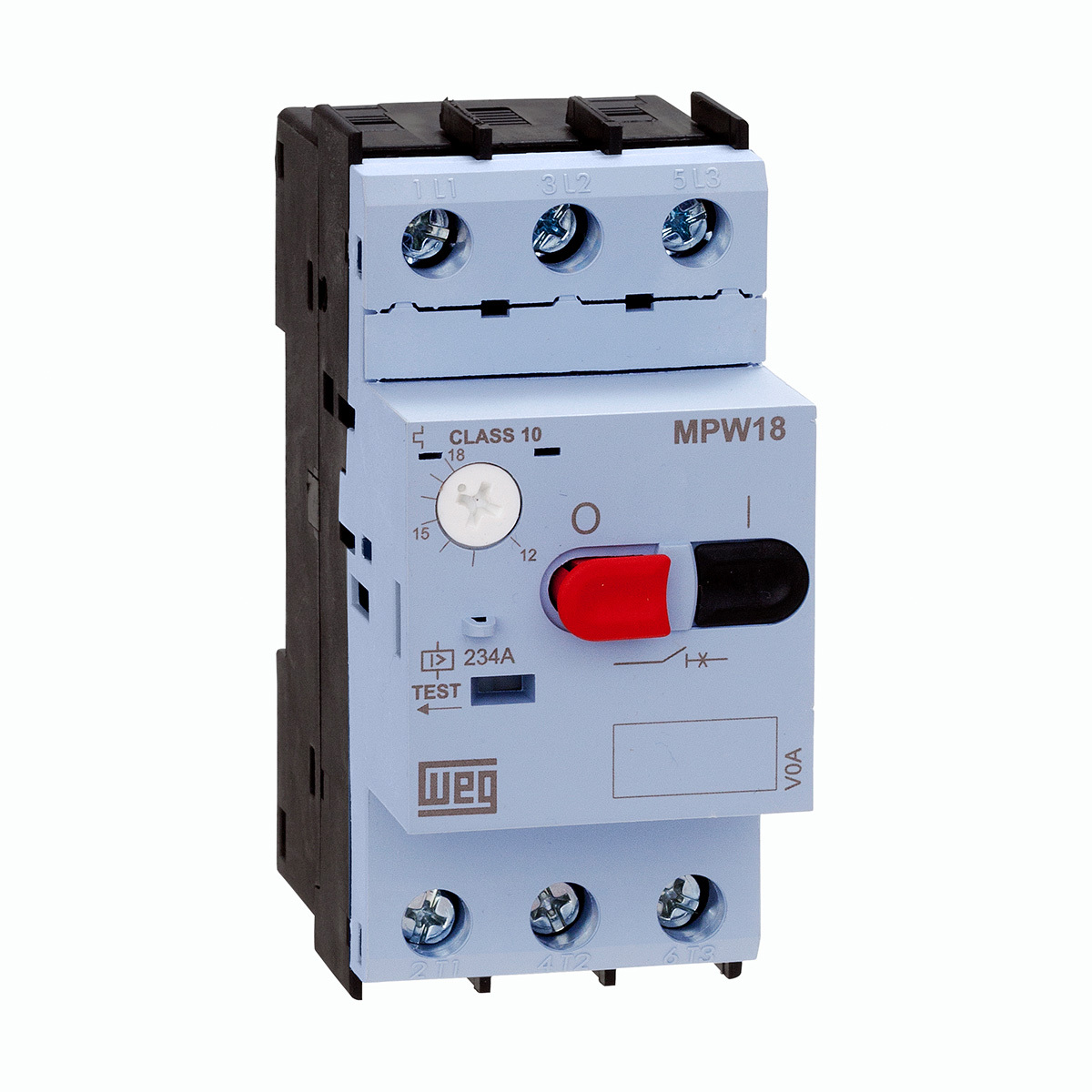

MPW18-3-U004 | 3.54" | 2.5-4A | 3.03" | 18A | 690V | 2.5-4A | Screw | Class 10 | €72.77 | |
 |

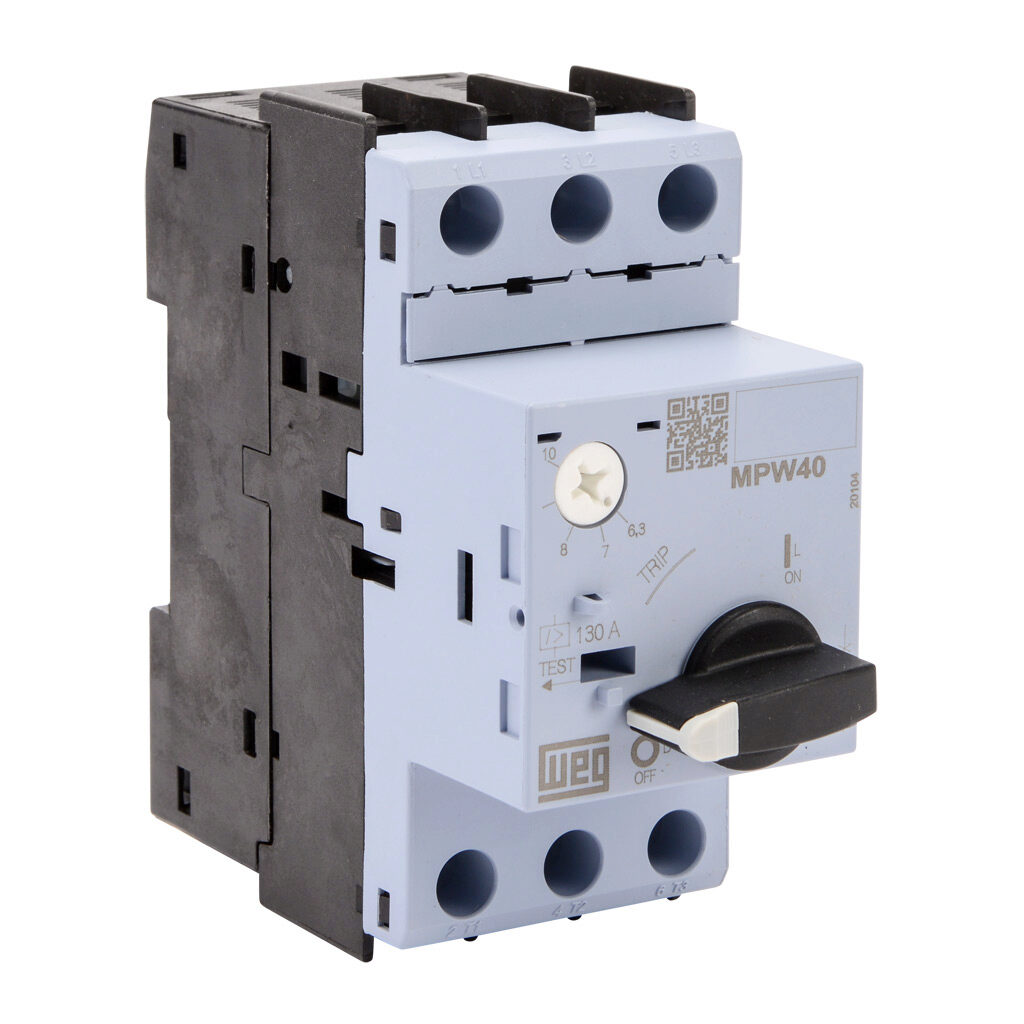

MPW40-3-U010 | 3.82" | 10A | 3.86" | 40A | 690V | 6.3-10A | Screw | Class 10 | - | RFQ
|
|
MPW18-3-C025 | 3.54" | 0.16-0.25A | 3.03" | 18A | 690V | 0.16-0.25A | Screw | Class 10 | €67.22 | |
 |

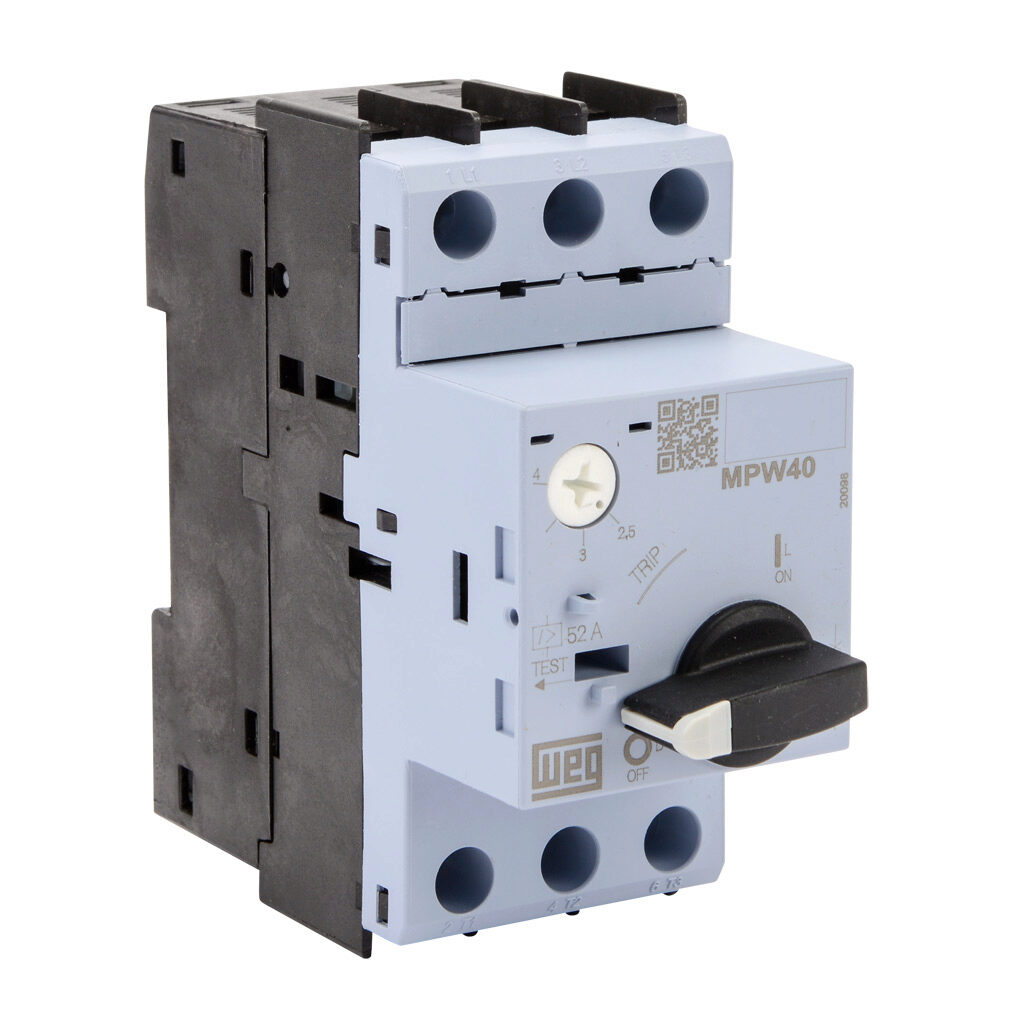

MPW40-3-U004 | 97 mm | 4A | 3.86" | 40A | 690V | 2.5-4A | Screw | 10 | €115.20 |
