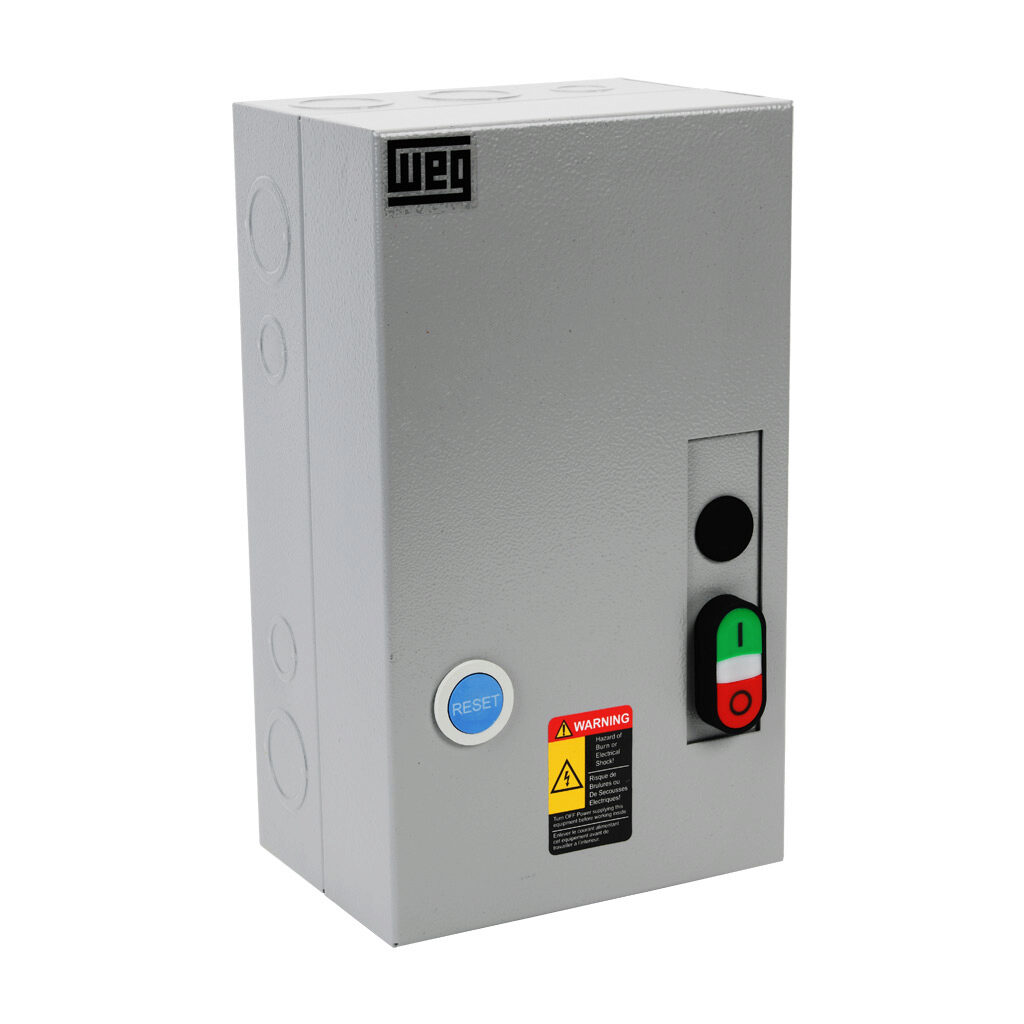

WEG ESW-B80V24A-R75 14762076 Enclosed Starter, 3 Phase, 80A Rated, 63-80 A Range, On/Off Control, Metallic Crate, 180-208V50HZ/208-240V60HZ
Get it by Friday, Apr 10
€572.40 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Motor Starter |
| Assembly Method (start Key) | Metallic Crate |
| Auxiliary Contacts | NO/NC |
| Coil Frequency | 50/60 Hz |
| Coil Voltage | 180-208/208-240V AC |
| Connection Type | Screw Terminal |
| Control Voltage | 180-208/208-240V |
| Enclosure Type | NEMA 1 |
| Frequency | 60/50 Hz |
| Full Load Amperage Range | 63-80A |
| Horsepower Rating | 50 hp |
| Includes | Start, Stop And Reset Pushbuttons |
| Mounting | Wall |
| Number Of Poles | 3 |
| Overload Relay | 63-80A |
| Overload Type | Bi-Metallic |
| Phase Loss Sensitive | Yes |
| Power Poles | NO |
| Product Datasheet | weg-esw-b12d15a-r30.pdf |
| Rated Current | 80A |
| Rated Operational Voltage | 600V |
| Sccr Rating | 5 kA |
| Series | ESW Series |
| Start Type | Direct Three Phase |
| Starter Type | Non Combination |
| Trip Class | Class 10 |
| Voltage Rating | 600V AC |
Shipping Info:
| Ship weight (kg) | 4.72 |
| Country of Origin | BR |
