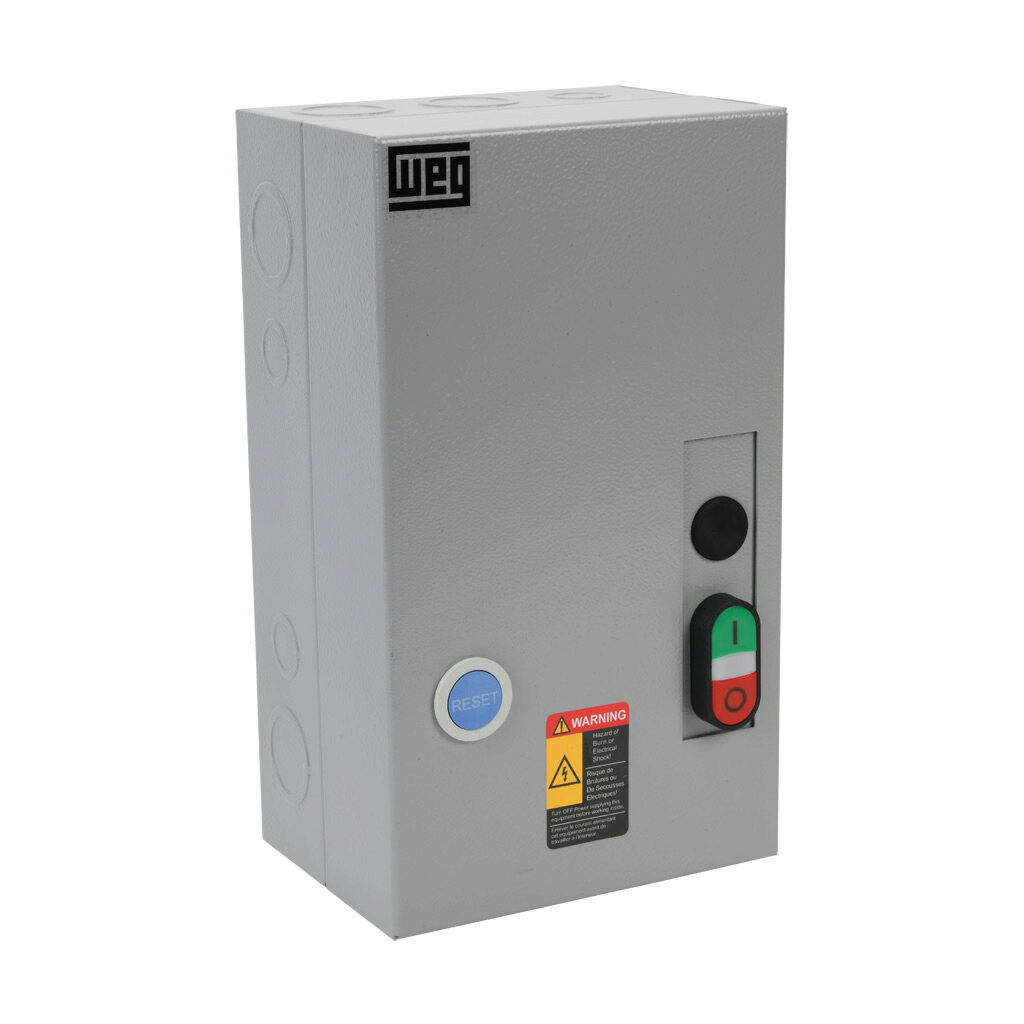

WEG ESW-B80D15A-R75 14641355 Enclosed Starter, 3 Phase, 80A Rated, 63-80 A Range, On/Off Control, Metallic Crate, 120V50/60HZ
Item: CV6UAMModel: ESW-B80D15A-R75Cross Ref: 14641355
7 In Stock
Ships within 2 days via
€476.59 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Motor Starter |
| Amps | 80A |
| Assembly Method (start Key) | Metallic Crate |
| Auxiliary Contacts | NO/NC |
| Button Color | Not Specified |
| Button Type | Unspecified |
| Coil Frequency | 50/60 Hz |
| Coil Voltage | 120V AC |
| Connection Type | Screw Terminal |
| Control Devices | A On Off Button |
| Control Voltage | 120V |
| Degree Of Protection | NEMA 1 |
| Enclosure Type | NEMA 1 |
| Frequency | 60/50 Hz |
| Full Load Amps | 63-80A |
| Hp | 50 hp |
| Included | Start, Stop And Reset Pushbuttons |
| Maximum Power Rating | Not Applicable |
| Measuring Tool And Accessories | Not Applicable |
| Mounting | Wall |
| No. Of Phase | 3 |
| No. Of Poles | 3 |
| Over Load | 63-80A |
| Overload Relay | 63-80A |
| Overload Type | Bi-Metallic |
| Phase Loss Sensitive | Yes |
| Power Poles | NO |
| Product Datasheet | weg-esw-b12d15a-r30.pdf |
| Rated Amps (ac-3) | 80A (CWB80) |
| Rated Operational Voltage | 600V |
| Reference | ESW |
| Sccr Rating | 5 kA |
| Series | ESW Series |
| Start Type | Direct Three Phase |
| Starter Type | Non Combination |
| Starters Complements | Does Not Contain |
| Trip Class | Class 10 |
| Voltage | 600V AC |
Shipping Info:
| Ship weight (kg) | 4.55 |
| Country of Origin | BR |
