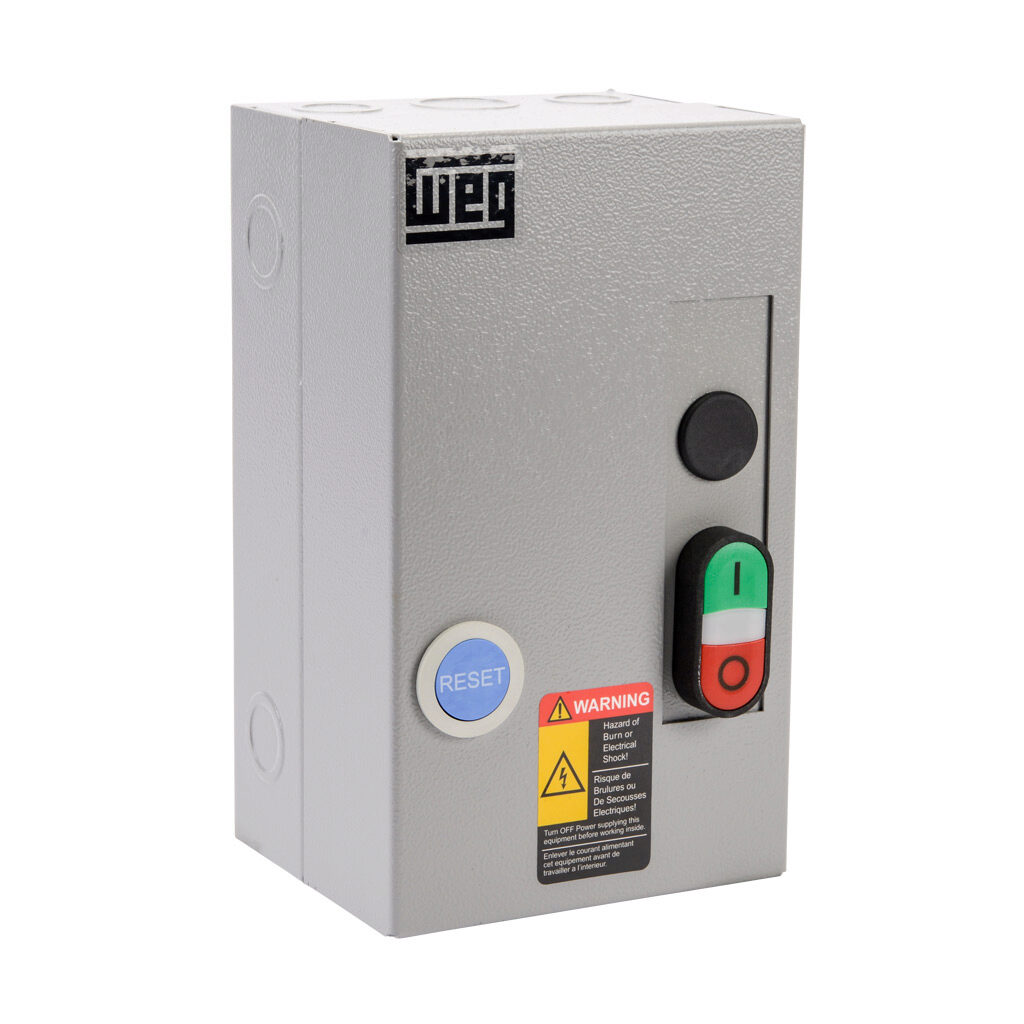

WEG ESW-B38D15A-R35 14308808 Enclosed Starter, 3 Phase, 38A Rated, 25-40 A Range, On/Off Control, Metallic Crate, 120V50/60HZ
Get it by Thursday, Aug 20
€401.40 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Motor Starter |
| Amps | 38A |
| Assembly Method (start Key) | Metallic Crate |
| Auxiliary Contacts | NO/NC |
| Button Color | Not Specified |
| Button Type | Unspecified |
| Coil Frequency | 50/60 Hz |
| Coil Voltage | 120V AC |
| Connection Type | Screw Terminal |
| Control Devices | On/Off Button |
| Control Voltage | 120V |
| Degree Of Protection | NEMA 1 |
| Enclosure Type | NEMA 1 |
| Frequency | 60/50 Hz |
| Full Load Amps | 32-40A |
| Hp | 10 hp, 25 hp , 25 hp |
| Included | Start, Stop And Reset Pushbuttons |
| Maximum Power Rating | Not Applicable |
| Measuring Tool And Accessories | Not Applicable |
| Mounting | Wall |
| No. Of Phase | 3 |
| No. Of Poles | 3 |
| Over Load | 25-40A |
| Overload Relay | 25-40A |
| Overload Type | Bi-Metallic |
| Phase | 3 |
| Phase Loss Sensitive | Yes |
| Power Poles | NO |
| Product Datasheet | weg-esw-b12d15a-r30.pdf |
| Rated Amps (ac-3) | 38A |
| Rated Operational Voltage | 600V |
| Reference | ESW |
| Sccr Rating | 5 kA |
| Series | ESW Series |
| Start Type | Direct Three Phase |
| Starter Type | Non Combination |
| Starters Complements | Does Not Contain |
| Trip Class | Class 10 |
| Voltage | 200/230/460/575V AC , 600V AC |
Shipping Info:
| Ship weight (kg) | 2.66 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 13.97 |
| Country of Origin | BR |
Documentation:
Product Variants
| Model | Coil Voltage | Type | Amps | Start Type | Voltage | Series | Rated Amps (ac-3) | Control Devices | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| ESW-18V04A-R32 | - | - | - | - | 200/230/460/575V AC | - | - | - | €214.73 | |
| ESW-32V04A-R34 | - | - | - | - | 200/230/460/575V AC | - | - | - | €285.84 | |
| ESW-25V04A-R33 | - | - | - | - | 200/230/460V AC | - | - | - | €264.75 | |
| ESW-9V04A-R28 | - | - | - | - | 200/230/460V AC | - | - | - | €187.11 | |
| ESW-40V04A-R35 | - | - | - | - | 200/230/460V AC | - | - | - | €330.93 | |
| ESW-32V18E-R34 | 120V | Reset Only | - | - | 200/230/460/575V AC | - | - | - | €218.30 | |
| ESW-9V47E-R25 | 480V | Reset Only | - | - | 200/230/460/575V AC | - | - | - | €139.89 |
